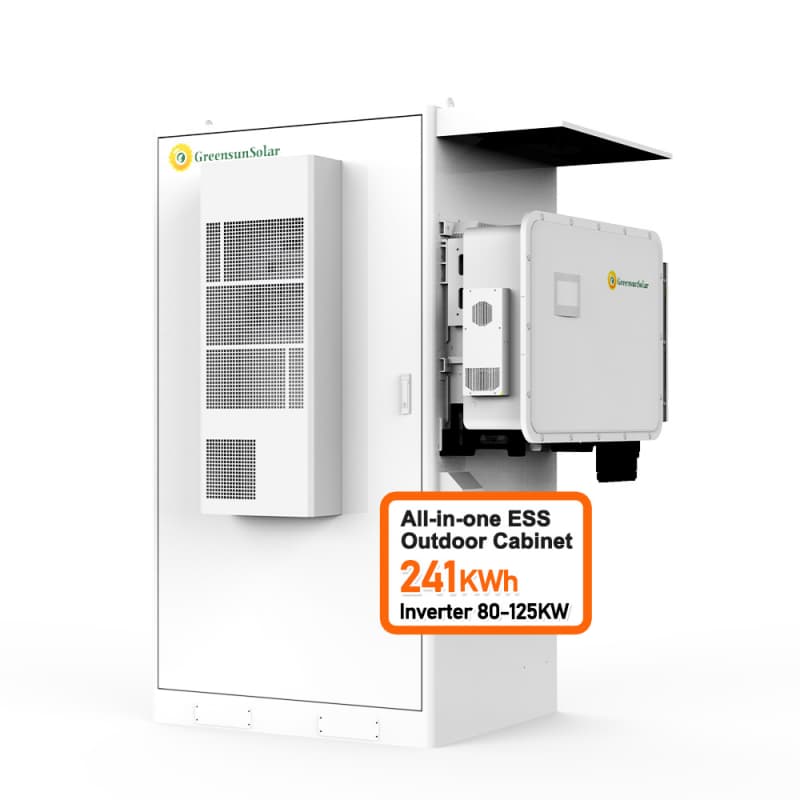

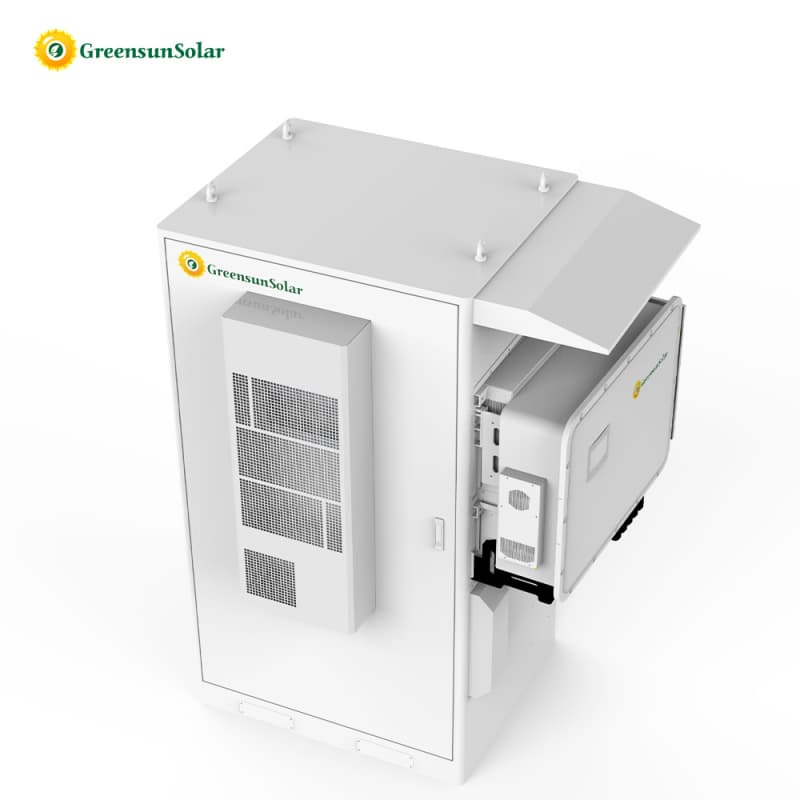

Greensun All in one outdoor cabinet
Item No :
241KWH BESS Outdoor all in one cabinetOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
According to Capacity241KWH Lithium Battery BESS All In One Cabinet for energy storage system
241KWH Lithium Battery BESS All In One Cabinet Datasheet for Review
| Model | GCB-E240 | ||
|
Cell Chemistry
|
LiFePO4
|
||
|
Module Energy (kWh)
|
16.076
|
||
|
Module Nominal Voltage (V)
|
51.2
|
||
|
Module Capacity (Ah)
|
314 | ||
|
Battery Module Qty In Series
|
15 | ||
|
System Nominal Voltage ( V )
|
768
|
||
|
System Operating Voltage ( V )
|
672V~852V
|
||
|
System Energy (kWh)
|
241.15
|
||
|
System Usable Energy (kWh) 90%
|
217.03 | ||
|
Charge/Discharge
Current(A)
|
157A | ||
|
Dimension (W*D*H, mm)
|
1150*1350*2420mm
|
||
|
Weight Approximate (kg)
|
3000kg
|
||
|
Installation Location
|
Floor-Mounted
|
||
|
Cycle Life
|
25±2℃, 0.5C/0.5C, DOD80%≥6000
|
||
|
Optional inverter specifications (for example)
|
GCB-E240-80KW | GCB-E240-100KW | GCB-E240-125KW |
|
Nominal Output Power / UPS Power
|
80KW | 100KW | 125KW |
|
AC Output Frequency and Voltage
|
50Hz/60Hz; 220V/380V,230V/400V
|
||
|
Grid Type
|
3L/N/PE
|
||
|
Number of Parallel ( Off-grid )
|
10
|
||
|
Battery Operating Voltage ( V )
|
672V~852V
|
||
|
Max. PV Input Power
|
160kw
|
200kw
|
250kw
|
|
Max. PV Input Current ( A )
|
10 X 42A
|
||
|
Rated PV Input Voltage ( Vdc )
|
1000
|
||
|
Start Up DC Voltage ( Vdc )
|
180
|
||
|
MPPT Voltage Range ( Vdc )
|
150-950V
|
||
|
Max. PV Short-circuit Current ( A )
|
10 X 60A
|
||
|
Number of MPPT
|
10/20
|
||
|
Inverter Communication
|
CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN
|
||

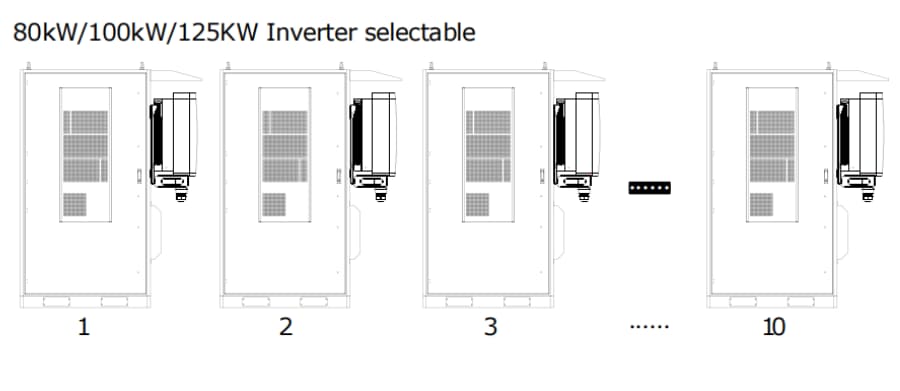

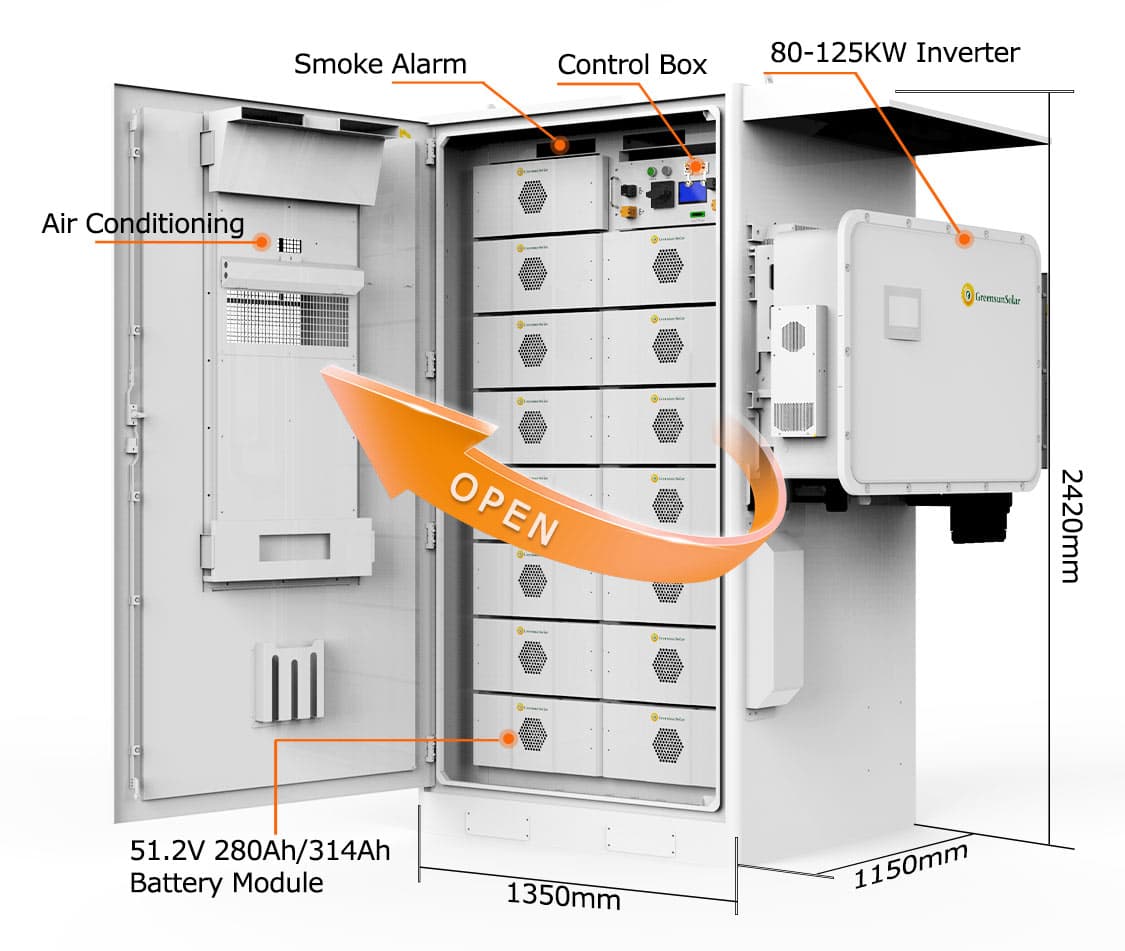

System Composition&Expansion

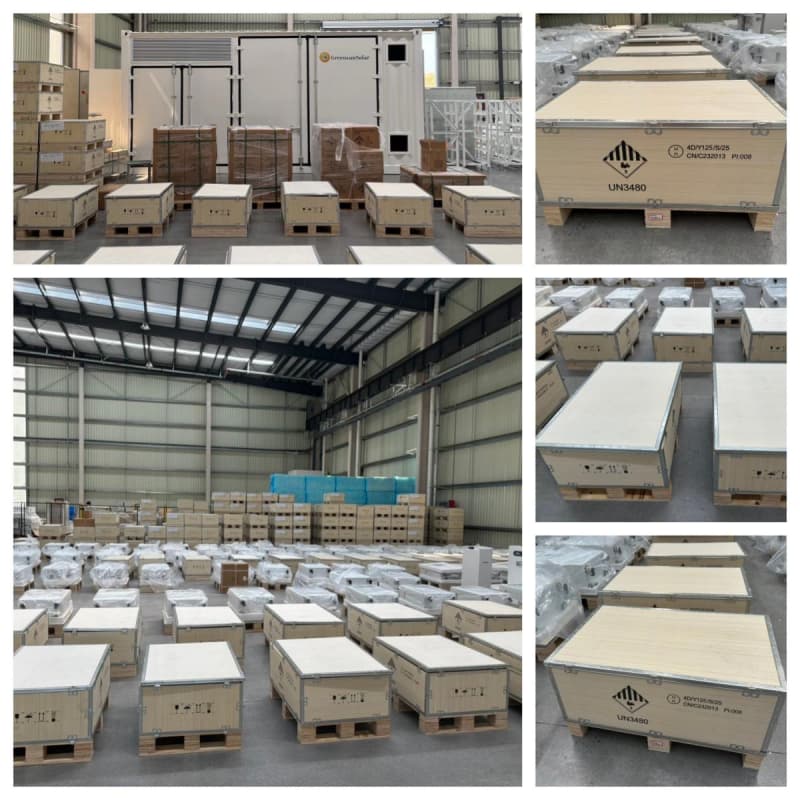

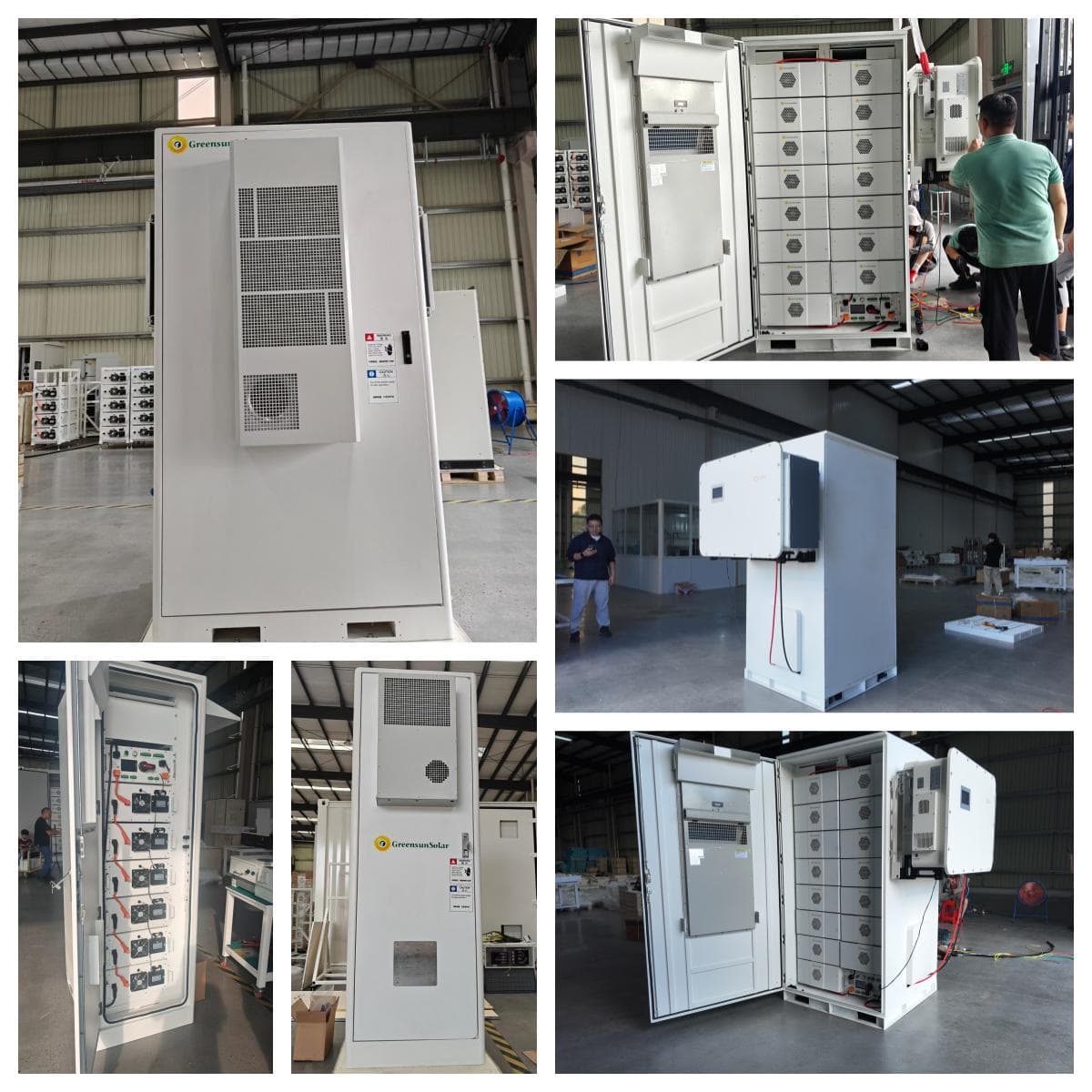

Factory&Products
Greensun All in one outdoor cabinet Lithium iron phosphate ( LFP ) batteries, battery packs and systems all use aerosol fire suppression solutions EMS, hybrid inverter and BMS integration technology Power supply redundancy design Support for black start function, off-grid operation Supports up to 10 sets in parallel
Greensun All in one outdoor cabinet Lithium iron phosphate ( LFP ) batteries, battery packs and systems all use aerosol fire suppression solutions EMS, hybrid inverter and BMS integration technology Power supply redundancy design Support for black start function, off-grid operation Supports up to 10 sets in parallel
