Brand :
Greensun Solar GHR-314Product Name :

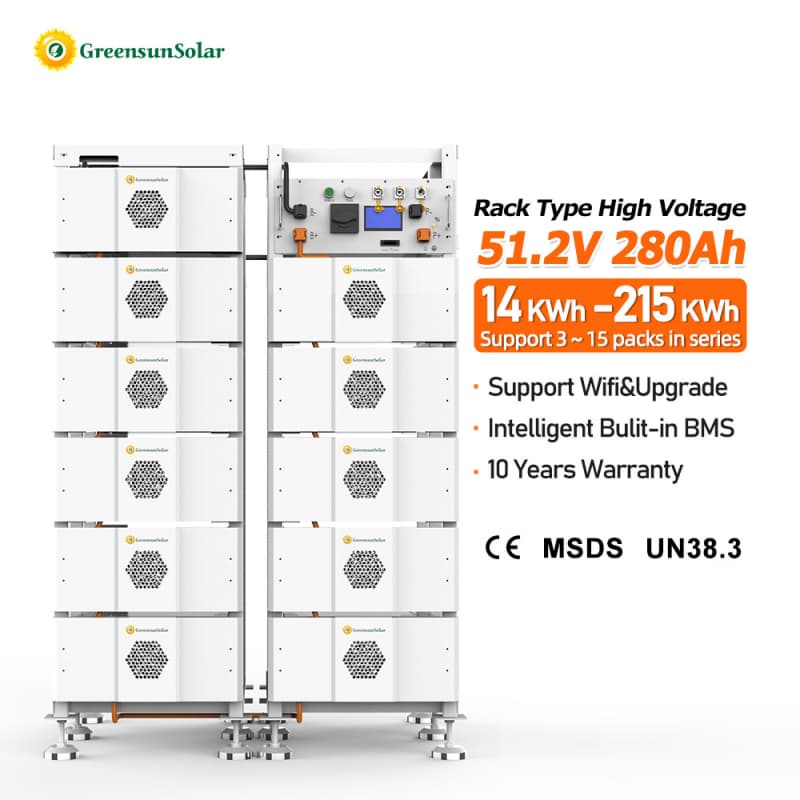

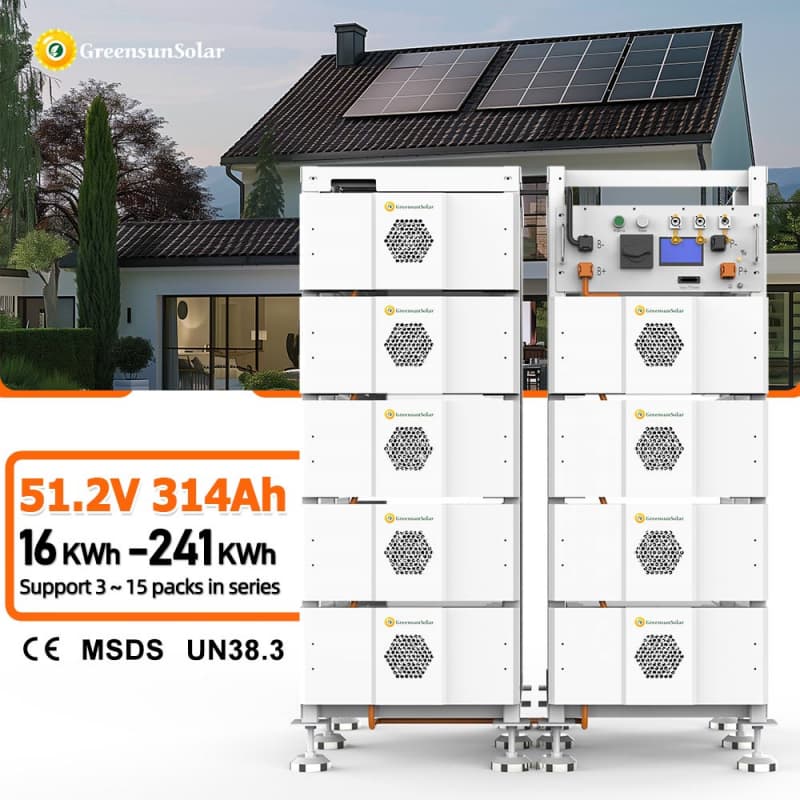

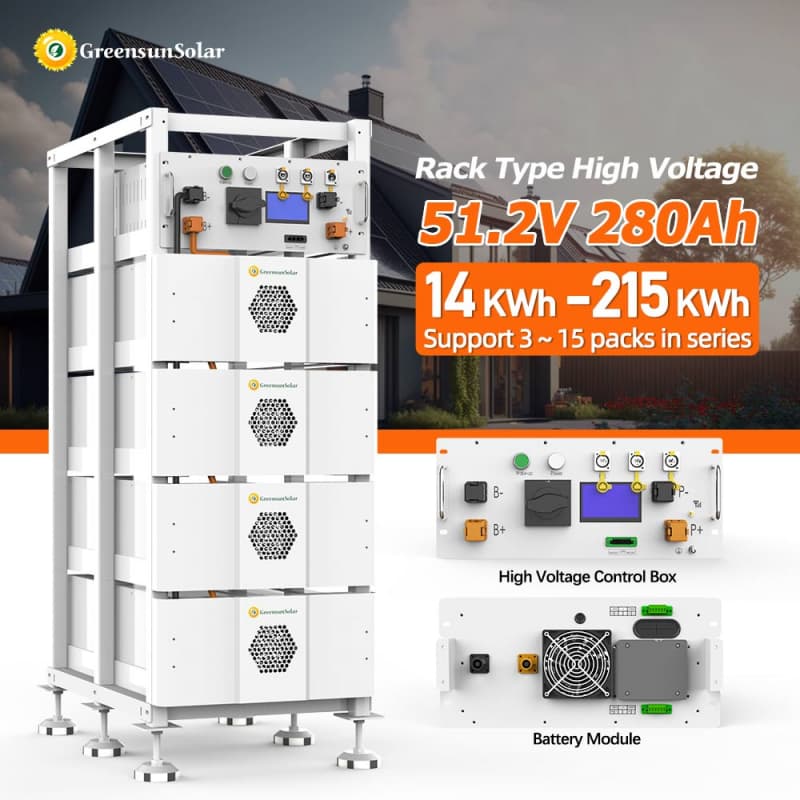

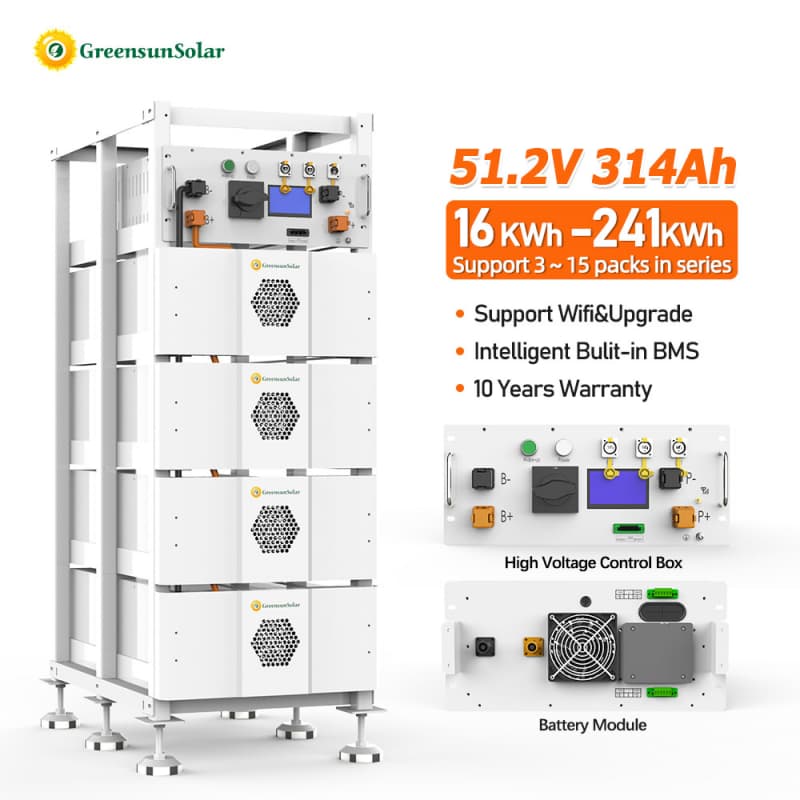

High Voltage 280AH 314AH rack mounted battery systemNominal Voltage :
51.2VNominal Capacity :
280Ah/314AhCell Type :
REPT,EVE, Grade A Lifepo4 battery cellsCycle Life :
DOD80%≥6000BMS :
integrated smart BMSCommunication :
CAN/RS485Warranty :
10 yearsCertification :

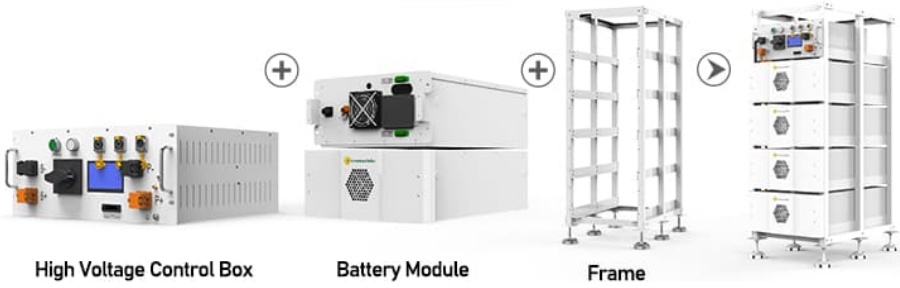

CE/UN38.3/MSDSGreensun High Voltage Lithium Battery System
BMS WIFI remote monitoring
High Voltage 280Ah 314Ah Battery Datasheet for Review
|
Battery Module Model
|
GHR-280
|
GHR-314
|
||||
|
Cell Chemistry
|
LiFePO4
|
|||||
|
Module Energy (kWh)
|
14.336
|
16.076
|
||||
|
Module Nominal Voltage (V)
|
51.2 | |||||
|
Module Capacity (Ah)
|
280 | 314 | ||||
| Multiple capacity options (for example) |
GHR-280-E186
|
GHR-280-E200 | GHR-280-E215 | GHR-314-E209 | GHR-314-E225 | GHR-314-E241 |
|
Battery Module Qty In Series ( Optional )
|
13 | 14 | 15 | 13 | 14 | 15 |
|
System Nominal Voltage (V)
|
665.6 | 716.8 | 768 | 665.6 | 716.8 | 768 |
|
System Energy (kWh)
|
186.37 | 200.70 | 215.04 | 209 | 225.08 | 241.15 |
|
Charge/Discharge
Current(A)
|
140A | 157A | ||||
|
Dimension (W*D*H, mm)
|
1184*838*1992
|
1184*838*2248
|
1184*838*2248
|
1184*838*1992
|
1184*838*2248
|
1184*838*2248
|
|
Weight Approximate (kg)
|
1621kg
|
1753kg
|
1865kg
|
1647kg
|
1781kg
|
1895kg
|
|
Installation Location
|
Rack Mounting
|
|||||
|
Storage Temperature (°C)
|
0~35°C
|
|||||
|
Recommend Depth of Discharge
|
90%
|
|||||
|
Cycle Life
|
25±2℃, 0.5C/0.5C, DOD80%≥6000
|
|||||
|
Certification
|
CE/UN38.3/MSDS
|
|||||
LiFePO4 Batteries with safety performance and long cycle life Intelligent BMS Support aerosol fifire extinguishing Support up to 140A current output

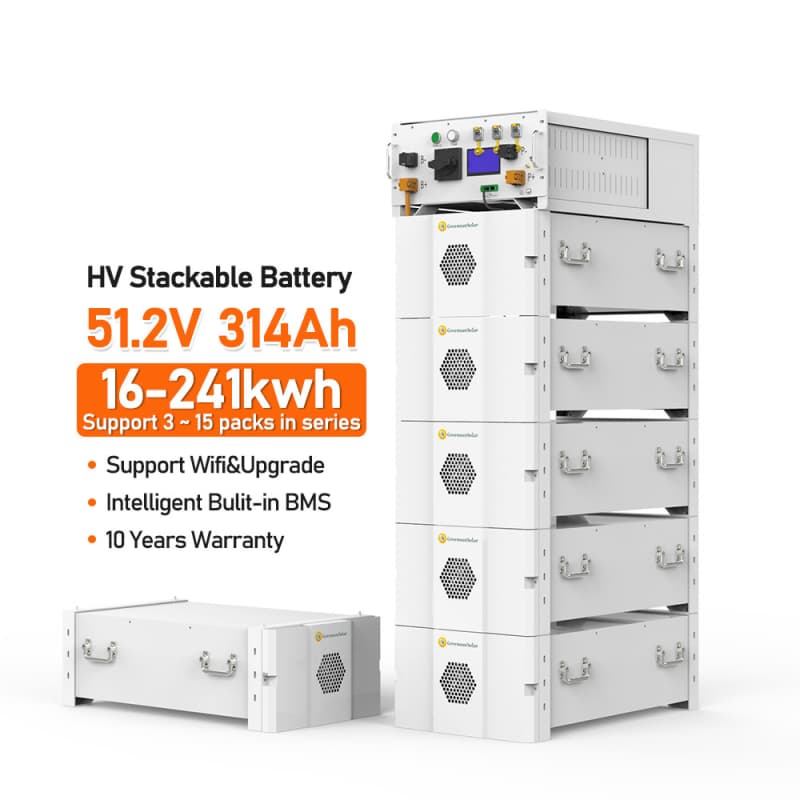

LiFePO4 Batteries with safety performance and long Intelligent BMS Suppor 3-16 packs in series as one cluster, max 5 clusters in parallel Support Wifi&Upgrade Wi-Fi module, real-time data monitoring Support USB upgrade, remote upgrade Economical&Convenient Stackable design for easy installation and maintenance
Support 3-15 packs in series as one cluster, max 10 clusters in parallel Low self-discharge up to 6 months
Convenient installation: 19-inch embedded standard module, easy for installation and maintenance Safe and reliable: Uses LiFePO₄ cathode material with safety, long cycle life, low self-discharge (up to 6 months, no memory effect, good shallow charge/discharge performance), supports aerosol fire extinguishing Intelligent BMS: Provides over-discharge, over-charge, over-current, over-high/low temperature protection; automatically manages charge/discharge and balances cell voltage/current Flexible configuration: Multiple modules can be paralleled for capacity/power expansion Eco-friendly: Non-toxic, non-polluting Wide temperature range: -20°C to 55°C with excellent discharge and cycle performance
