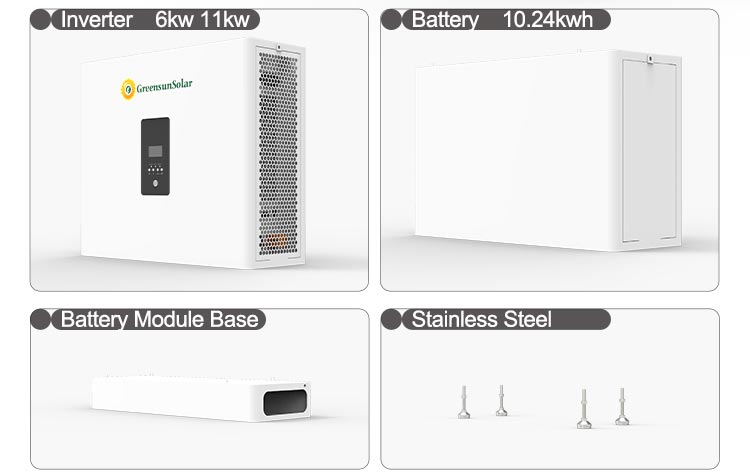

All-in-one solar and storage solution that integrates
the inverter, battery charger, UPS-level switching,
and battery enclosure into a pre-wired modular
Item No :
G-AIO-200-S6K/S11KOrder(MOQ) :
NegotiablePayment :
T/T, L/C at sight, Paypal, etcProduct Origin :
ChinaColor :
White or Optional ColorShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 daysWeight :
up to sizeGreensun Stacked Household Energy Storage All-in-one Machine G-AIO-200-S6K/S11K
|
Model
|
G-AIO-S6K
|
G-AIO-S11K
|
|
Input Sources
|
L+N+PE
|
|
|
Rated Input Voltage
|
220/230/240VAC
|
|
|
Voltage Range
|
90-280VAC±3V (APL Mode) 170-280VAC±3V (UPS Mode)
|
|
|
Frequency
|
50/60Hz (Auto Adaptive)
|
|
|
Rated Capacity
|
6200W
|
11000W
|
|
Output Voltage
|
220/230/240VAC±5%
|
|
|
Output Frequency
|
50/60Hz±0.1%
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Peak Power
|
12400W
|
22000W
|
|
PV Charging Mode
|
MPPT
|
MPPT Dual MPPT
|
|
Max PV Input Power
|
6200W
|
2*5500W
|
|
MPPT Tracking Range
|
120-500Vdc
|
90-500Vdc
|
|
Best Voltage
|
300-400V
|
300-400V
|
|
MAX.Charging Current
|
120A
|
150A
|
|
Model
|
G-AIO-200
|
|
|
Battery Chemistry
|
LiFePO4
|
|
|
Built-In Circuit Breaker
|
125A 2P
|
|
|
Nominal Voltage
|
51.2V
|
|
| Nominal Capacity |
200Ah
|
|
| Operating Voltage |
44.8~57.6V
|
|
| Battery Module Qty |
Optional
|
|
| Nominal Energy |
10.24Kwh
|
|
| Max. Continuous |
100
|
|
| Cycle Life |
≥6000 90%DOD
|
|
|
Mode
|
G-AIO-200-S6K
|
||
|
Inverter Power
|
6KW
|
6KW
|
6KW
|
|
Battery Module Qty
|
1
|
2 | 3 |
|
Battery Capacity
|
10.24kwh
|
20.48kwh
|
30.72kwh
|
|
Dimension L*W*H (Kickstand not included)
|
700*241.5*1140mm
|
700*1580*241.5mm
|
700*2020*241.5mm
|
|
Weight Approximate (kg)
|
134.6kg
|
226.6kg
|
318.6kg
|
|
Installation Method
|
Floor-Mounted
|
||
|
Operating Temperature (°C)
|
Charge : 0℃~55℃, Discharge : -10℃ ～ 55℃
|
||
|
Storage Temperature (°C)
|
-10~40°C
|
||
|
Relative Humidity (%)
|
5%-95%
|
||
|
Altitude (m)
|
＜3000m
|
||
|
Model
|
G-AIO-200-S11K
|
||
|
Inverter Power
|
11KW
|
11KW
|
11KW
|
|
Battery Module Qty
|
1 | 2 | 3 |
|
Battery Capacity
|
200 | 200 | 200 |
|
Dimension L*W*H (Kickstand not included)
|
700*241.5*1140mm
|
700*1580*241.5mm
|
700*2020*241.5mm
|
|
Weight Approximate (kg)
|
134.6kg
|
226.6kg
|
318.6kg
|
|
Installation Method
|
Floor-Mounted
|
||
|
Operating Temperature (°C)
|
Charge : 0℃~55℃, Discharge : -10℃ ～ 55℃
|
||
|
Storage Temperature (°C)
|
-10~40°C
|
||
|
Relative Humidity (%)
|
5%-95%
|
||
|
Altitude (m)
|
＜3000m
|
||

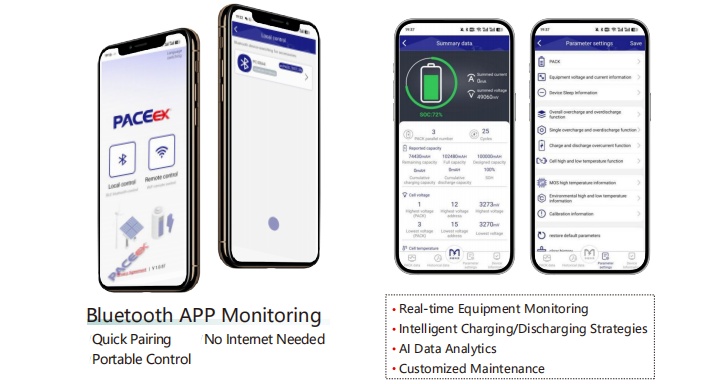

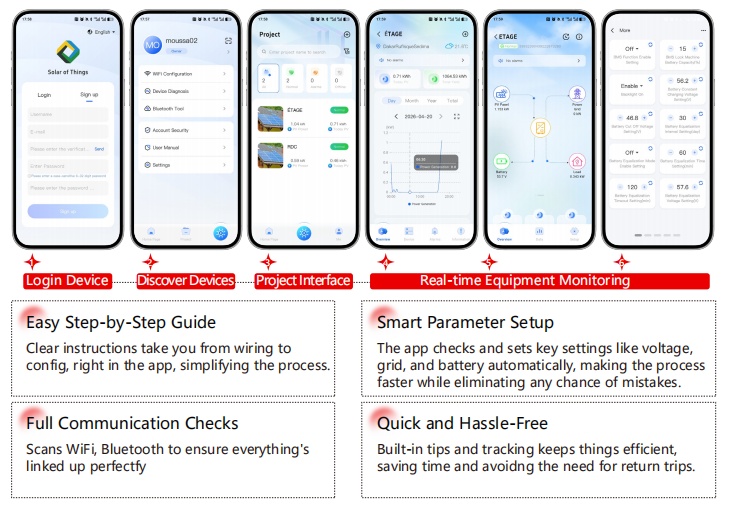

Intelligent monitoring software

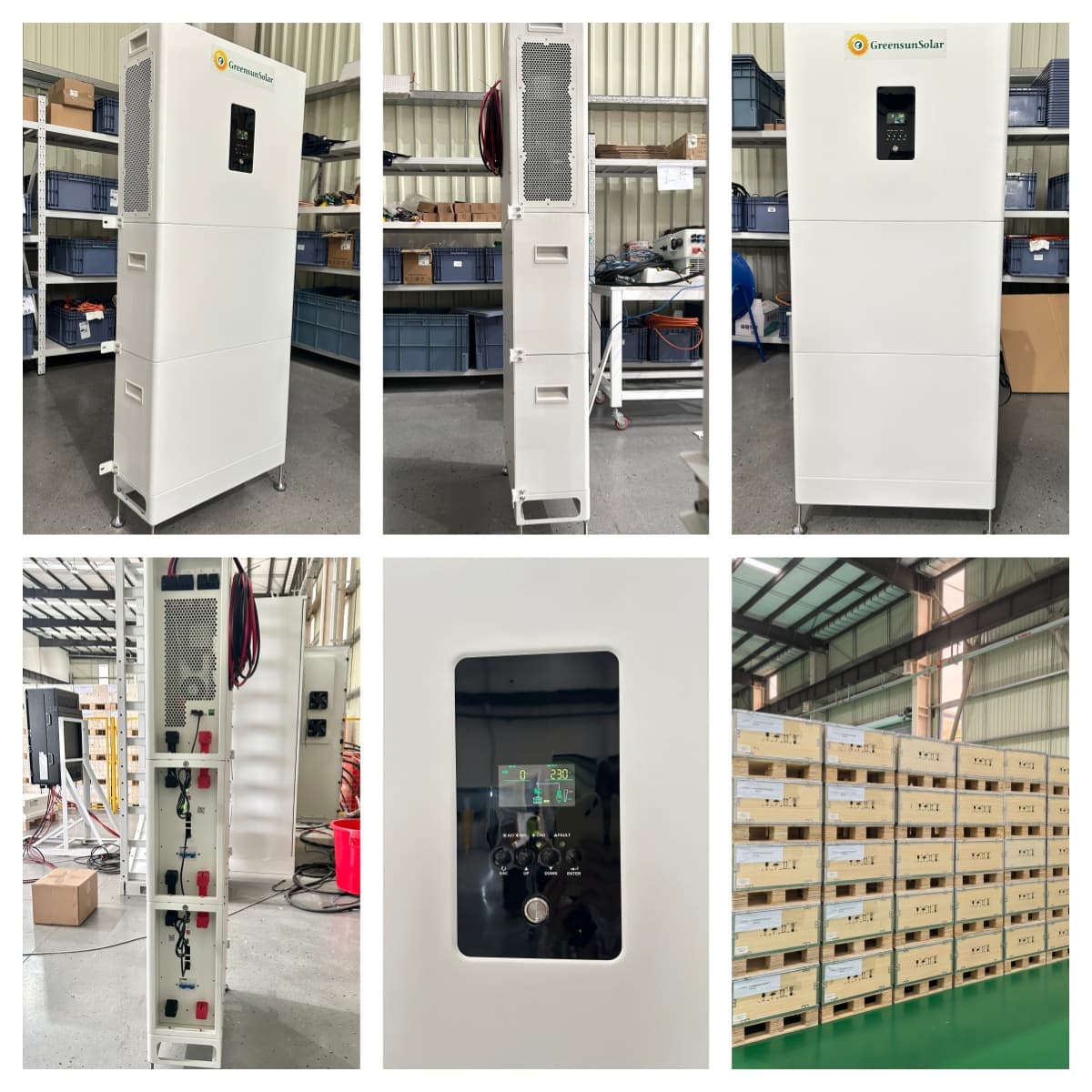

Showcase
In the photovoltaic energy storage sector, lithium batteries offer significant advantages over traditional lead-acid batteries.
Higher security, small size, light weight, fast charging speed.
The self-discharge rate is smaller and the energy density is higher.
Higher convenience and longer service life.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.
Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
