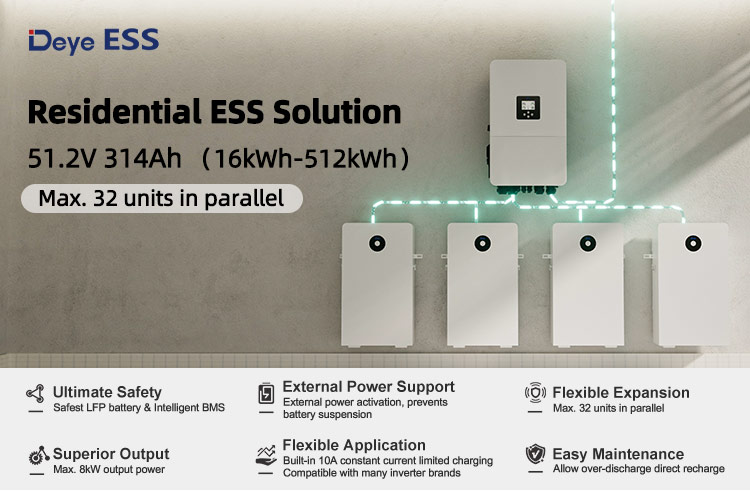

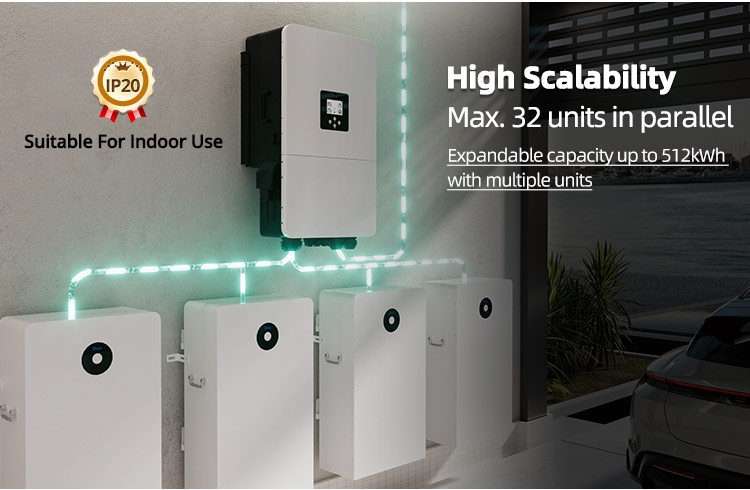

High Power Output: Delivers up to 8 kW with the ability to connect up to 32 units, scalable to 512 kWh
Long-lasting Battery Life: Utilizes LiFePO4 technology with over 6000 cycles, ensuring durability and longevity
Built-in Circuit Protection: Features a built-in circuit breaker for safe charging (160A) and discharging (160A)
Wide Operating Range: Capable of charging from 0℃ to 55℃ and discharging from -20℃ to 55℃
Remote Management: Supports remote monitoring and firmware upgrades via Deye inverter

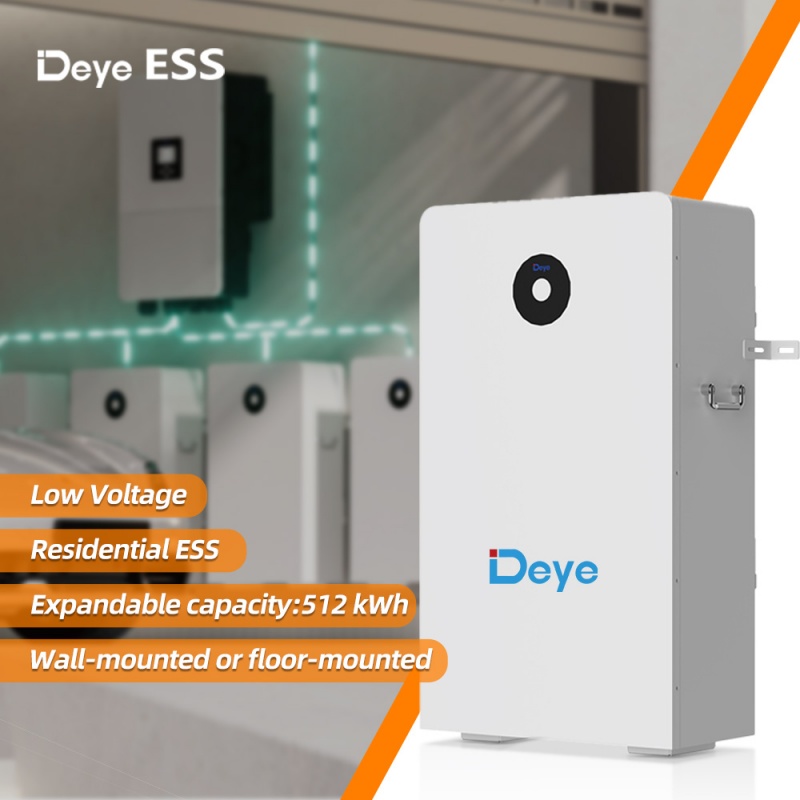

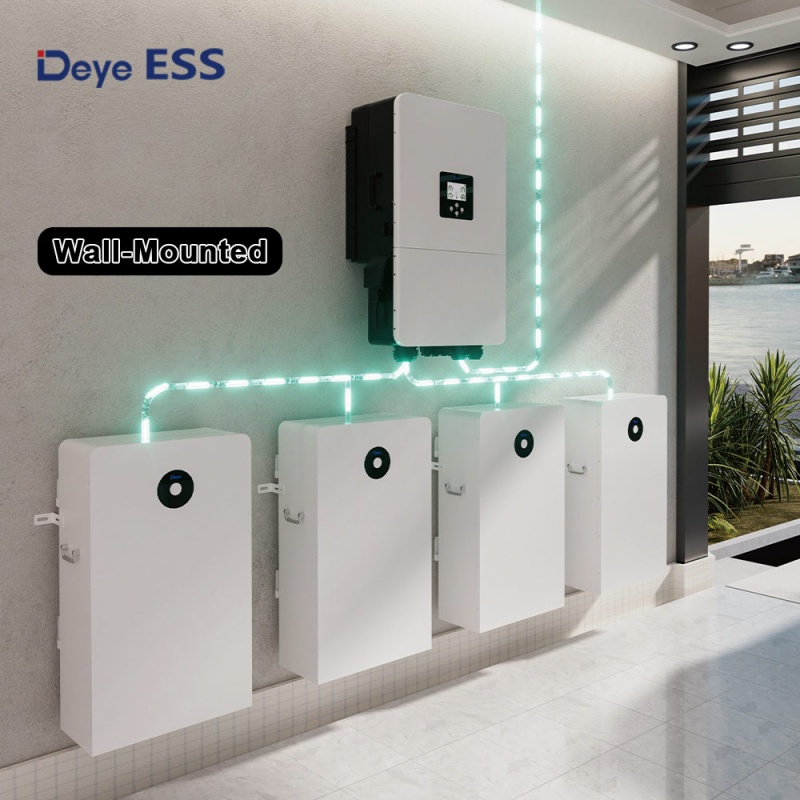

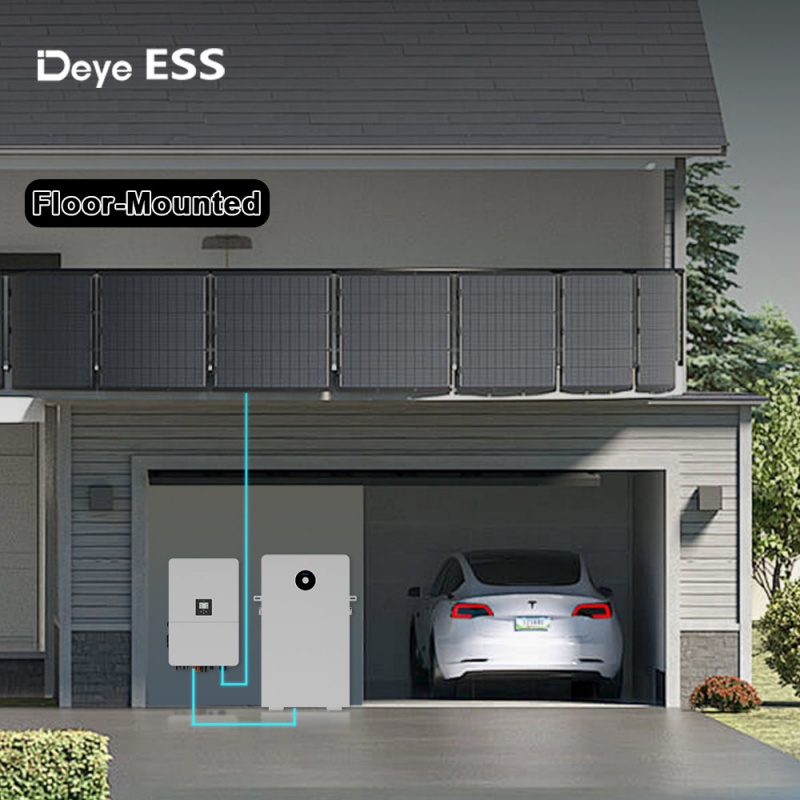

Flexible Installation: Suitable for both wall-mounted and floor-mounted setups
Efficient Energy Use: Achieves 90% round-trip efficiency with a nominal usable energy of 14.4 kWh
Robust Design: IP20 rating, designed for indoor use with high humidity tolerance (up to 95%)
Item No :
RW – F16Order(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
10-15 DaysWeight :

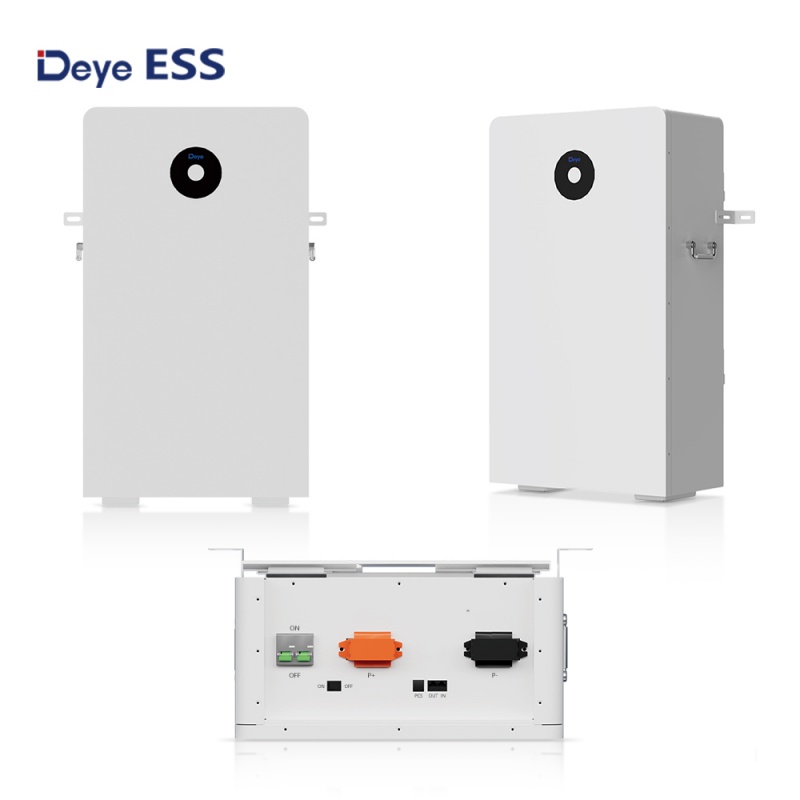

Approximately 122 kgDEYE RW-F16 Deye 51.2v 314ah Low Voltage Solar Lithium battery
DEYE RW-F16 Datasheet
| Model | RW – F16 |
| Battery Chemistry | LiFePO₄ |
| Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
| Usable Energy | 14.4 kWh (90% Depth of Discharge) |
| Charge/Discharge Current – Maximum Continuous | 160 A |
| Charge/Discharge Current – Peak | 300 A (10 seconds) |

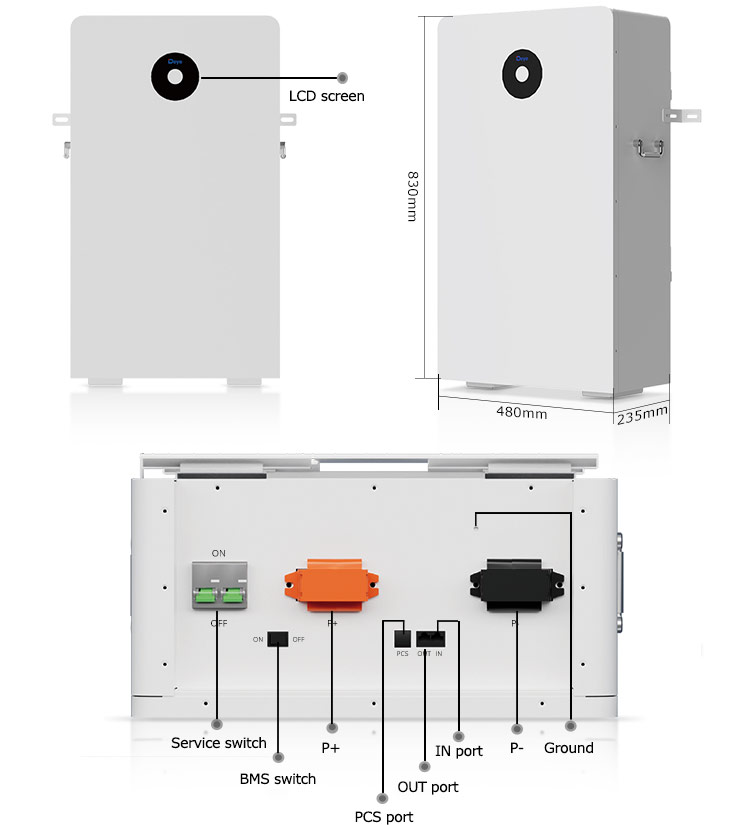

| Dimensions | 480 x 830 x 235 mm |
| Weight | Approximately 122 kg |
| IP Rating | IP20 (suitable for indoor use) |
| Operating Temperature Range – Charge | 0°C to 55°C |
| Operating Temperature Range – Discharge | -20°C to 55°C |
| Relative Humidity | 95% (maximum) |

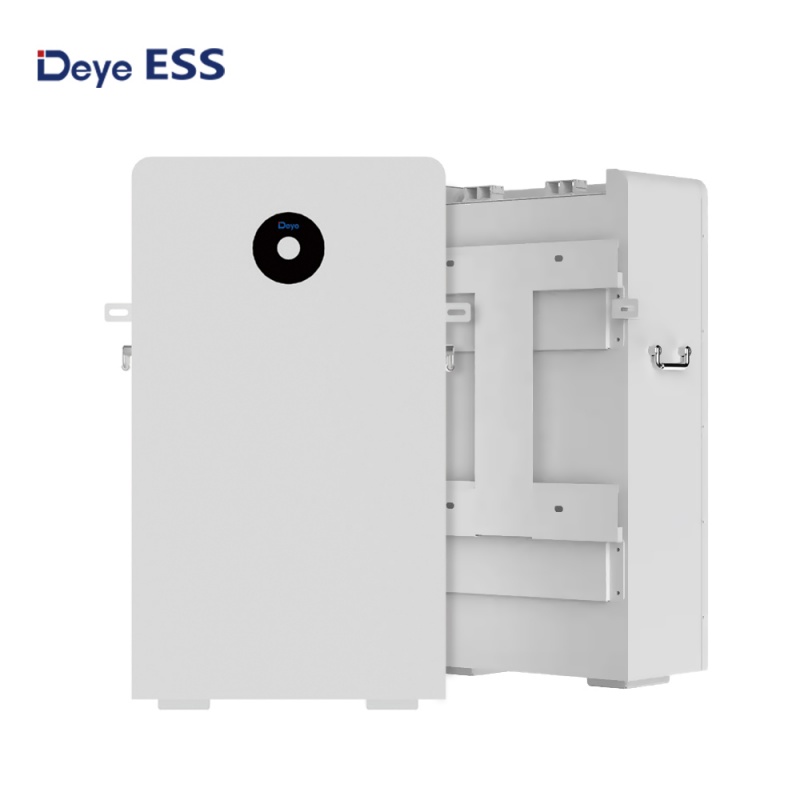

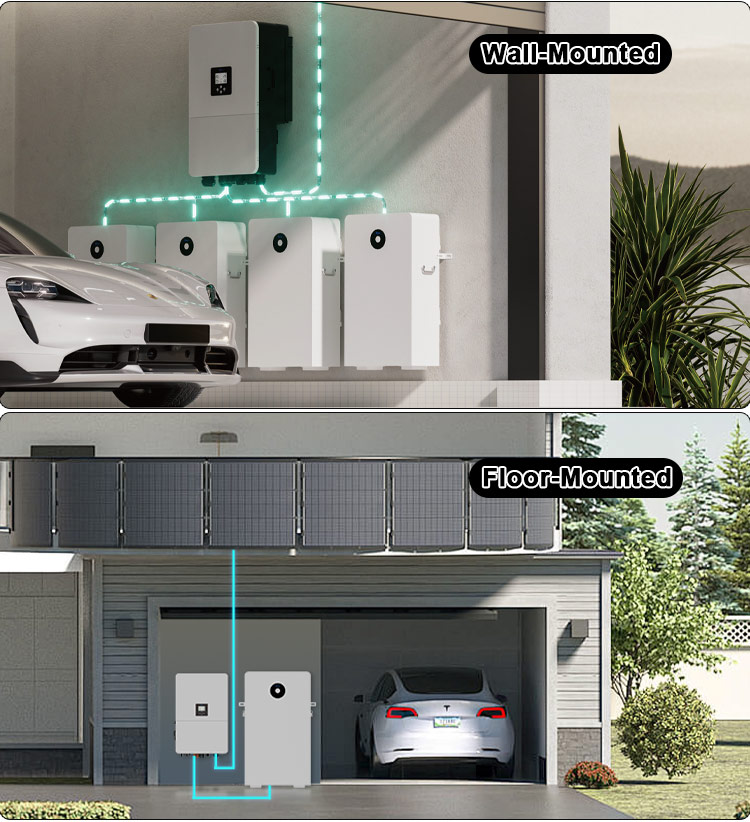

| Installation | Wall – mounted or floor – mounted |
| Warranty Period | 5 – year warranty (10 years extendable) |
| Certification | UN38.3, MSDS |
