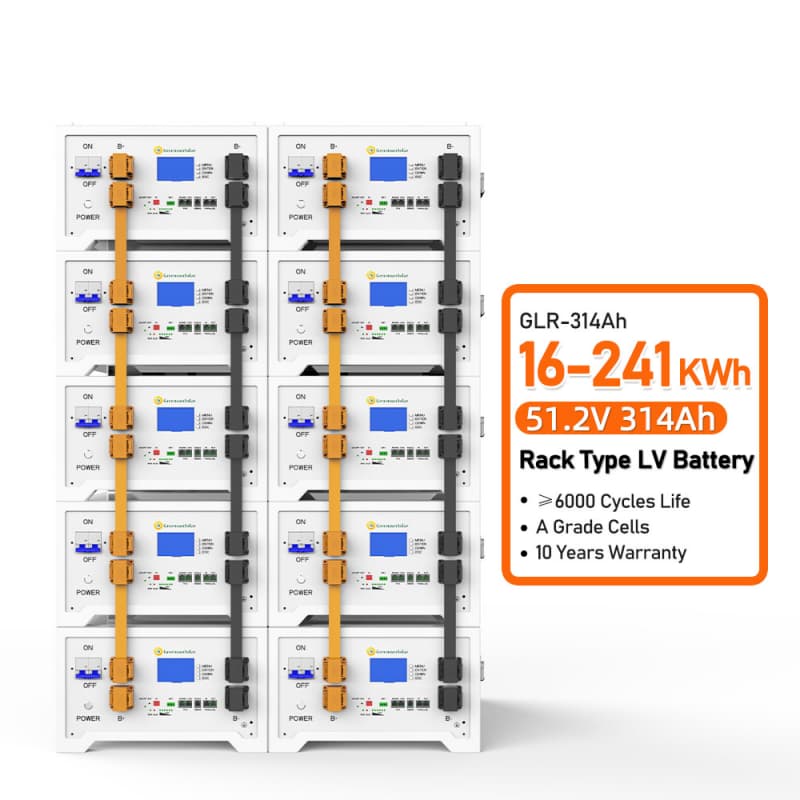

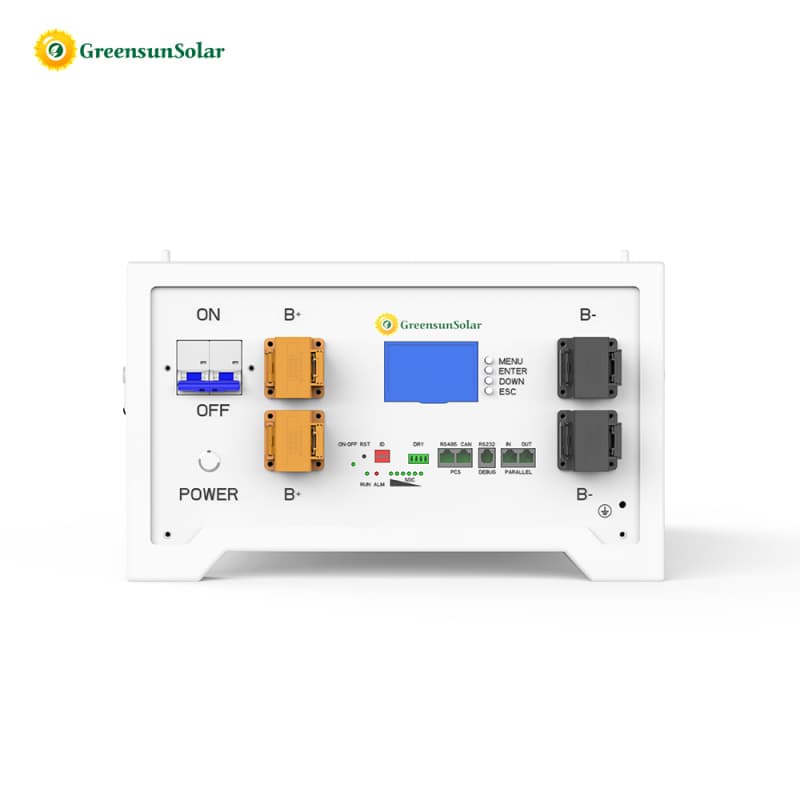

Greensun Low voltage easy rack mounted solar battery use high quality materials and A grade battery cells
Very safe and have smart BMS control, Bluetooth monitoring
Support Parallel to expand capacity easily up to 153.6kwh
Brand :
Greensun SolarProduct Name :
51.2v low voltage battery easy rack mounted solar battery 10KWH 14KWH 16KWHNominal Voltage :
51.2VNominal Capacity :
200Ah/280Ah/314AhCell Type :
REPT,EVE, NETC Grade A Lifepo4 battery cellsCycle Life :
DOD80%≥6000BMS :
intergrated smart BMSCommunication :
CAN/RS485Warranty :
10 yearsCertification :
CE/UN38.3/MSDSGreensun Low Voltage Easy Rack Mounted Battery 10KWH 14KWH 16KWH
Low voltage Easy rack mounted battery 10KWH 14KWH 16KWH Datasheet for Review
| Battery Module Model | GLR-200 | GLR-280 | GLR-314 |
|
Cell Chemistry
|
LiFePO4
|
||
|
Module Energy (kWh)
|
10.24
|
14.336
|
16.076
|
|
Module Nominal Voltage (V)
|
51.2 | ||
|
Module Capacity (Ah)
|
200 | 280 | 314 |
|
Recommend Depth of Discharge
|
90% DoD
|
||
|
Battery Module Qty In Parallel ( Optional )
|
1 | ||
|
Charge/Discharge
Current(A)
|
100 | 140 | 157 |
|

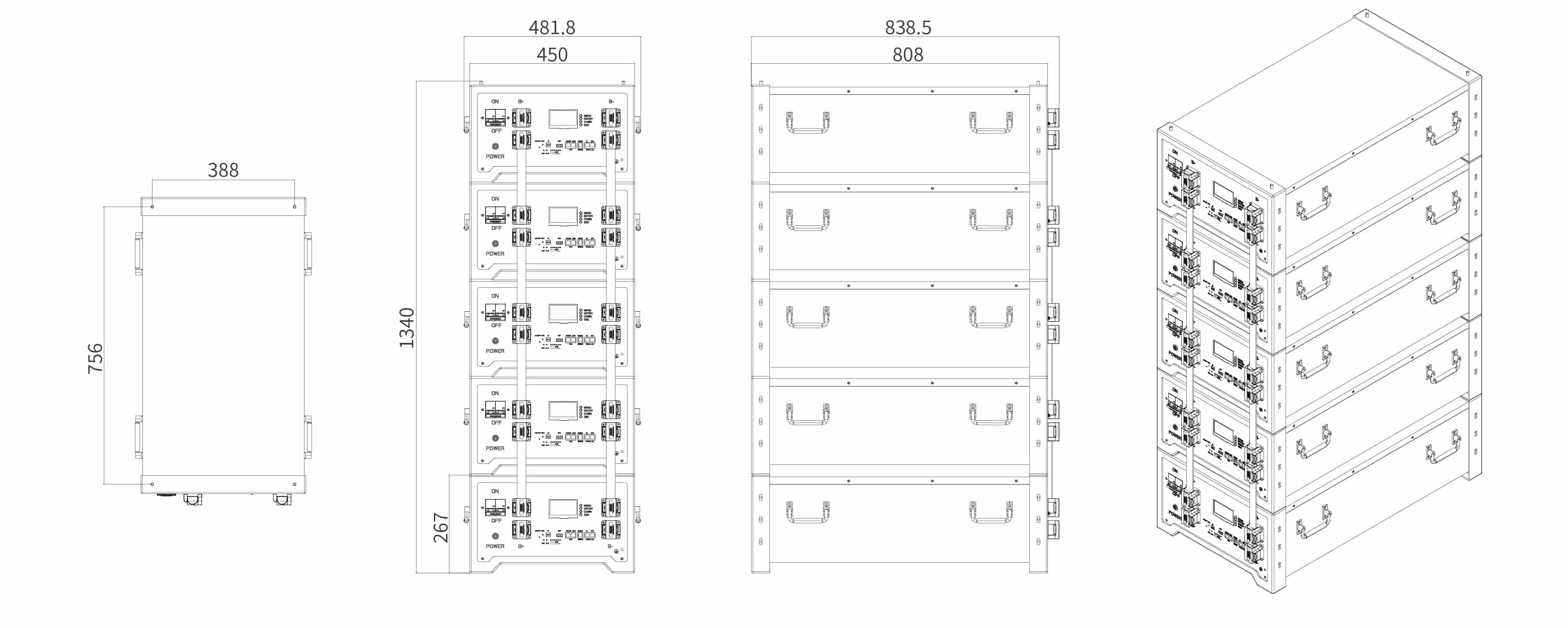

Dimension (L*D*H)
|
478*675.8*278
|
388*756*267
|
388*756*267
|
|
Battery Pack N.W.
|
95KG | 120KG | 123.4KG |
|
Master LED Indicator
|
6LED ( SOC : 17% ~ 100% ) , 3LED ( ON/OFF, RUN, Alarm )
|
||
|
Bluetooth
|
Include
|
||
|
Communication Port
|
CAN/RS232/RS485
|
||
|
Operating Temperature
|
Charge : 0℃~55℃,
Discharge : -20℃ ～ 60℃
|
||
|
Storage Temperature
|
-10 ～ 40℃
|
||
|
Relative Humidity
|
95%
|
||
|
Altitude
|
≤2000 m
|
||
|
Cycle Life
|
≥6000 90%DOD
|
||
|
Warranty Period
|
10Years
|
||
|
Installation
|
Rack Mounted
|
||
|
Certification
|
CE/UN38.3/MSDS
|
||

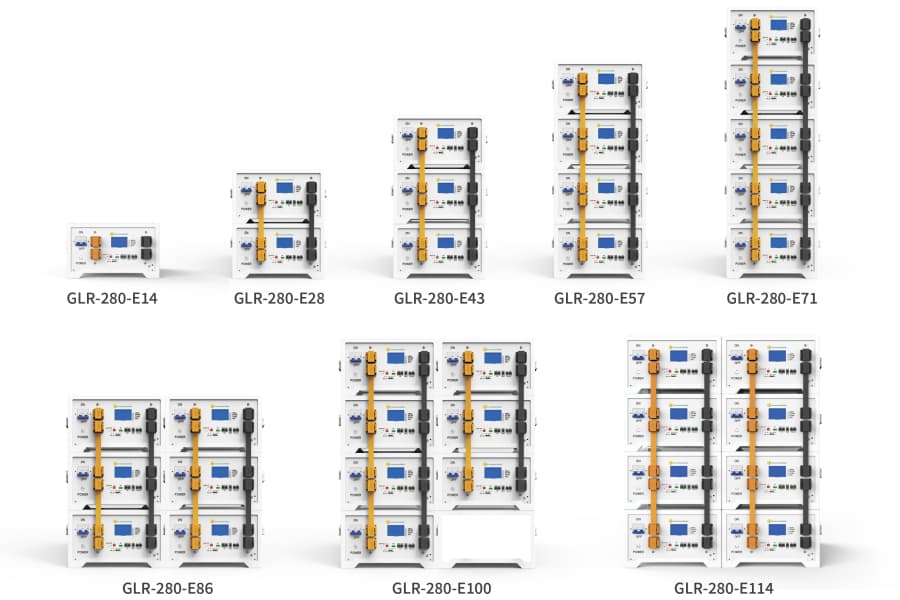

Parallel connection increases capacity（Multiple combination options）

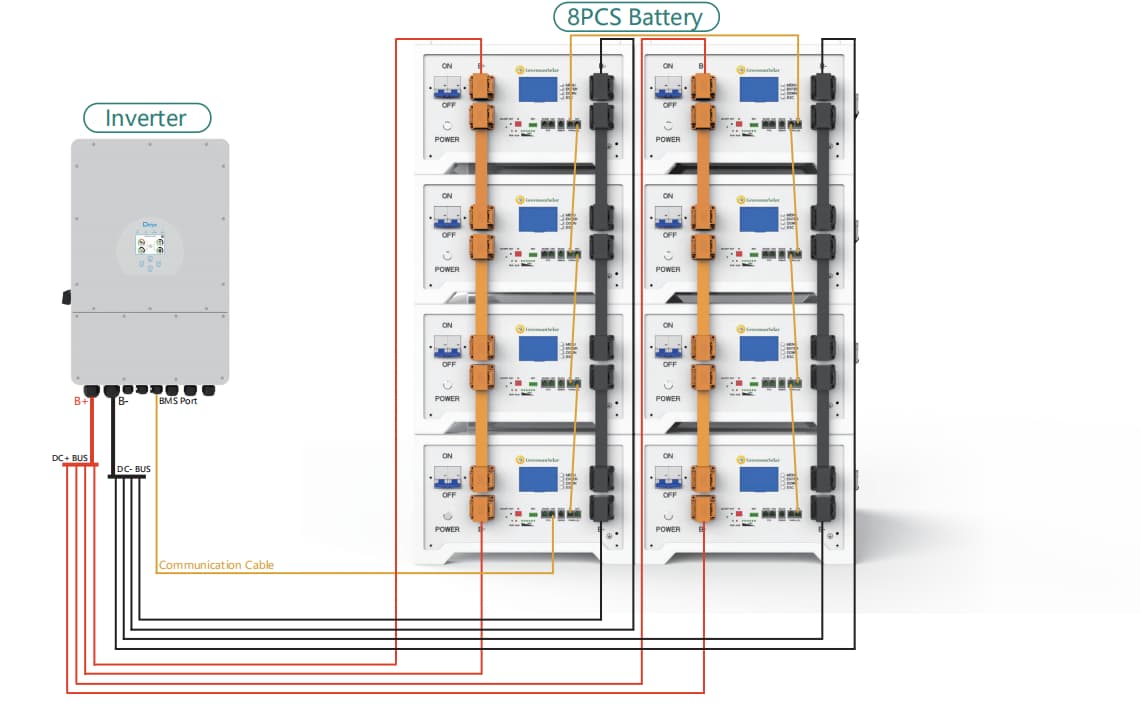

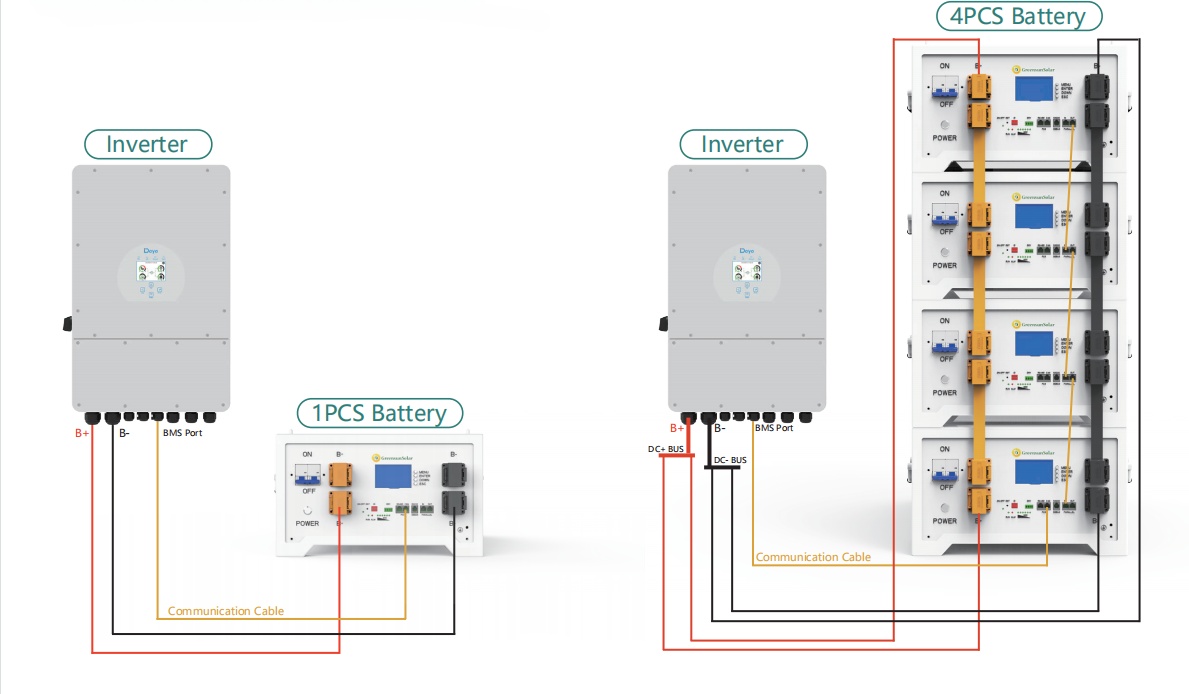

Battery pack connection demonstration
