Modular design improves operational efficiency and limits fault impact scope. Easy maintenance & capacity expansion.
Eliminates DC circulating current between clusters. Boosts usable system capacity by 15% and overall efficiency by 2%.
Modular fire‑protection system with safety isolation partitions. Works reliably under ambient temperature up to 50°C. Air‑cooled thermal management.
Plug‑and‑play outdoor deployment. Design lifespan ≥15 years. Supports 0.5C‑1C charge‑discharge rate.

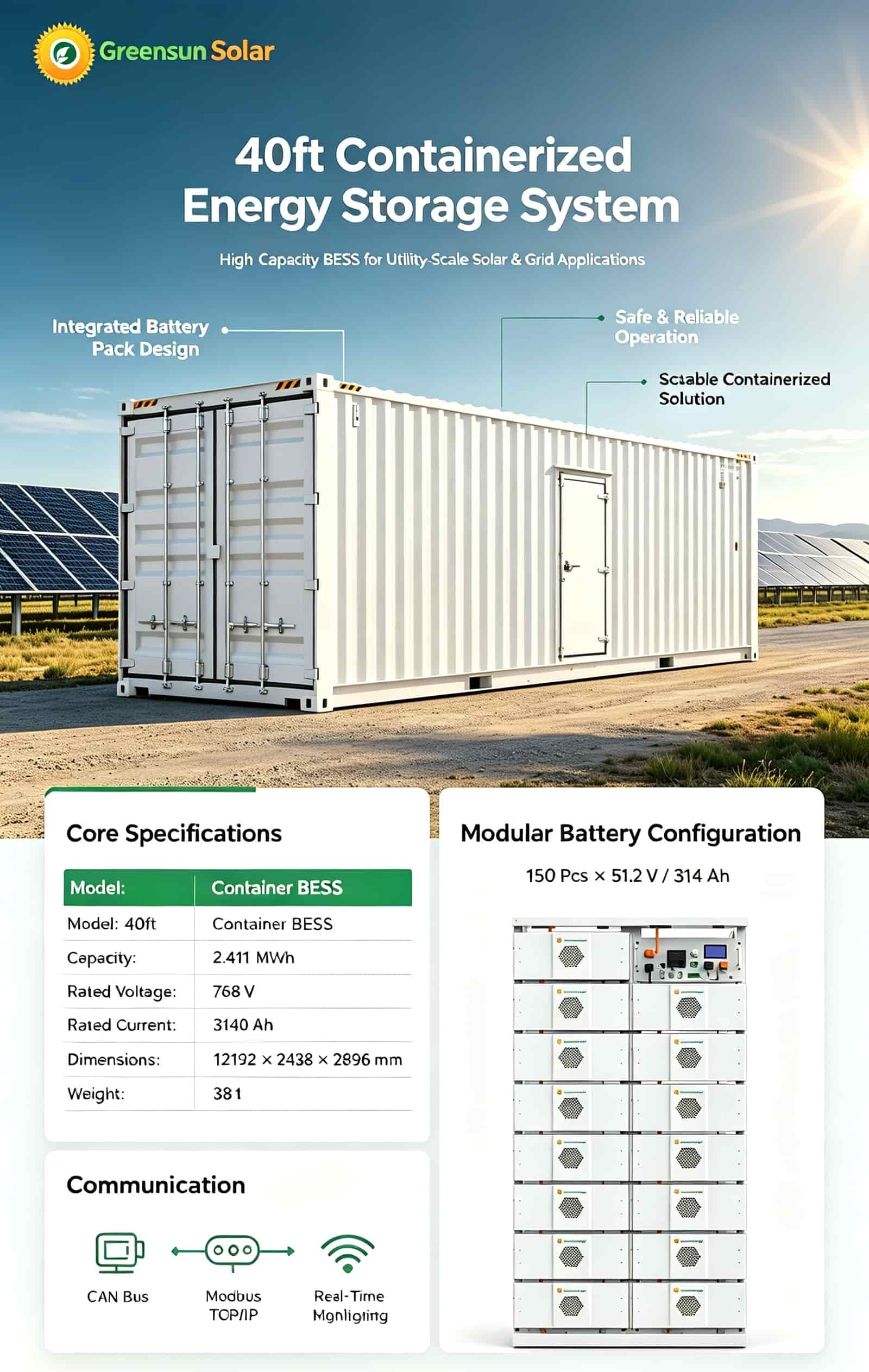

Item No :
BESS Container SystemOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
38000KG
|
Rated power (kW)
|
500KW
|
||
|
Rated voltage (Vac)
|
3/N/PE, 220 V / 380 V, 230 V / 400 V
|
||
|
AC output
|
3W+N+PE
|
||
|
Rated current (A)
|
721.6A (180.4 *4A)
|
||
|
On / off-grid switching
|
Support
|
||
|
Rated frequency(Hz)
|
45-55 / 55-65
|
||
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
||
|
Max. PV power (kW)
|
1000KW (250KW*4)
|
||
|
MPPT operating voltage range (V)
|
1,000
|
||
|
Cell type
|
3.2V 314Ah/LiFePO4
|
||
|
Nominal voltage (V)
|
768/1P 240S
|
||
|
Nominal energy (kWh)
|
964.608
|
||
|
Working voltage range (V)
|
672~850
|
||
|
Number of battery cycles
|
≥8,000
|
||
|
System specification
|
500kW/964.608kWh
|
||
|
Dimensions W *D *H (mm)
|
6,058×2,438×2,896
|
||
|
Net weight (kg)
|
16,000
|
||
|
Battery Pack specification
|
Battery module specification
|
||
|
Normal voltage
|
768V
|
Normal Voltage
|
51.2V
|
|
Voltage Range
|
672-852V
|
Normal capacity
|
314Ah
|
|
Capacity
|
1256Ah(314Ah*4)
|
Normal energy
|
16.078KWH
|
|
Normal energy
|
1205.760KWh
|
Voltage range
|
44.8-56.8V
|
|
Rack cluster quantity
|
4clusters
|
Cycles @ 25 °C
|
8000Cycle
|
|
Cluster capacity
|
768V 314Ah
|
BMU
|
Include
|
|
Combiner method
|
4clusters in parallel
|
Cell configuration
|
16S*1P
|
|
Cluster combination
|
15pcs battery module in
series
|
Module Dimension
|
483*245*792mm
|
|
Cluster dimension
|
1070*800*2330mm
|
Module weight
|
125kg
|
|
Per Cluster weight
|
1980kg
|
Approvals
|
CE, MSDS,UN38.3
|
Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 2-level Battery Management System Outstanding performance and long lifespan with over 8000 cycles at 0.5C Optimized for both on-grid and off-grid applications 20' containerized design complete with battery, Hybrid Inverter, HVAC, Fire Extinguishing System, Lighting. Designed for easy installation and maintenance Overall transportation
📌 MODULAR DESIGN Modular design improves operational efficiency and limits fault impact scope. Easy maintenance & capacity expansion. 📌 HIGHER SYSTEM EFFICIENCY Eliminates DC circulating current between clusters. Boosts usable system capacity by 15% and overall efficiency by 2%. 📌 SUPERIOR SAFETY & ADAPTABILITY Modular fire‑protection system with safety isolation partitions. Works reliably under ambient temperature up to 50°C. Air‑cooled thermal management. 📌 FLEXIBLE DEPLOYMENT & LONG SERVICE LIFE Plug‑and‑play outdoor deployment. Design lifespan ≥15 years. Supports 0.5C‑1C charge‑discharge rate.
Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level Battery Management System Outstanding performance and long lifespan with over 8000 cycles at 0.5C 20' containerized design complete with battery, Hybrid Inverter, HVAC, Fire Extinguishing System, Lighting
