Item No :
BESS Container SystemOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :

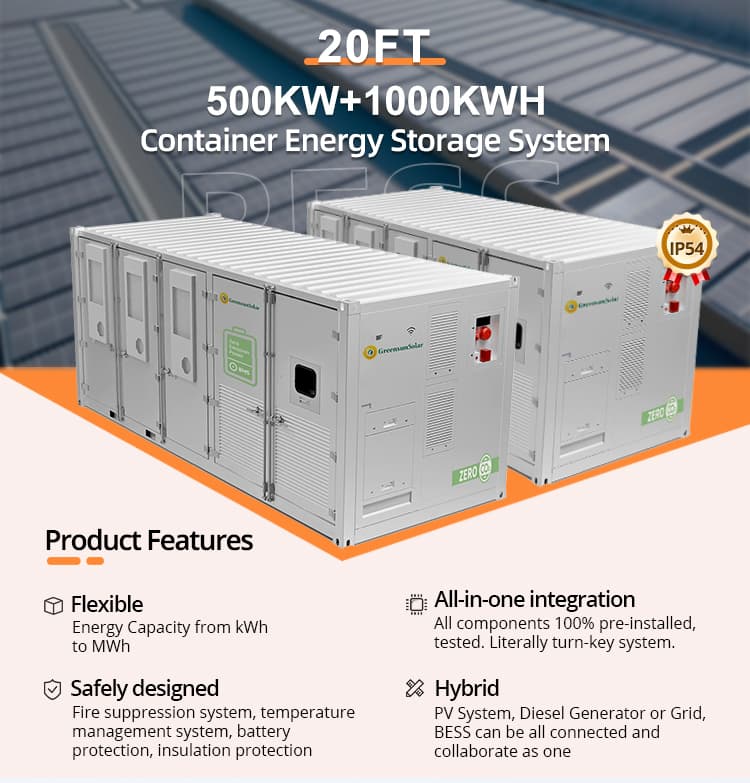

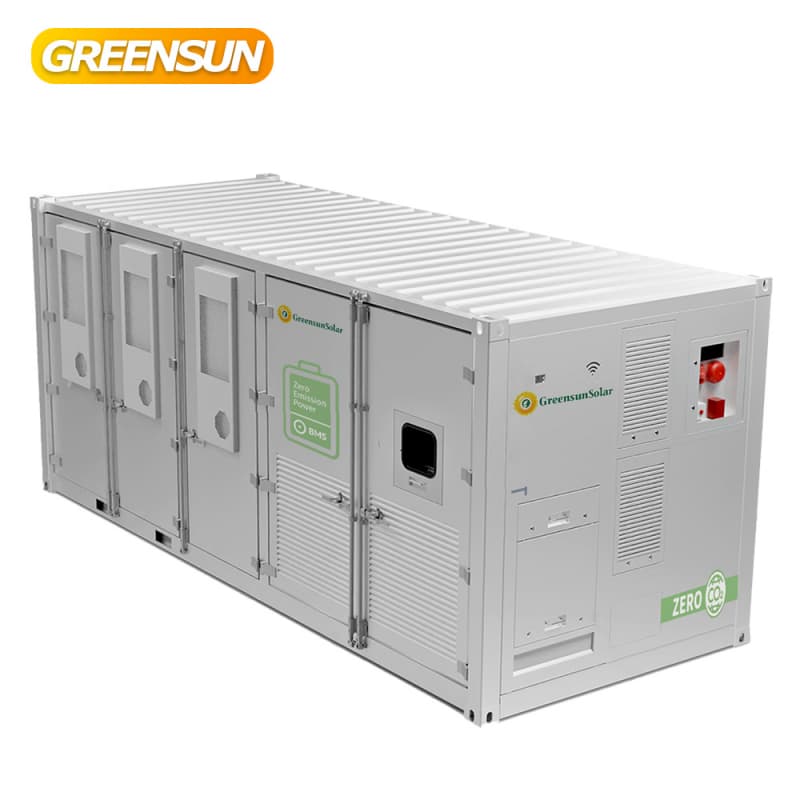

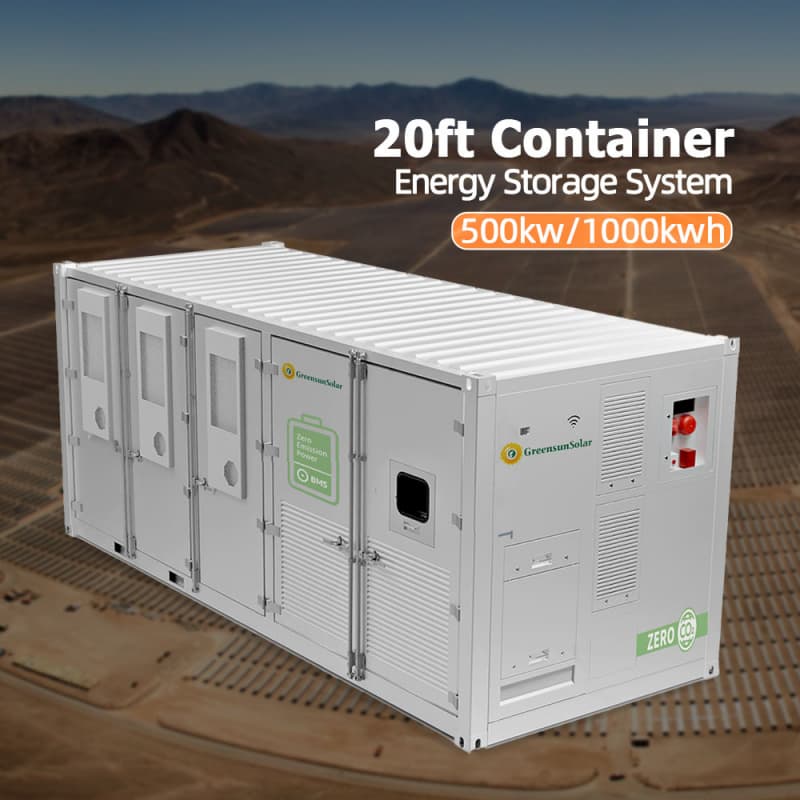

21000KG20 Feet Container Energy Storage System

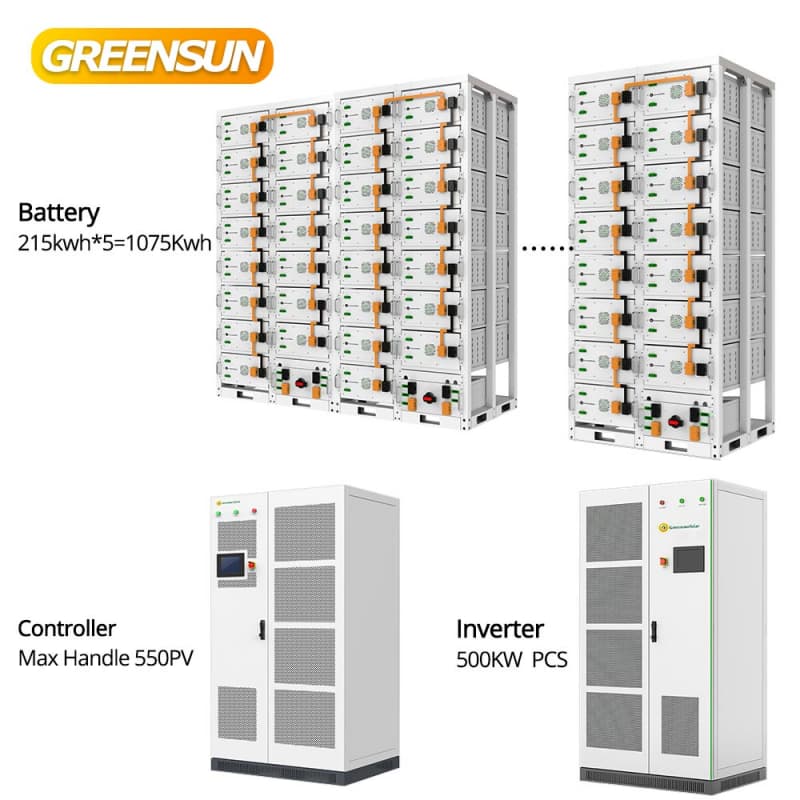

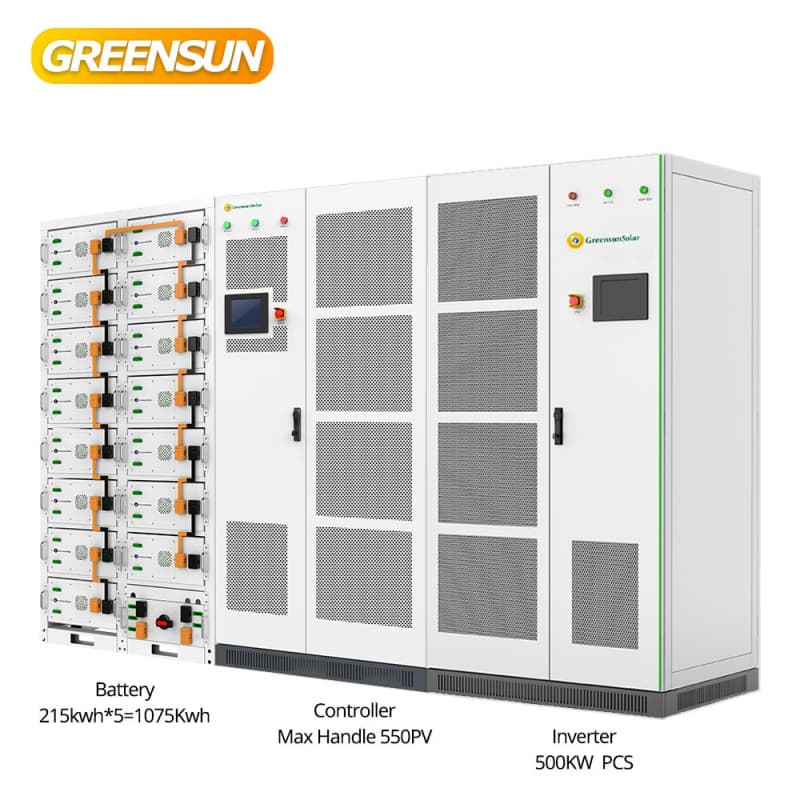

System Composition
System Datasheet for Review
|
Rated power (kW)
|
500KW
|
||
|
Rated voltage (Vac)
|
400
|
||
|
AC output
|
3W+N+PE
|
||
|
Rated current (A)
|
722 | ||
|
Voltage range (Vac)
|
320V-460Vac
|
||
|
Rated frequency(Hz)
|
45-55 / 55-65
|
||
|
Overload capacity
|
110% long-term
|
||
|
Max. PV power (kW)
|
600
|
||
|
MPPT operating voltage range (V)
|
250-850
|
||
|
Buck-boost mode
|
Support
|
||
|
Cell type
|
3.2V 314Ah/LiFePO4
|
||
|
Nominal voltage (V)
|
768/1P 240S
|
||
|
Nominal energy (kWh)
|
1205.76
|
||
|
Working voltage range (V)
|
672~850
|
||
|
Number of battery cycles
|
≥8,000
|
||
|
System specification
|
500kW/1,205.76kWh
|
||
|
Dimensions W *D *H (mm)
|
6,058×2,438×2,896
|
||
|
Net weight (kg)
|
21,000
|
||
|

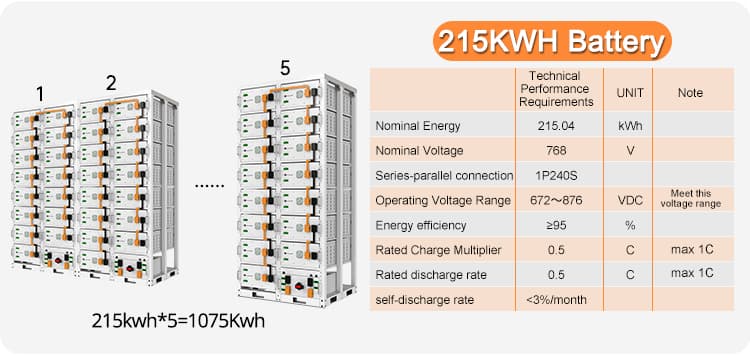

Battery Pack specification
|
Battery module specification
|
||
|
Normal voltage
|
768V
|
Normal Voltage
|
51.2V
|
|
Voltage Range
|
672-852V
|
Normal capacity
|
314Ah
|
|
Capacity
|
1570Ah(314Ah*5)
|
Normal energy
|
16.078KWH
|
|
Normal energy
|
1205.760KWh
|
Voltage range
|
44.8-56.8V
|
|
Rack cluster quantity
|
5clusters
|
Cycles @ 25 °C
|
8000Cycle
|
|
Cluster capacity
|
768V 314Ah
|
BMU
|
Include
|
|
Combiner method
|
5clusters in parallel
|
Cell configuration
|
16S*1P
|
|
Cluster combination
|
15pcs battery module in
series
|
Module Dimension
|
483*245*792mm
|
|
Cluster dimension
|
1070*800*2330mm
|
Module weight
|
125kg
|
|
Per Cluster weight
|
1980kg
|
Approvals
|
CE, MSDS,UN38.3
|

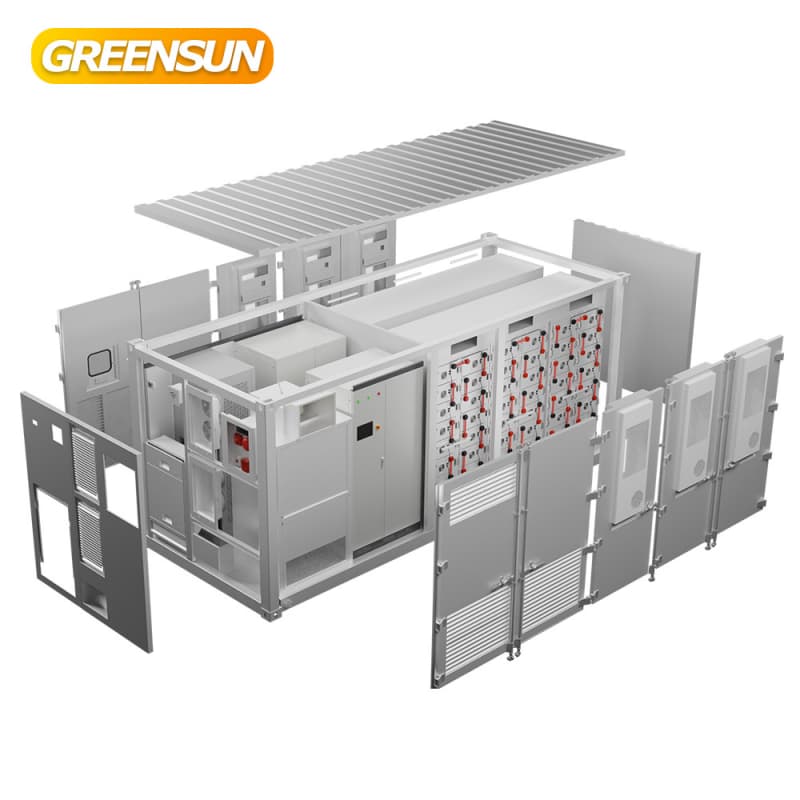

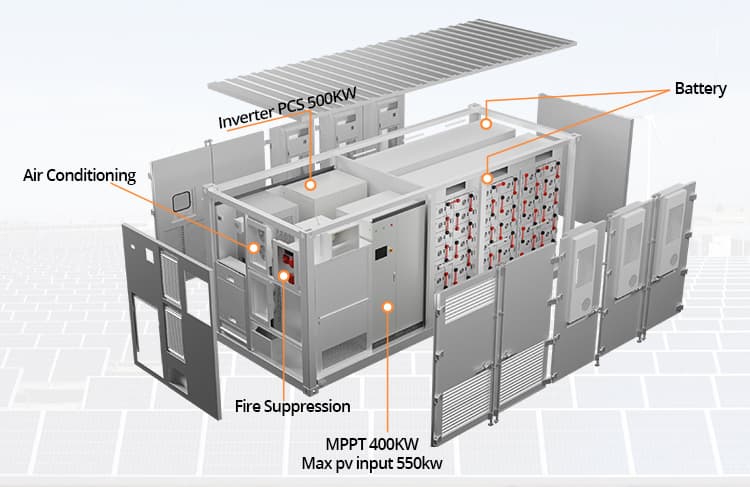

system architecture

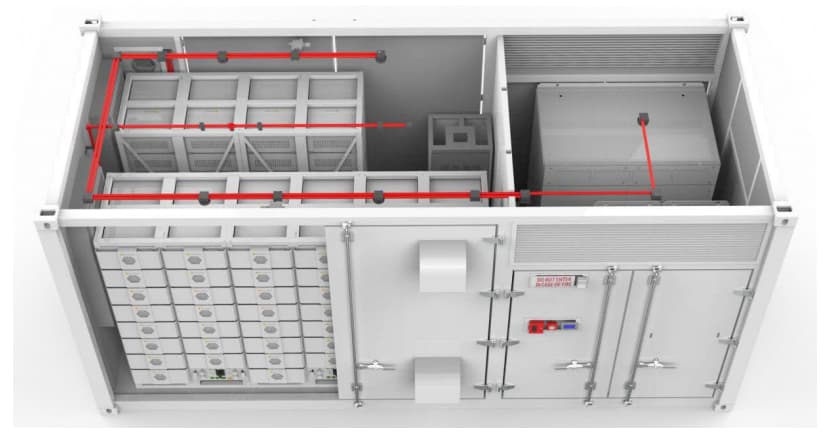

Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level Battery Management System Outstanding performance and long lifespan with over 8000 cycles at 0.5C 20' containerized design complete with battery, Hybrid Inverter, HVAC, Fire Extinguishing System, Lighting
Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 2-level Battery Management System Outstanding performance and long lifespan with over 8000 cycles at 0.5C Optimized for both on-grid and off-grid applications 20' containerized design complete with battery, Hybrid Inverter, HVAC, Fire Extinguishing System, Lighting. Designed for easy installation and maintenance Overall transportation
