Convenient installation: 19-inch embedded standard module, easy for installation and maintenance
Safe and reliable: Uses LiFePO₄ cathode material with safety, long cycle life, low self-discharge (up to 6 months, no memory effect, good shallow charge/discharge performance), supports aerosol fire extinguishing
Intelligent BMS: Provides over-discharge, over-charge, over-current, over-high/low temperature protection; automatically manages charge/discharge and balances cell voltage/current
Flexible configuration: Multiple modules can be paralleled for capacity/power expansion
Eco-friendly: Non-toxic, non-polluting
Wide temperature range: -20°C to 55°C with excellent discharge and cycle performance
Item No :
Deye BOS-G ProOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
10-15 DaysWeight :

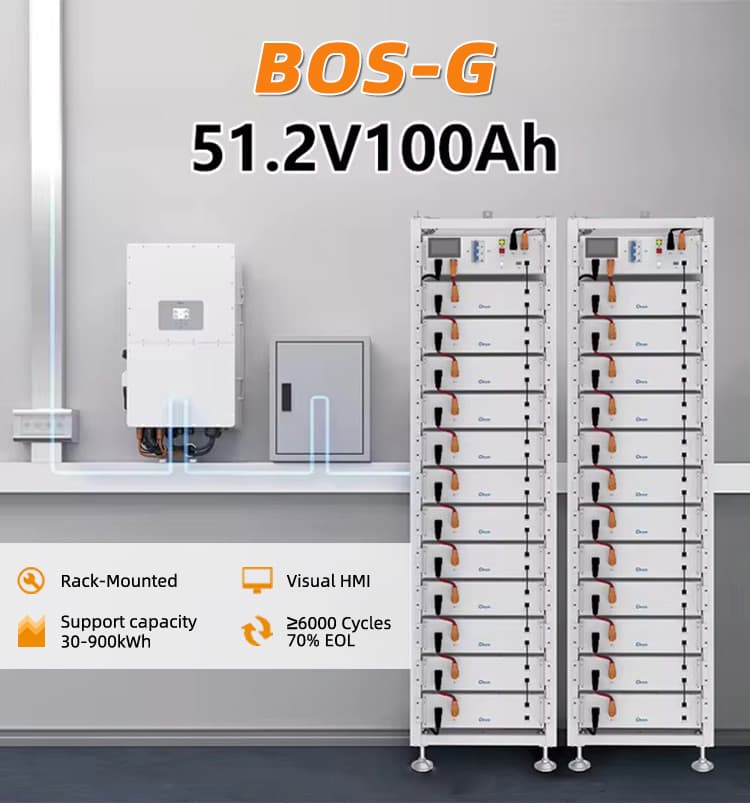

According to capacityDEYE BOS-GM5.1 Deye 51.2v 100ah High Voltage Lithium Solar Battery
DEYE BOS-GM5.1 Datasheet
| Model | BOS-G-Pro | |
| Cell Chemistry | LiFePO4 | |
| Module Energy(KWH) | 5.12 | |
| Module Nominal Voltage(V) | 51.2 | |
| Module Capacity(Ah） | 100 | |
| Battery Module Number | BOS-G40-Pro | BOS-G60-Pro |
| Battery Module Qty in Series | 8 | 12 |
| System Nominal Voltage (V) | 409.6 | 614.4 |
| System Operating Voltage (V) | 352-467.2V | 528-700.8V |
| System Energy (KWH） | 40.96 | 61.44 |
| System Usable Energy(KWH) | 36.86 | 55.3 |
| Charge/Discharge current Recommend | 50 | |
| Charge/Discharge current Nominal | 100 | |

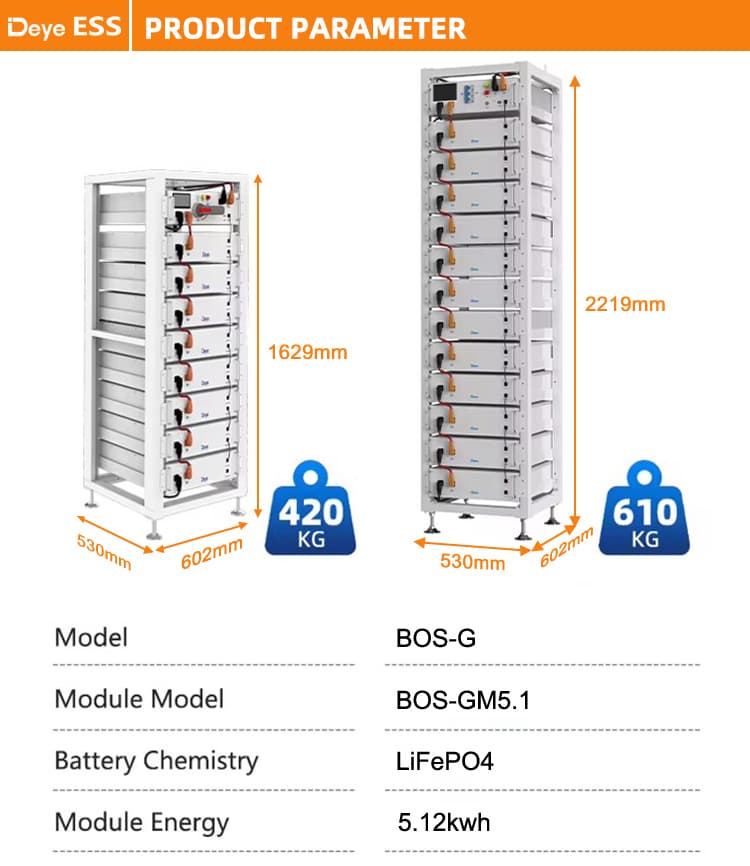

| Dimension(W*D*H,mm) | 530*602*1629 | 530*602*2219 |
| Weight Approximate(Kg) | 428 | 622 |
| Cycle Life | 6000 | |
LiFePO4 Batteries with safety performance and long Intelligent BMS Suppor 3-16 packs in series as one cluster, max 5 clusters in parallel Support Wifi&Upgrade Wi-Fi module, real-time data monitoring Support USB upgrade, remote upgrade Economical&Convenient Stackable design for easy installation and maintenance
LiFePO4 Batteries with safety performance and long cycle life Intelligent BMS Support aerosol fifire extinguishing Support up to 140A current output
Support 3-15 packs in series as one cluster, max 10 clusters in parallel Low self-discharge up to 6 months
Convenient installation: 19-inch embedded standard module, easy for installation and maintenance Safe and reliable: Uses LiFePO₄ cathode material with safety, long cycle life, low self-discharge (up to 6 months, no memory effect, good shallow charge/discharge performance), supports aerosol fire extinguishing Intelligent BMS: Provides over-discharge, over-charge, over-current, over-high/low temperature protection; automatically manages charge/discharge and balances cell voltage/current Flexible configuration: Multiple modules can be paralleled for capacity/power expansion Eco-friendly: Non-toxic, non-polluting Wide temperature range: -20°C to 55°C with excellent discharge and cycle performance
Scalable Modular Desgin Easy for Installation Multiple Communication 20+ Years Lifetime
Scalable Modular Desgin Easy for Installation Multiple Communication 20+ Years Lifetime
Scalable Modular Desgin Easy for Installation Multiple Communication 20+ Years Lifetime 12 Years Warranty
Scalable Modular Desgin Easy for Installation Multiple Communication 20+ Years Lifetime 12 Years Warranty
