Item No :

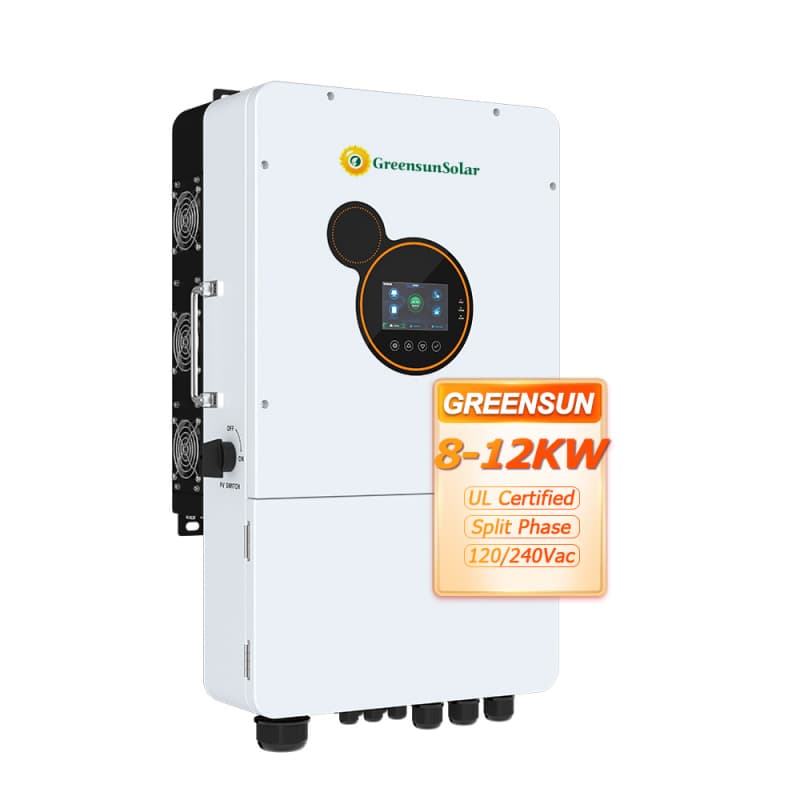

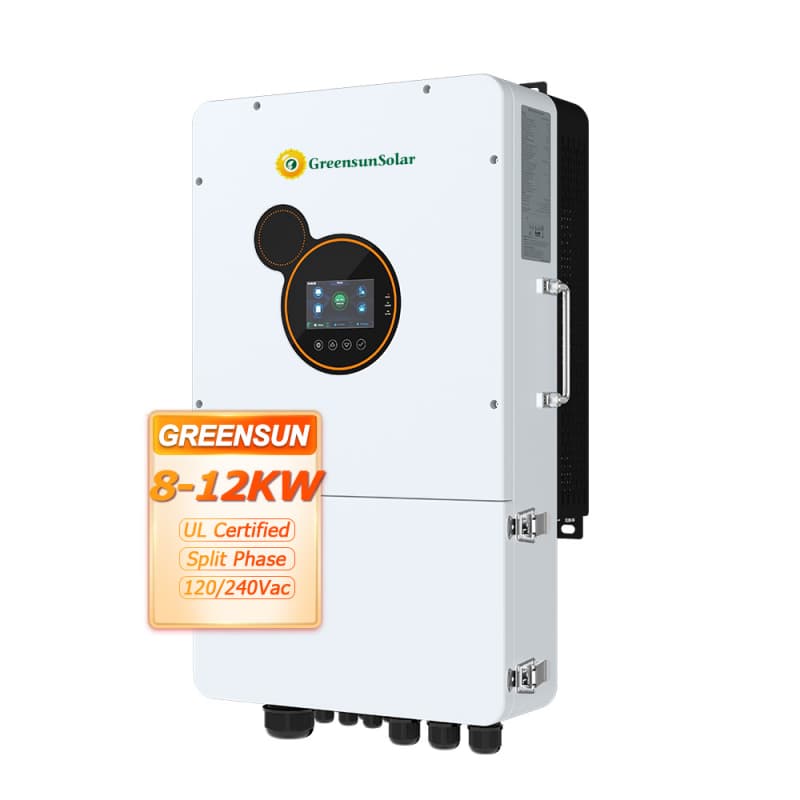

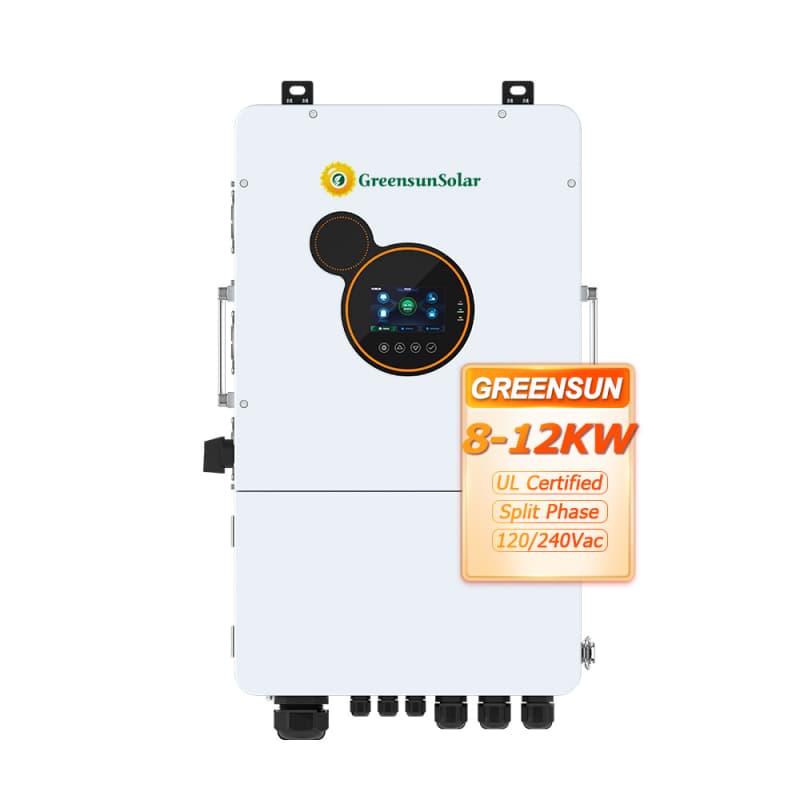

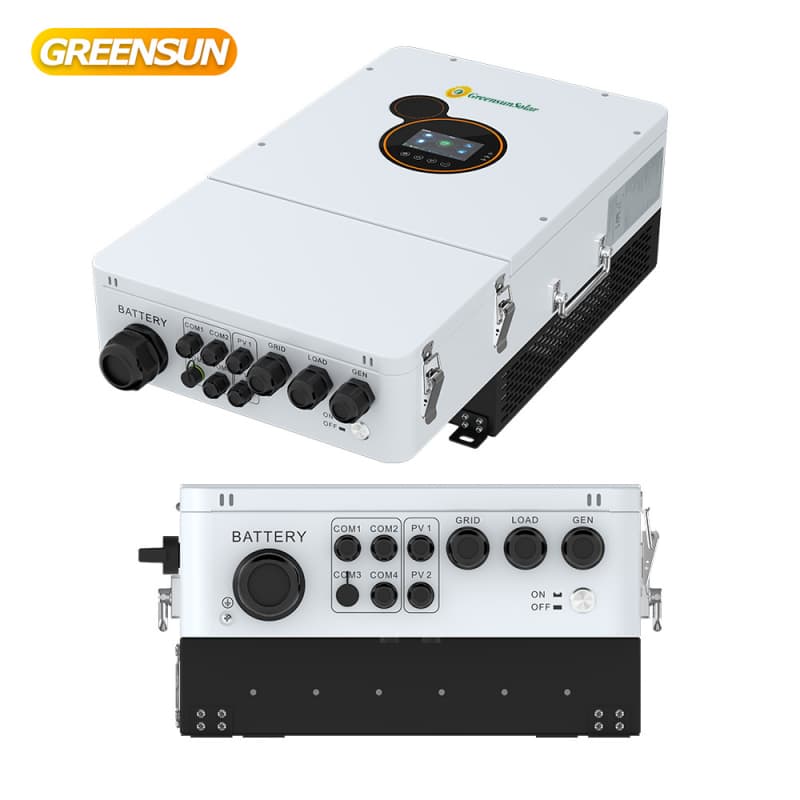

Split phase 120/240V solar hybrid inverterOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :

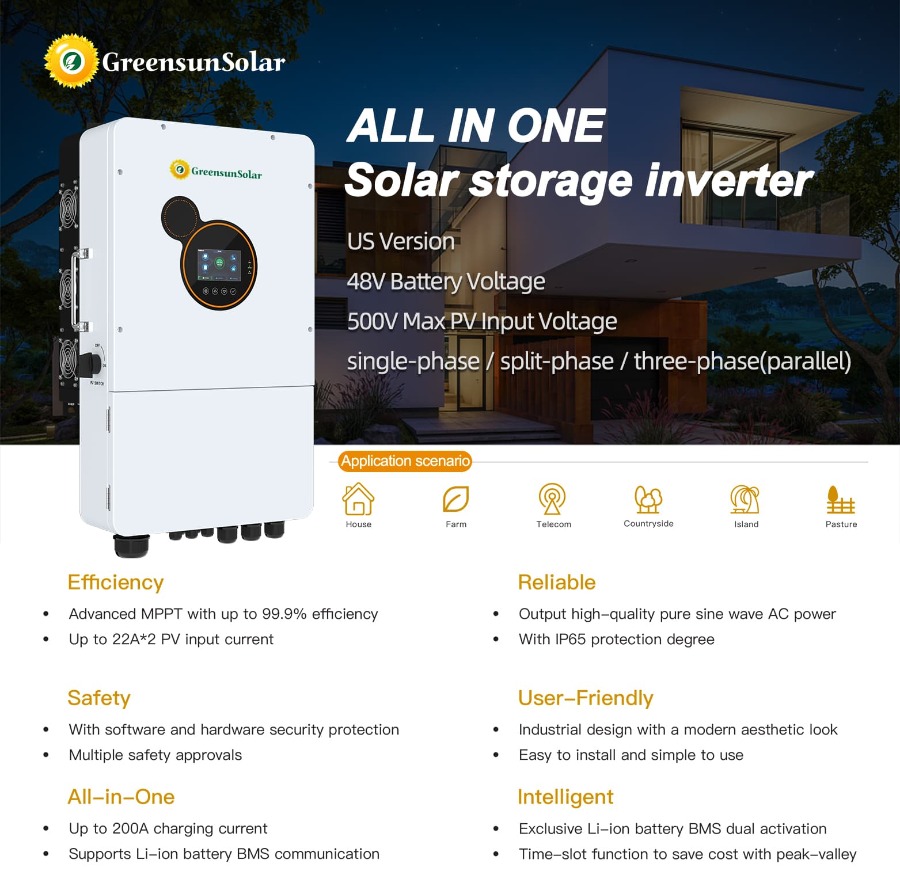

42KGAll In one solar hybrid inverter
Inverter Parameters
| Model | 8KW | 10KW | 12KW |
|
Rated Output Power
|
8,800W
|
10,000W
|
12,000W
|
|
Rated Output Voltage
|

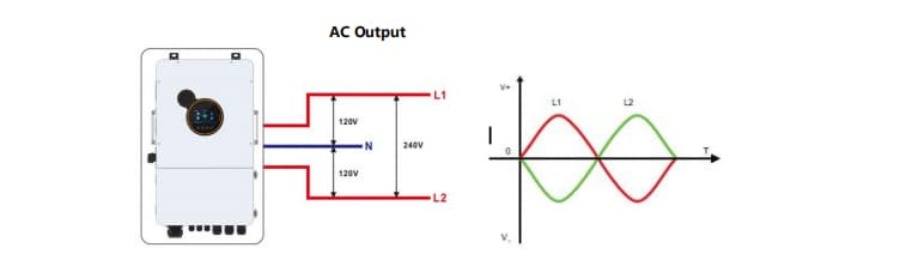

120/240Vac, single-phase / split-phase / three-phase(parallel)
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
|
|
Rated AC Frequency
|
50/60Hz
|
||
|
Battery Type
|
Lead-acid / Li-ion / User-defined
|
||
|
Rated Battery Voltage
|
48V
|
||
|
Max. PV Charging Current
|
200A
|
||
|
Num. of MPPT
|
2
|
||
|
Max. PV Array Power
|
5,500W+5,500W
|
6,600W+6,600W
|
|
|
Max. Input Current
|
22A+22A
|
||
|
Max. Open-circuit Voltage
|
500Vdc+500Vdc
|
||
|
MPPT Operating Voltage Range
|
125～450Vdc
|
||
|
Input Voltage Range
|
90～140Vac
|
||
|
Frequency Range
|
50/60Hz
|
||
|
Num. of Parallel
|
1～6 units
|
||
|
Dimensions
|
750*440*240mm (2.46*1.44*0.79ft)
|
||
|
Weight
|
42kg (92.59lb)
|
||
|
Embedded Interfaces
|
RS485 / CAN / USB / Dry contact
|
||
|
External Modules (optional)
|
Wi-Fi / GPRS
|
||
|
Safety
|
IEC62109-1, IEC62109-2
|
||

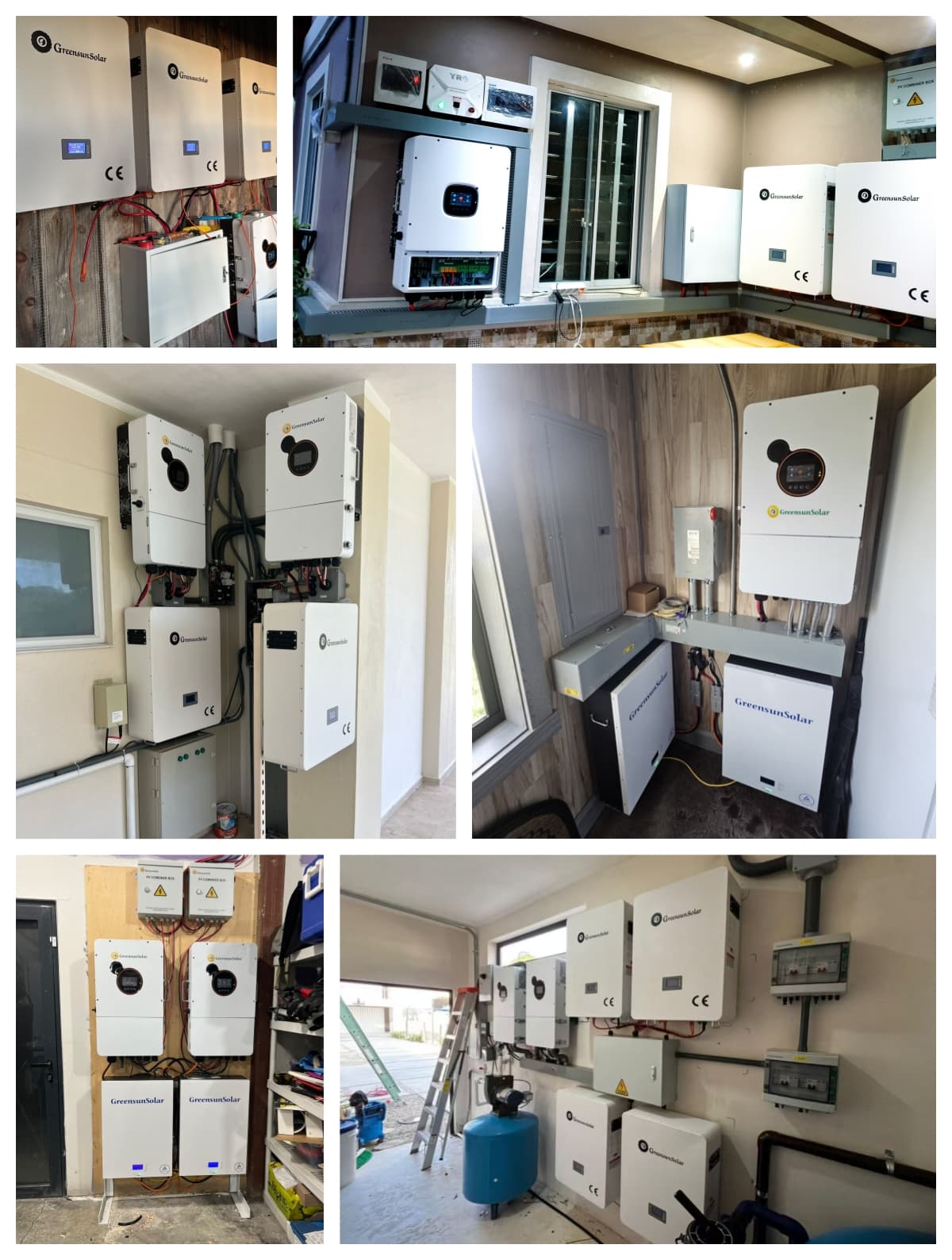

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. charging/discharging current of350A 6 time periods for battery charging/discharging Support storing energy from diesel generator Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

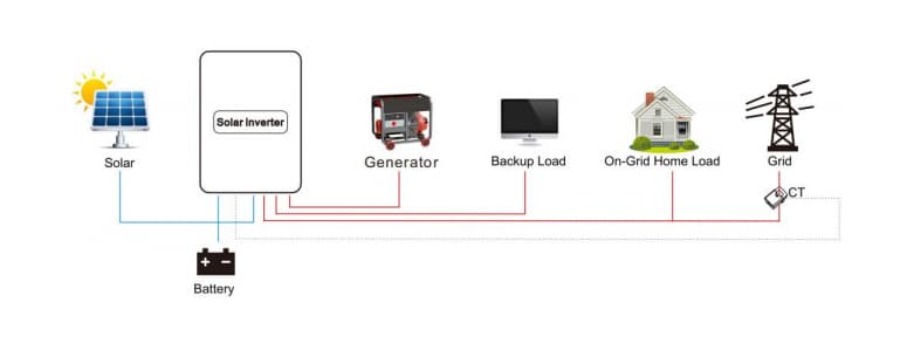

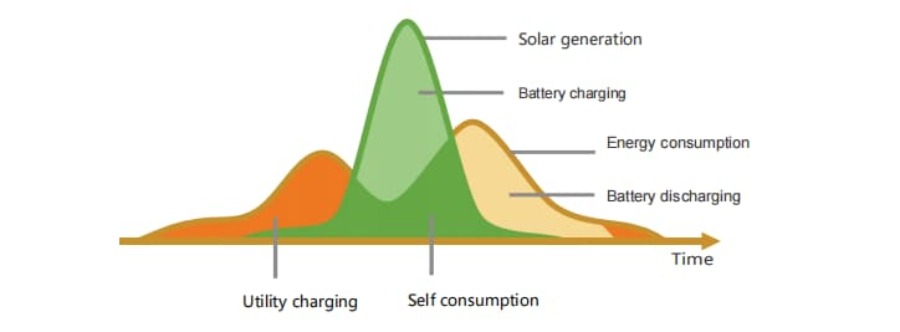

combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
