Item No :

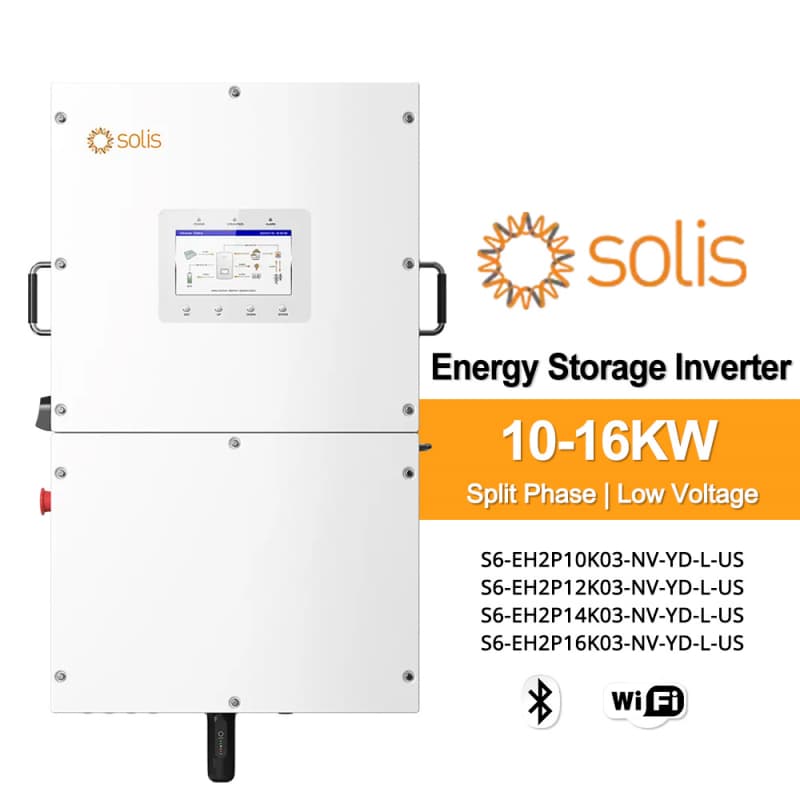

Split phase 120/240V solar hybrid inverterOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
64.3KGProduct Introduction
Inverter Parameters
| Model | 12K | 14K | 16K |
|
Max. input voltage
|
550 V
|
||
|
Rated voltage
|
380 V
|
||
|
Start-up voltage
|
100 V
|
||
|
MPPT voltage range
|
100-450 V
|
||
|
Max. input current per MPPT
|
40 A
|
||
|
Max. short circuit current per MPPT
|
50 A
|
||
|
Number of MPPTs / Number of strings per MPPT
|
3 / 2
|
||
|
Battery type
|
Li-ion / Lead-acid
|
||
|
Battery voltage range
|
40 - 60 V
|
||
|
Max. charge / discharge current
|
250 A
|
290 A
|
|
|
Communication
|
CAN / RS485
|
||
|
Rated output power
|
12 kW
|
14 kW
|
16 kW
|
|
Rated output voltage
|
240 V
|
||
|
Input voltage range
|
211 - 264 V
|
||
|
Max. input current
|
180 A
|
||
|
Phase power
|
L1/L2/N(PE), 120 V / 240 V (split phase)
|
||
|
Rated output voltage (L1-L2)
|
240 V
|
||
|
AC output voltage range
|
211 - 264 V
|
||
|
Rated frequency
|
60 Hz
|
||
|
Max. output over current protection, 10 sec
|
145 A
|
||
|
Dimensions (W × H × D)
|
19.7 × 37.6 × 11.7 in (500 × 955 × 297 mm)
|
||
|
Weight
|
141.76 lbs (64.3 kg)
|
||
|
Grid Certififications
|
UL 1741, UL 1741 SB, UL 1741 PCS, IEEE 1547-2018,
IEEE1547.1-2020, CSA C22.2107.1-1, CA Rule 21(1), HECO Rule 14H(1), Luma(1)
|
||
|
Safety Certififications
|
UL 1741 PVRSS, UL 1699B, UL 1998 (US), UL 3741
|
||
