Item No :

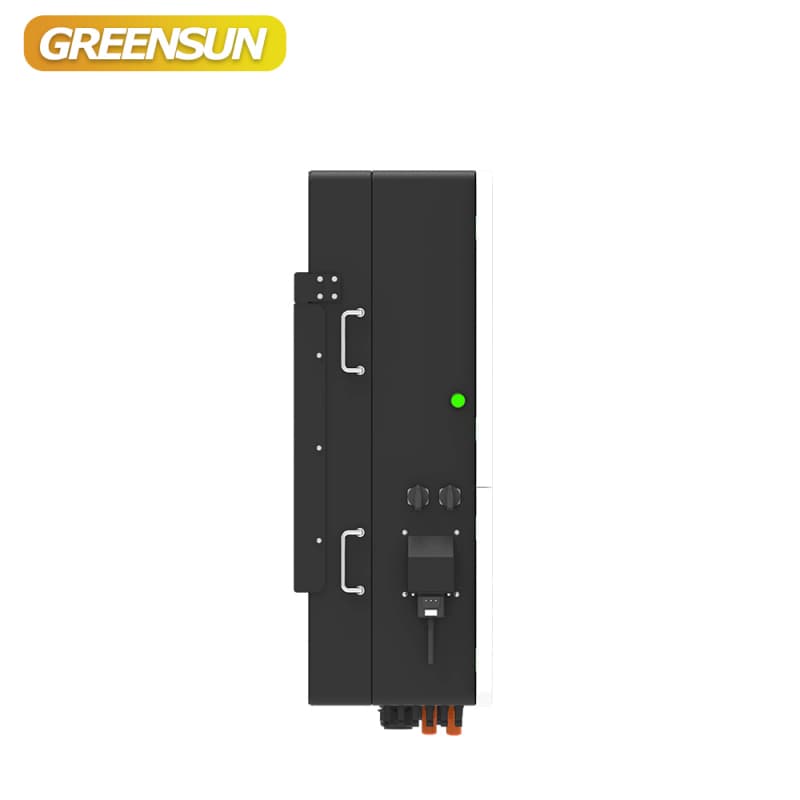

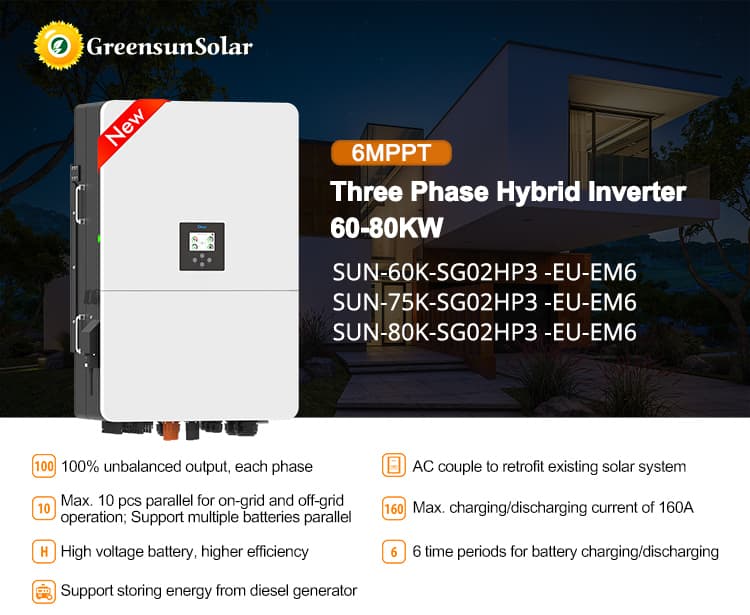

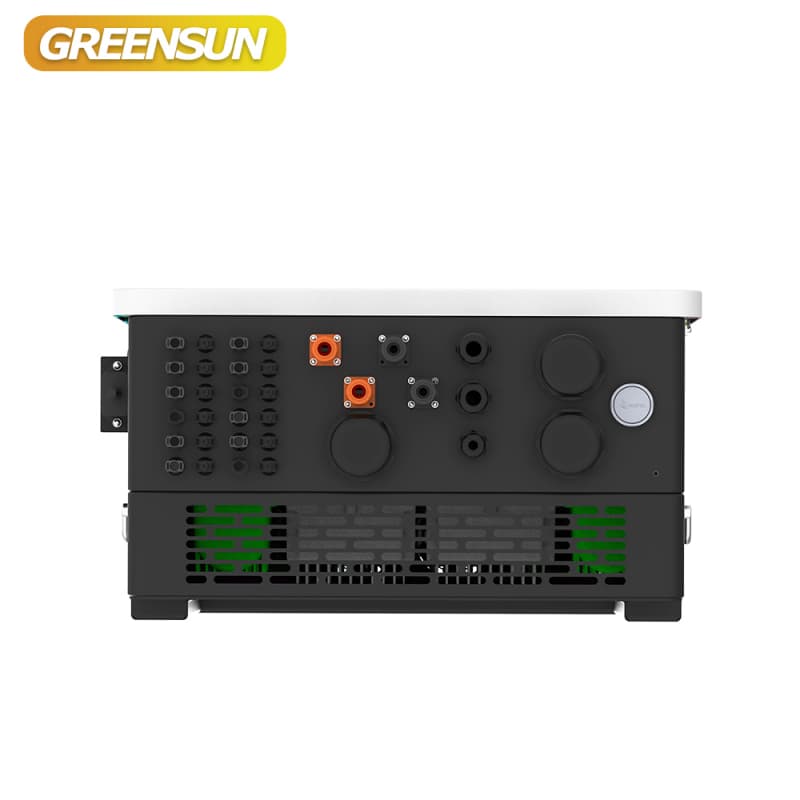

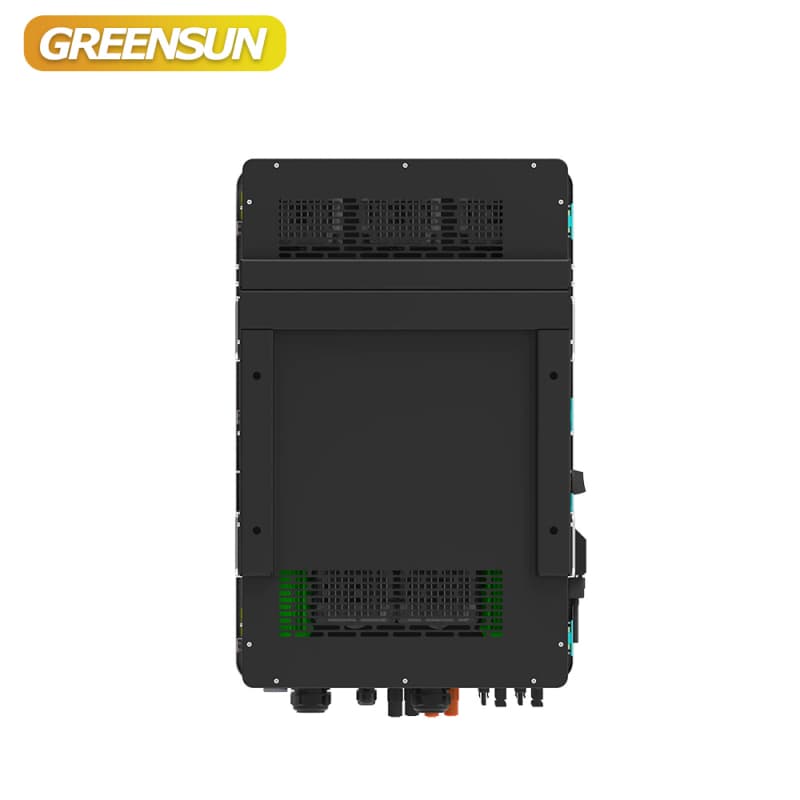

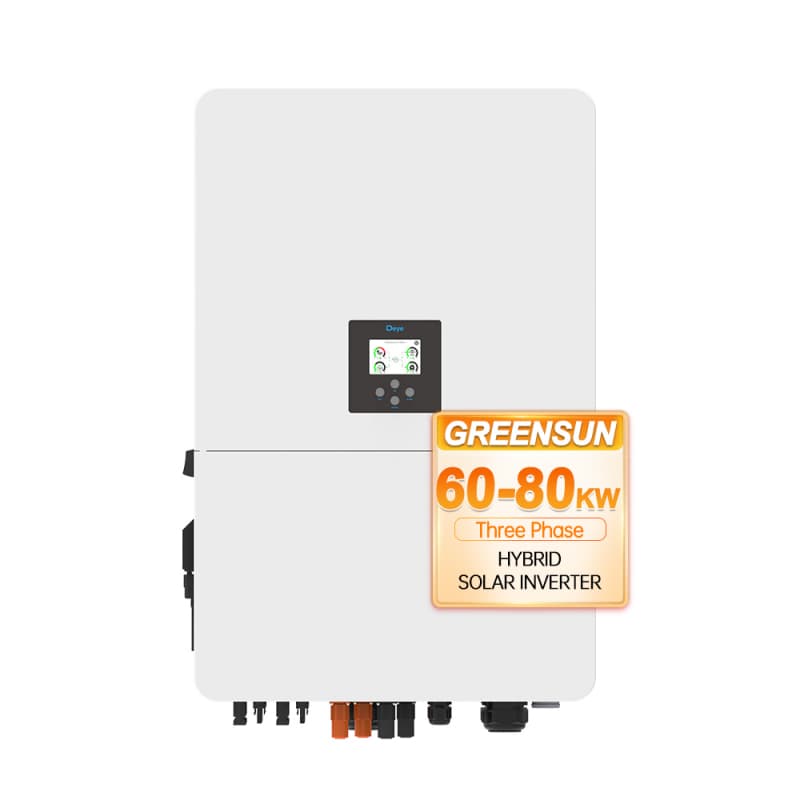

Solar Hybrid Inverter 60-80KWOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
97.5KGProduct Introduction
Inverter Parameters
|
MODEL
|
SUN-60K-SG02HP3 -EU-EM6
|
SUN-75K-SG02HP3 -EU-EM6
|
SUN-80K-SG02HP3 -EU-EM6
|
|
Battery Type
|
Lithium-ion
|
||
|
Battery Voltage Range (V)
|
160-1000
|
||
|
Max. Charging Current (A)
|
80+80
|
||
|
Max. Discharging Current (A)
|
80+80
|
||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
||
|
Number of Battery Input
|
2
|
||
|
Max. PV Access Power (W)
|
120000
|
150000
|
160000
|
|
Max. PV Input Power (W)
|
96000
|
120000
|
128000
|
|
Max. PV Input Voltage (V)
|
1000
|
||
|
Start-up Voltage (V)
|
180
|
||
|
MPPT Voltage Range (V)
|
150-850
|
||
|
Rated PV Input Voltage (V)
|
650
|
||
|
Max. Operating PV Input Current (A)
|
36+36+36+36+36+36
|
||
|
Max. Input Short-Circuit Current (A)
|
54+54+54+54+54+54
|
||
|
No. of MPP Trackers/
No. of Strings MPP Tracker
|
6/2+2+2+2+2+2
|
||
|
Rated AC Input/Output Active Power (W)
|
60000
|
75000
|
80000
|
|
Max. AC Input/Output Apparent Power (VA)
|
66000
|
82500
|
88000
|
|
Rated AC Input/Output Current (A)
|
91/87
|
113.7/108.7
|
121.3/115.9
|
|
Max. AC Input/Output Current (A)
|
100/95.7
|
125/119.6
|
133.4/127.6
|
|
Max. Continuous AC Passthrough (grid to load) (A
|
200
|
||
|
Peak Power (off-grid) (W)
|
1.5 times of rated power, 10s
|
||
|
Rated Input/Output Voltage/Range (V)
|
220/380V, 230/400V 0.85Un-1.1Un
|
||
|
Grid Connection Form
|
3L+N+PE
|
||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
||
|
Operating Temperature Range (℃)
|
-40 to +60℃, >45℃ Derating
|
||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
||
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||

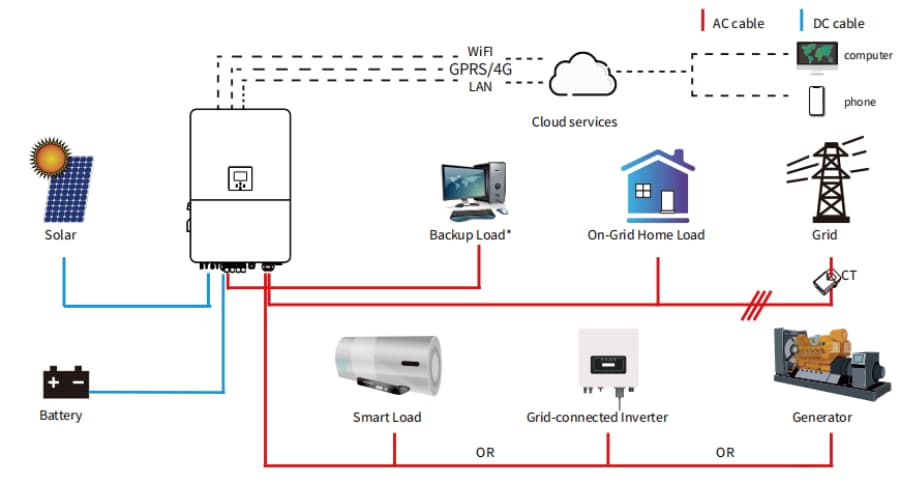

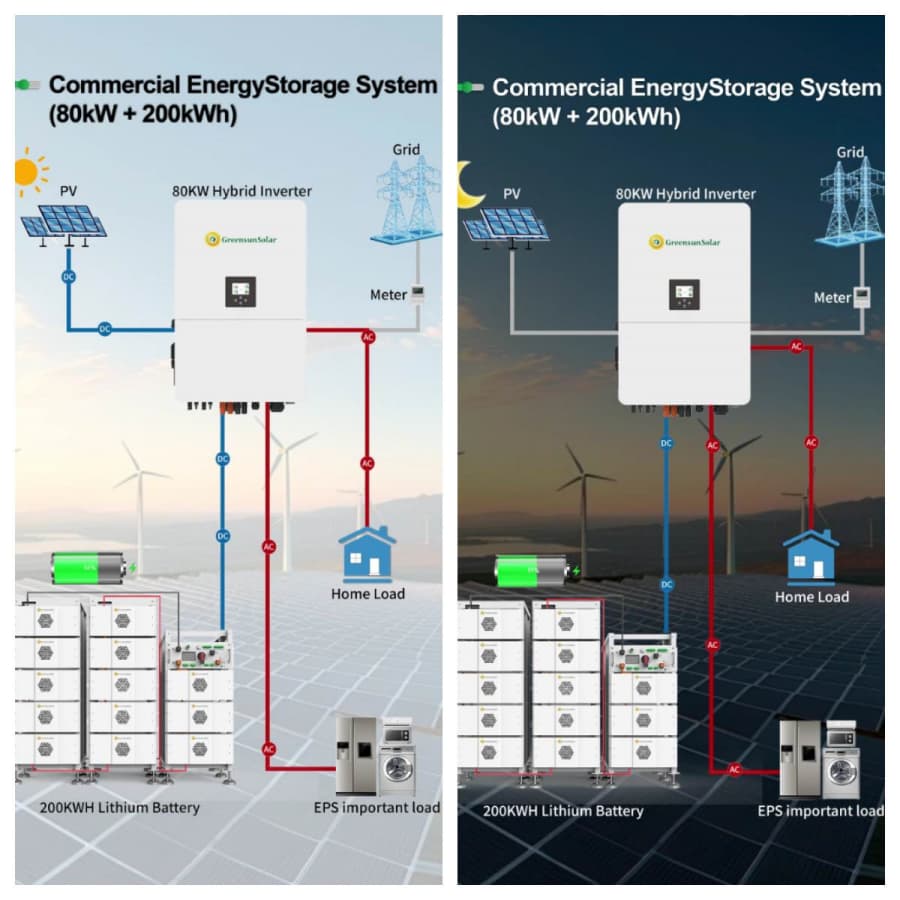

Energy storage system operation（Day&Night）

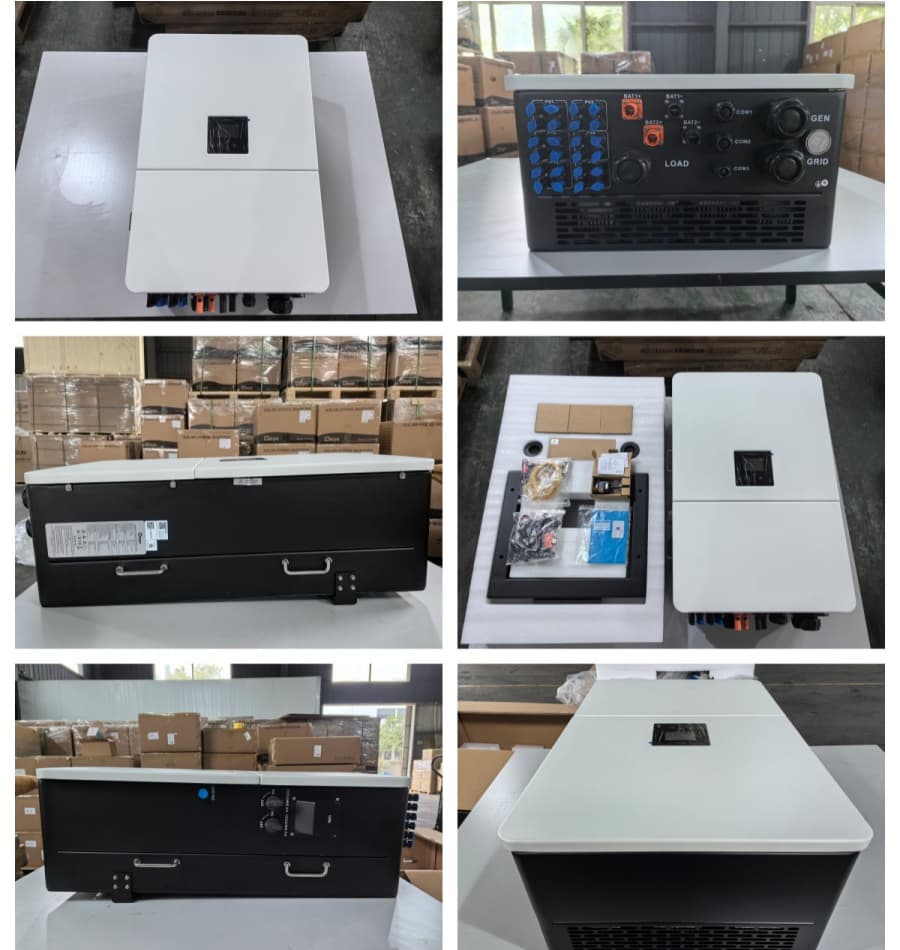

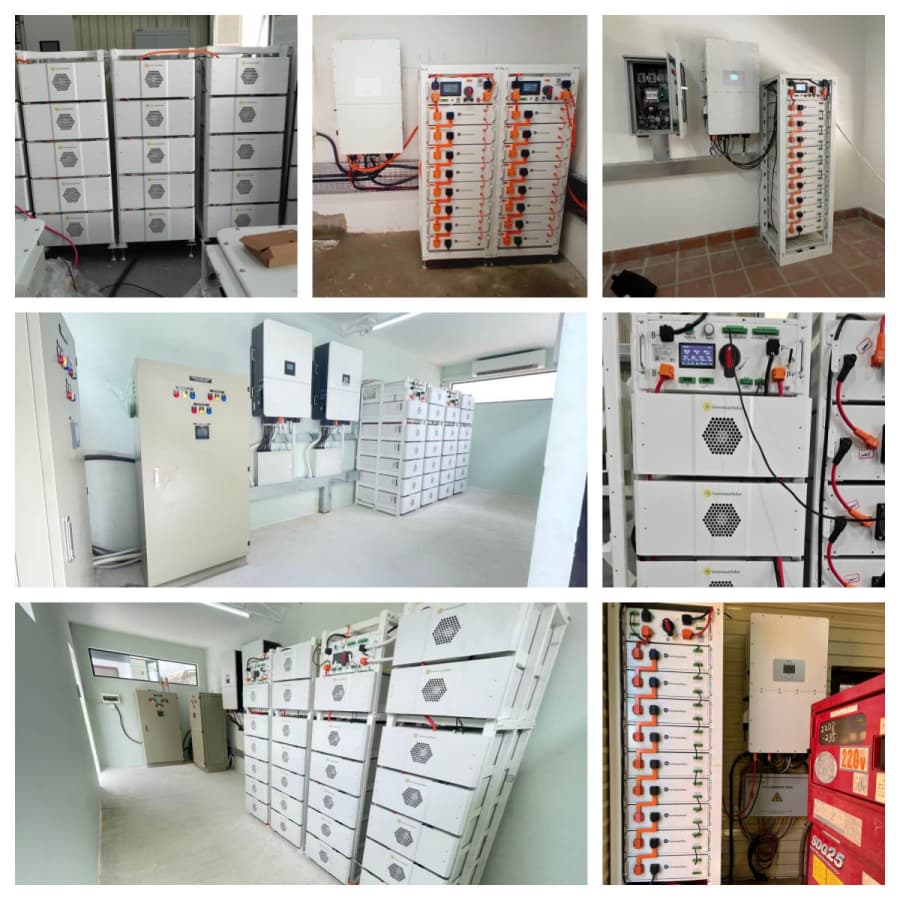

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
