Item No :

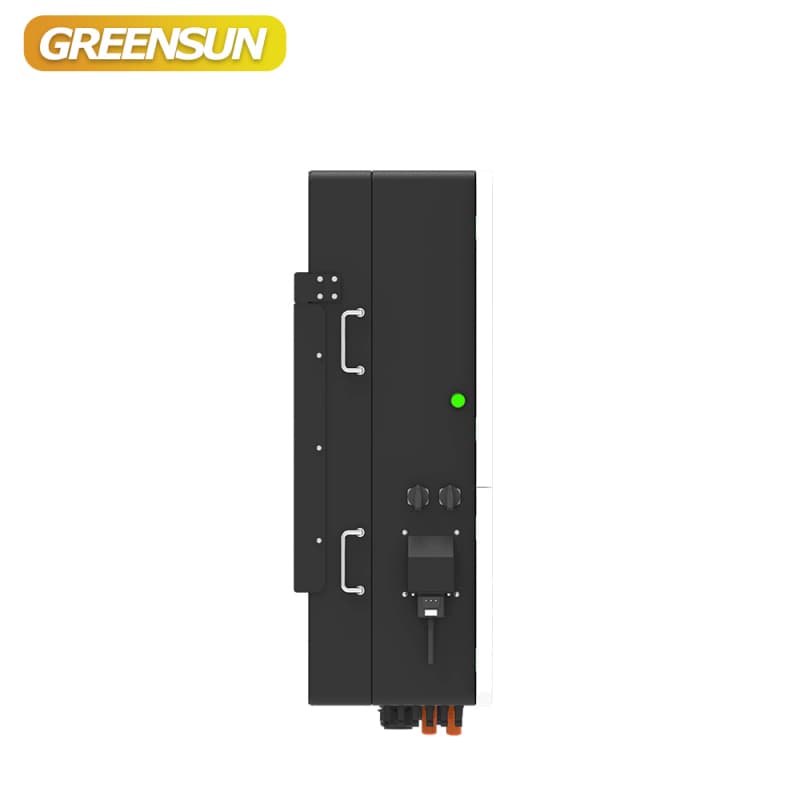

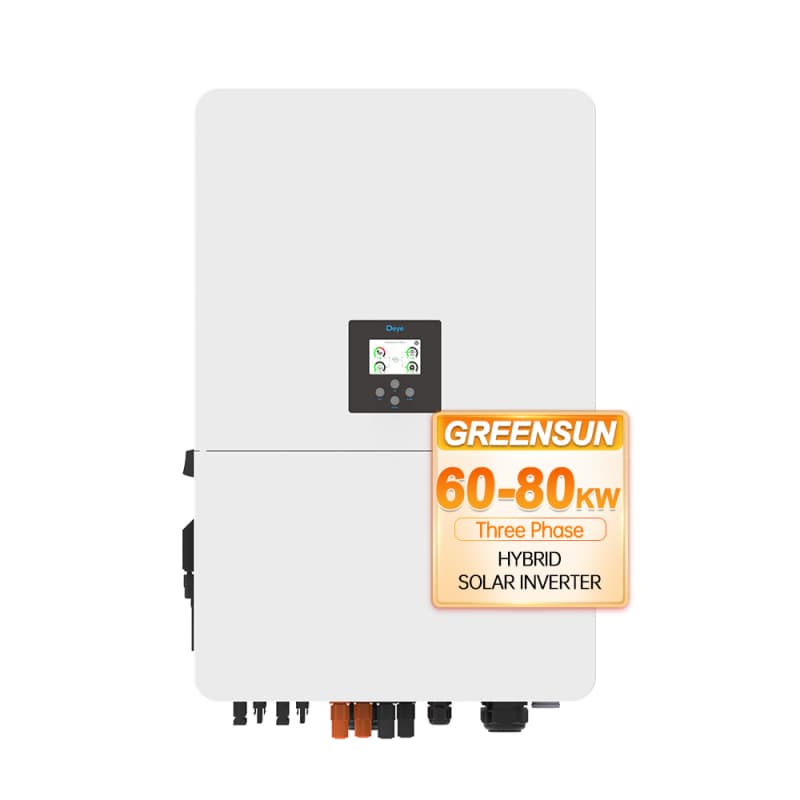

Solar Hybrid inverter 60-80KWOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
According to CapacityProduct Introduction
Inverter Parameters
| Model | SUN-60K-SG02HP3 -EU-EM6 |
SUN-75K-SG02HP3 -EU-EM6 |
SUN-80K-SG02HP3
-EU-EM6 |
| Battery Input Data | |||
| Battery Type | Lithium-ion | ||
| Battery Voltage Range (V) | 160-1000 | ||
| Max. Charging/Discharging Current (A) | 80+80/80+80 | ||
| Number of Battery Input | 2 | ||
|
PV String Input Data
|
|||
| Max. PV Input Power (W) | 96000 | 120000 | 128000 |
| Max. PV Input Voltage (V) | 1000 | ||
|
Start-up Voltage (V)
|
180 | ||
|
MPPT Range (V)
|
150-850
|
||
|
Rated PV Input Voltage (V)
|
650
|
||
|
Max. Operating PV Input Current (A)
|
36+36+36+36+36+36
|
||
|
No.of MPP Trackers
|
4 | 6 | |
|
No.of Strings per MPP Tracker
|
2+2+2+2 | 2+2+2+2+2+2 | |
|
AC Input/Output Data
|
|||
|
Rated AC Input/Output Active Power (W)
|
60000 | 75000 | 80000 |
|
Rated AC Input/Output Current (A)
|
91/87 | 113.7/108.7 | 121.3/115.9 |
|
Max. AC Input/Output Current (A)
|
91/87 | 113.7/108.7 | 121.3/115.9 |
|
Max. Continuous AC Passthrough (grid to load) (A)
|
200 | ||
|
Peak Power (off-grid) (W)
|
1.5 times of rated power, 10s | ||
|
Rated Input/Output Voltage/Range (V)
|
3L+N+PE 220/380V, 230/400V 0.85Un-1.1Un | ||
|
Rated Input/Output Grid Frequency/Range(Hz)
|
50/45-55, 60/55-65 | ||
|
Communication Interface
|
RS485/RS232/CAN | ||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
||
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||

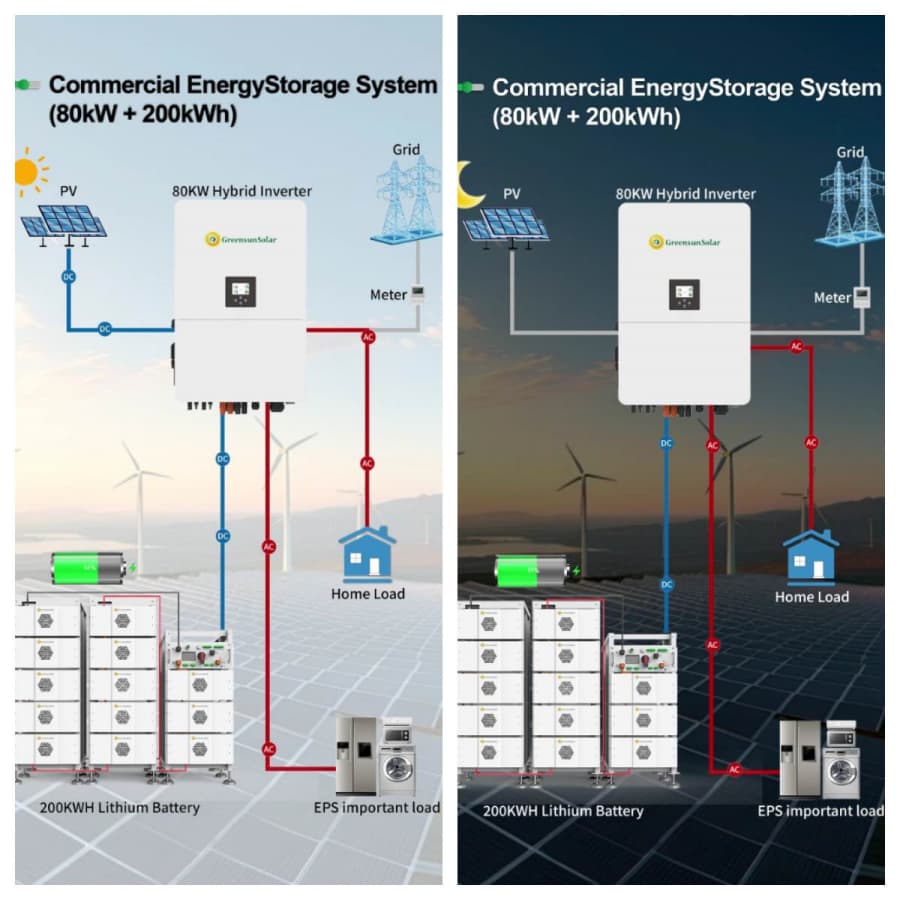

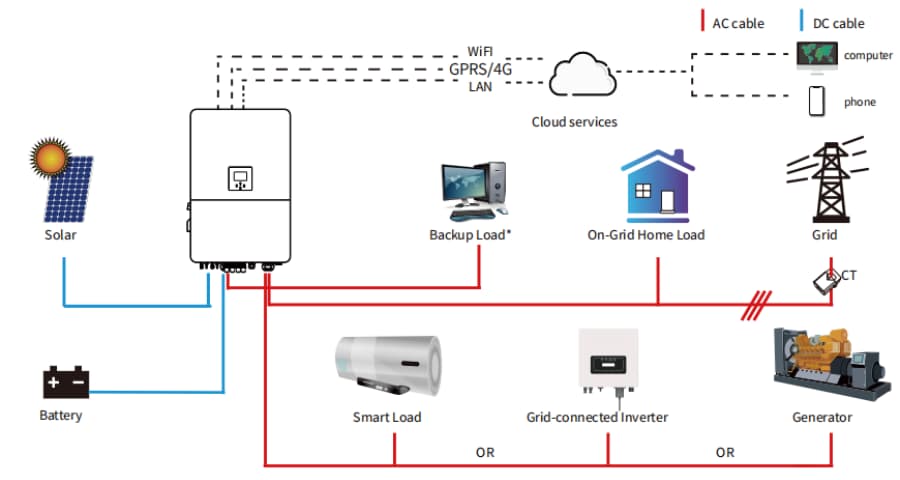

Hybrid Inverter system with Greensun lithium batteries

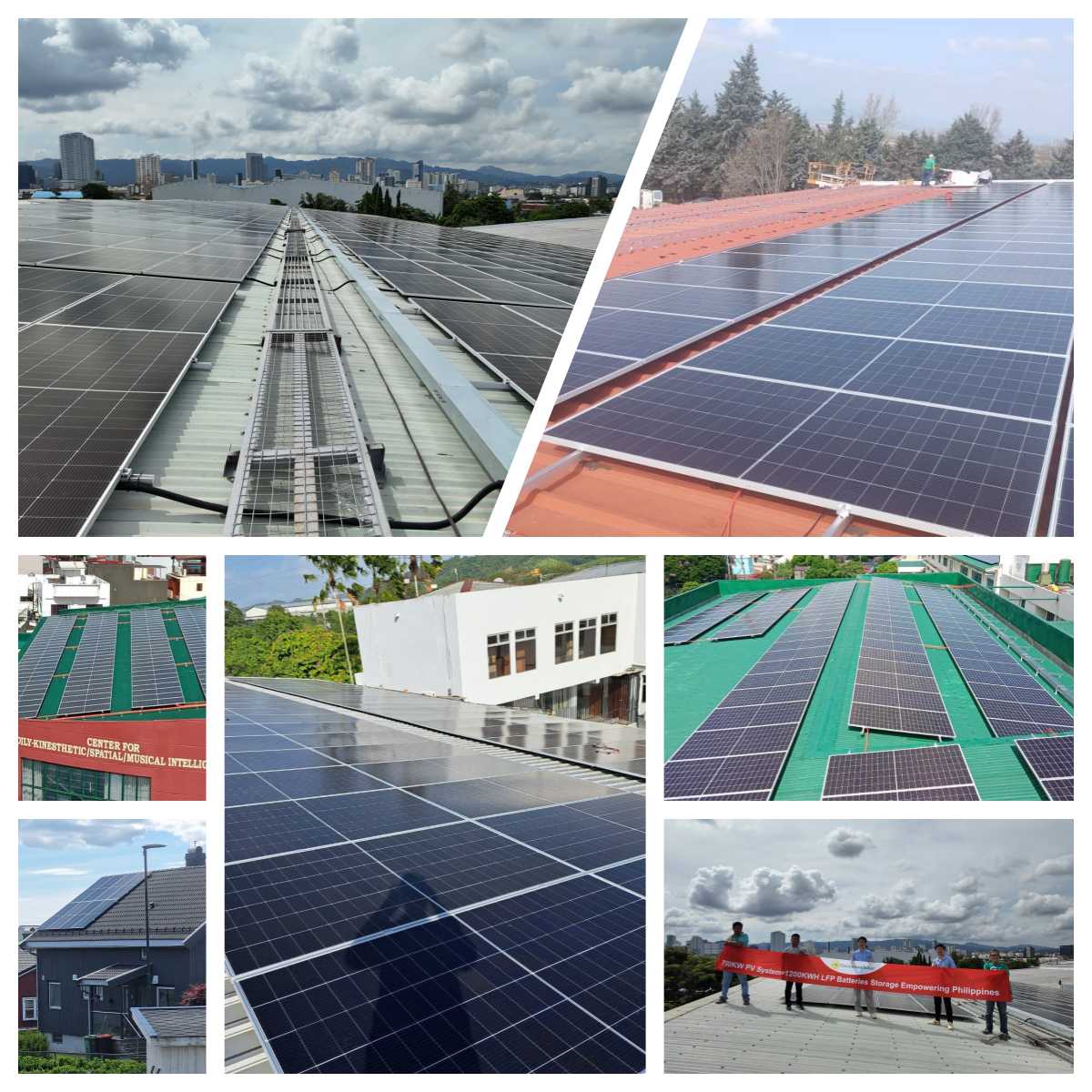

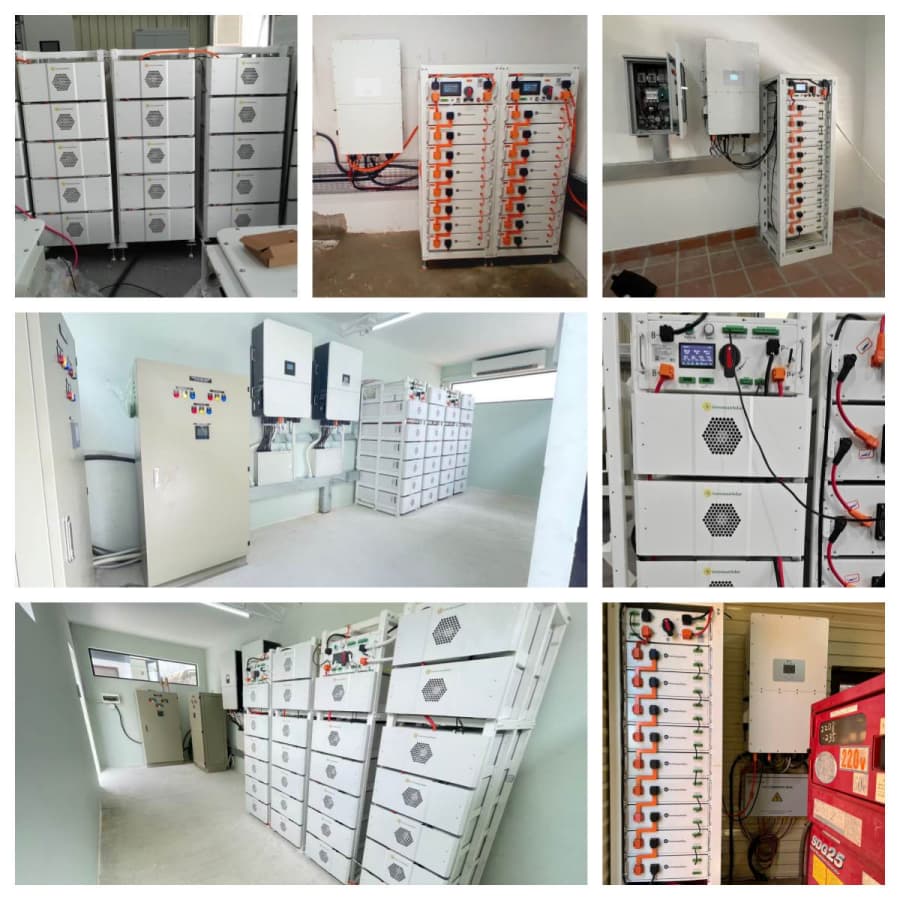

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.

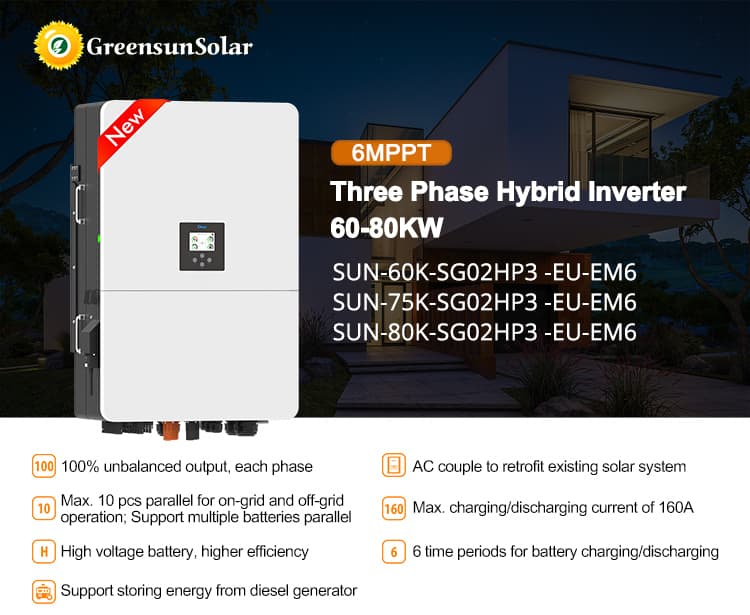

100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Support storing energy from diesel generator
IPv6 network supported
