Item No :
Atess HPS 50-150KW US VersionOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
According to model powerAtess HPS 50-150KW US Version
Inverter Parameters
| Model |
HPS50-US
|
HPS100-US
|
HPS150-U
|
|
Apparent power
|
55kVA
|
110kVA
|
165kVA
|
|
Rated power
|
50KW | 100KW | 150KW |
|
Rated voltage
|
190V 200V 208V 220V 240V | 190V 200V 208V 220V 240V | 190V 200V 208V 220V 240V |
|
Rated current
|
152A 144A 139A 131A 120A
|
304A 289A 278A 262A 241A
|
456A 433A 416A 394A 361A
|
|
Voltage range
|
171-209V 180-220V 187-229V 198-242V 216-264V
|
171-209V 180-220V 187-229V 198-242V 216-264V
|
171-209V 180-220V 187-229V 198-242V 216-264V
|
|
Rated frequency
|
50/60Hz
|
||
|
Frequency range
|
45~55/55~65Hz
|
||
|
THD
|
<3%
|
||
|
Overload capability
|
110%-10 mins
120%-1 min
|
110%-10 mins
120%-1 min
|
110%-10 mins
120%-1 min
|
|
Max. PV open-circuit voltage
|
1000V DC
|
||
|
Max. PV power
|
75kWp
|
150kWp
|
225kWp
|
|
PV MPPT voltage range
|
480V-800V DC
|
480V-800V DC
|
|
|
Battery voltage range
|
352-600V
|
||
|
Max. charge current
|
150A
|
300A
|
450A
|
|
Max. discharge current
|
156A | 313A | 467A |
|
Dimension (W/H/D)
|
950/1860/750mm
|
1200/1900/800mm
|
1200/1900/800mm
|
|
Weight
|
610kg
|
948kg
|
1230kg
|
|
Display
|
Touch screen
|
||
|
Communication
|
RS485/CAN
|
||

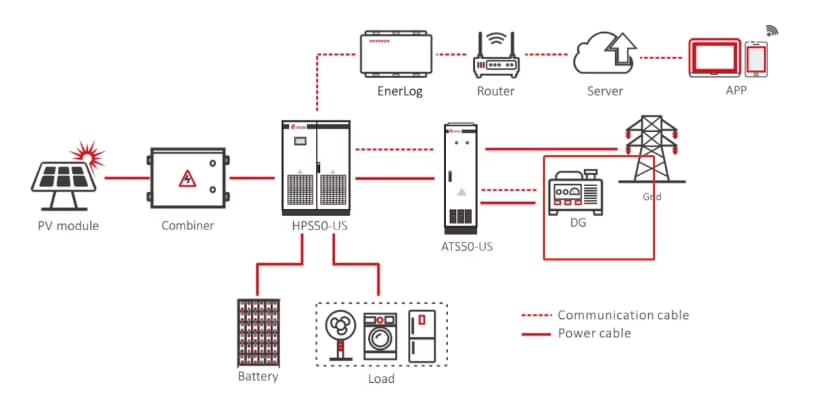

AC coupling solution for medium size C&I
Medium-size AC coupling solution that can work for self-consumption, load-shifting, and backup power, providing reliable battery storage for renewable energy.
Application Scenarios
● Schools: Medium energy storage systems support daily teaching equipment operation, emergency lighting, and reduces reliance on grid power during peak hours.
● Business districts: Commercial solar battery storage systems power retail stores, office buildings, and public facilities, stabilizing energy supply and cutting operational costs.
● Hospitals: Ensures uninterrupted power for medical devices, emergency rooms, and critical infrastructure, safeguarding patient safety.

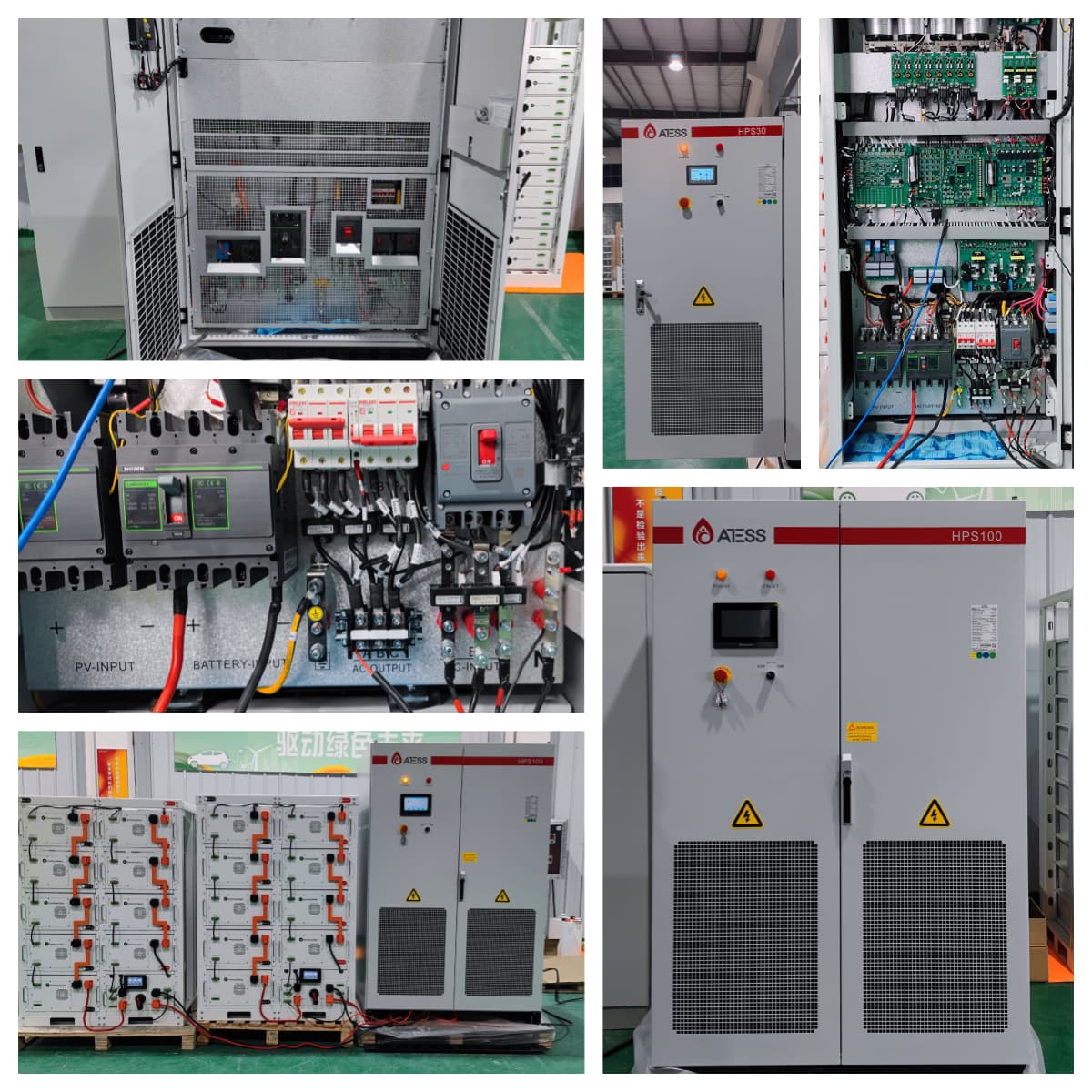

Products Display
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
2× PV oversizing for higher energy yield Max. 36A PV input, supports high‑power PV modules 200% peak output, reliable high‑power startup Max. 140A charge/discharge current, proven reliability 4ms ultra‑fast switching, seamless power for sensitive loads 97.6% conversion efficiency, low charge‑discharge losses Max.16 units parallel, easy to build large‑scale off‑grid system Lower costs, faster return & improved profitability Smart energy management: PV prioritized, surplus energy stored Noise＜46dB, quiet operation IP65 protection rating 5‑year standard warranty Smart connectivity, remote monitoring & configuration
CT Anti-Backflow + AC Coupling, Zero Feed-in Protection 150% Surge Peak Output for 5 Seconds, Withstands Continuous Impact Loads Peak Shaving, Smart Tariff Management Single Channel 27A / 9000W, 500V High Open-Circuit Voltage 10ms UPS Transfer, Uninterrupted Power for Critical Loads Battery 140A Continuous Discharge, 120A Max Charge Dry Contact Diesel Generator Control Battery-less Operation, Solar + Grid Direct Supply Dual PV / Grid Source Battery Activation Touch Color Screen
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. charging/discharging current of350A 6 time periods for battery charging/discharging Support storing energy from diesel generator Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity All-in-one hybrid inverter Programmable working mode Touchscreen LCD Quadruple capacity by paralleling 4 units Supports remote control of DG Seamless on/off grid transfer
combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
Advanced MPPT technology with up to 99.9% efficiency Up to 18+18A PV input current Outputs high quality pure sine wave AC power Up to 6 units in parallel connection Comprehensive security from hardware to software Multiple safety approvals Industrial design with a modern aesthetic look Easy to install and simple to use
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
