Item No :
US Split phase 120/240V solar inverter 4KW-10KWOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :

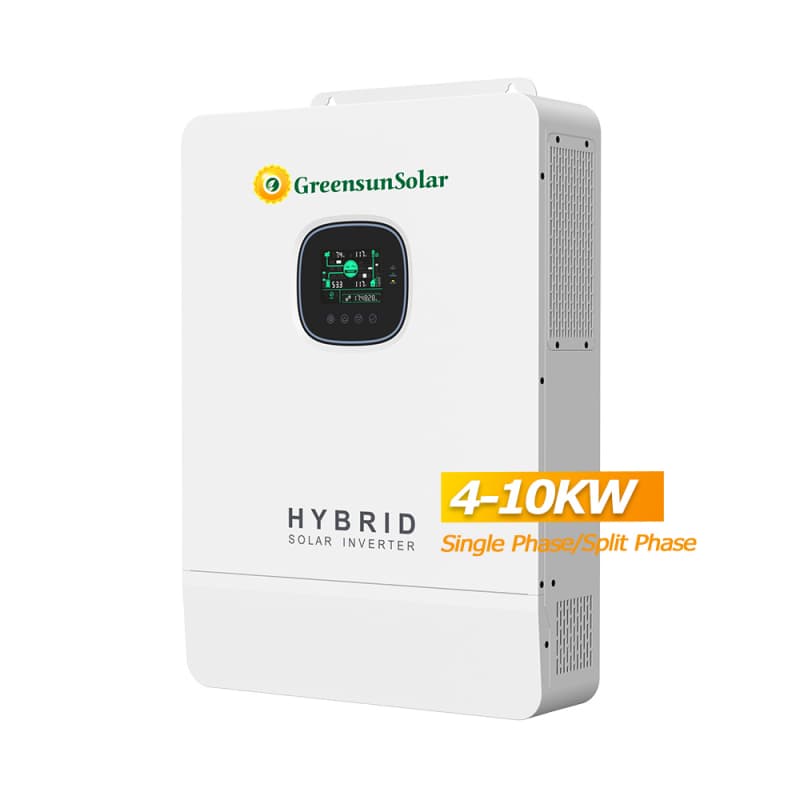

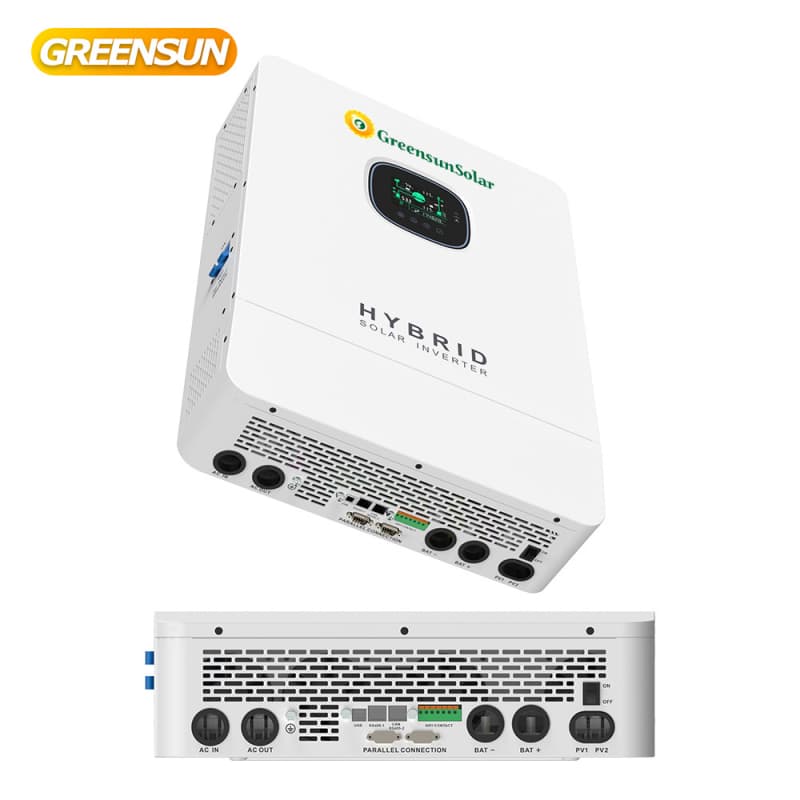

According to model powerAll In one US Split phase 120/240V solar inverter 4KW-10KW
Inverter Parameters
| MODEL | SPI-4K-UP | SPI-5K-UP | SPI-6K-UP | SPI-6.5K-UP | SPI-8K-UP | SPI-10K-UP |
|
Rated Output Power
|
4000W | 5000W | 6000W | 6500W | 8000W | 10000W |
|
Max. Peak Power
|
8000VA | 10000VA | 12000VA | 13000VA | 16000VA | 20000VA |
|
Rated Output Voltage
|
120/240Vac（split phase/single phase）
|
|||||
|
Rated AC Frequency
|
50/60Hz
|
|||||
|
Switch Time
|
10ms (typical value)
|
|||||
|
Parallel Capacity
|
1～6 units
|
|||||
|
Battery Type
|
Lithium-ion battery/lead-acid battery/user-defined battery
|
|||||
|
Rated Battery Voltage
|
48Vdc
|
|||||
|
Battery Voltage Range
|
40～60Vd
|
|||||
|
Max. Mains / Generator Charging
Current
|
60A | 60A | 80A | 80A | 100A | 120A |
|
Max. Hybrid Charging Current
|
100A | 120A | 140A | 140A | 180A | 200A |
|
Num. of MPPT Trackers
|
2 | |||||
|
Max. PV Array Power
|
3000W+3000W
|
3800W+3800W
|
4500W+4500W
|
5000W+5000W
|
11,000W
|
11,000W
|
|
Max.input current
|
18+18A
|
22/22A
|
||||
|
Max.Voltage of Open Circuit
|
550Vdc+550Vdc
|
|||||
|
MPPT Voltage Range
|
150-450V | |||||
|
Dimension
|
584.6*410*133 mm
|
620*435*130mm
|
||||
|
Weight
|
18.9 kg
|
20kg
|
21kg | |||
|
Protection
|
IP20, for indoor use only
|
|||||
|
Cooling Method
|
Intelligent fan
|
|||||
|
External Modules (Optional)
|
Wi-Fi/GPRS
|
|||||

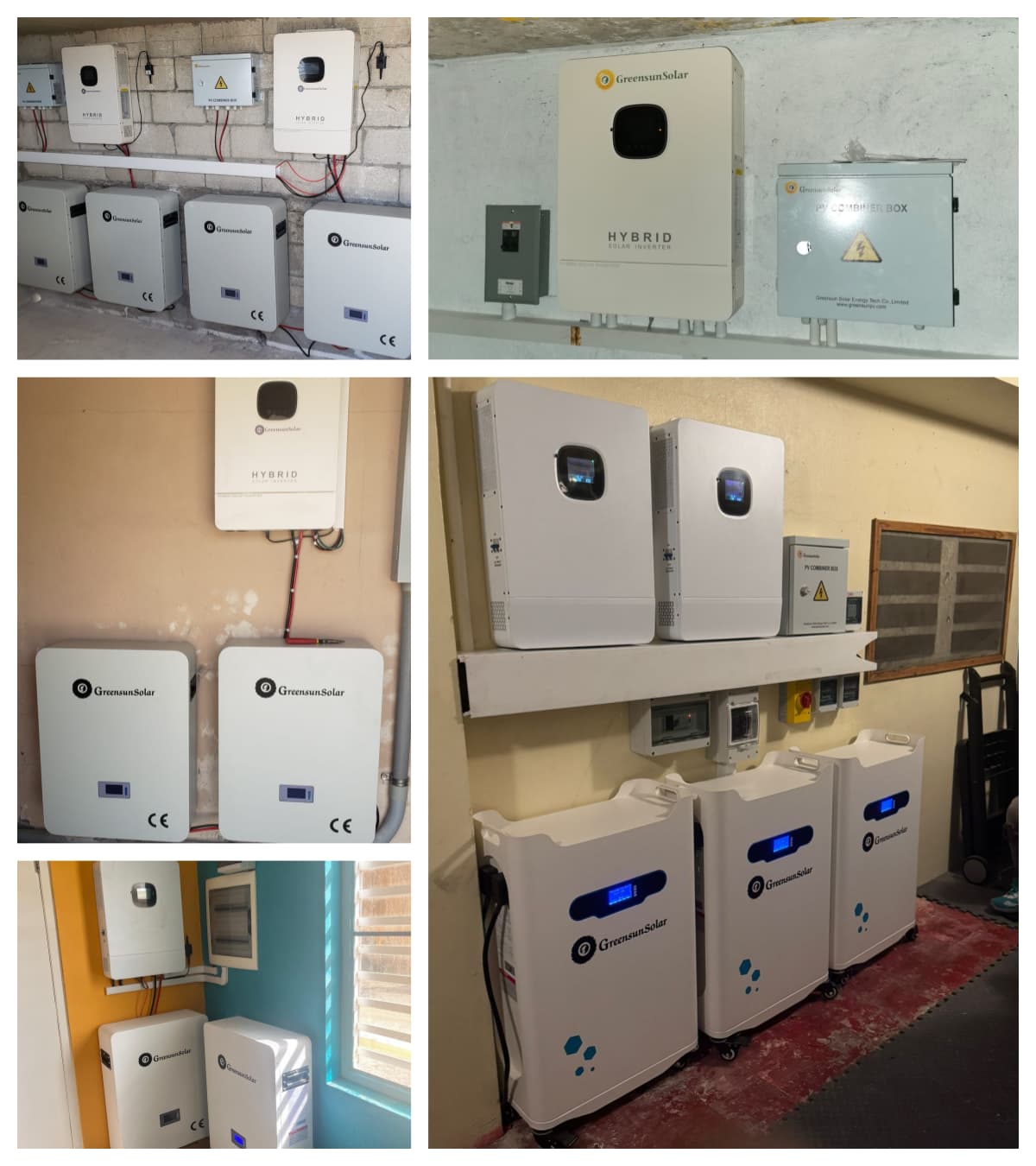

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. charging/discharging current of350A 6 time periods for battery charging/discharging Support storing energy from diesel generator Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity All-in-one hybrid inverter Programmable working mode Touchscreen LCD Quadruple capacity by paralleling 4 units Supports remote control of DG Seamless on/off grid transfer
combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
Advanced MPPT technology with up to 99.9% efficiency Up to 18+18A PV input current Outputs high quality pure sine wave AC power Up to 6 units in parallel connection Comprehensive security from hardware to software Multiple safety approvals Industrial design with a modern aesthetic look Easy to install and simple to use
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Advanced MPPT with up to 99.9% efficiency Up to 22A*2 PV input current With IP65 protection degree Up to 200A charging current Supports Li-ion battery BMS communication
Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging Intelligent Power supply Mode, Intelligent Distribution of Solal Panel/Mains/ Battery Power Shares Communication Option: External WIFI, Supervise at Any Time High Precision of output voltage,±5%, Take Care of Your Appliances
