Item No :
SUN-6.6K-OG03 LP1-EU-AM2Order(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
8.6KGProduct Introduction
Inverter Parameters
| Model |

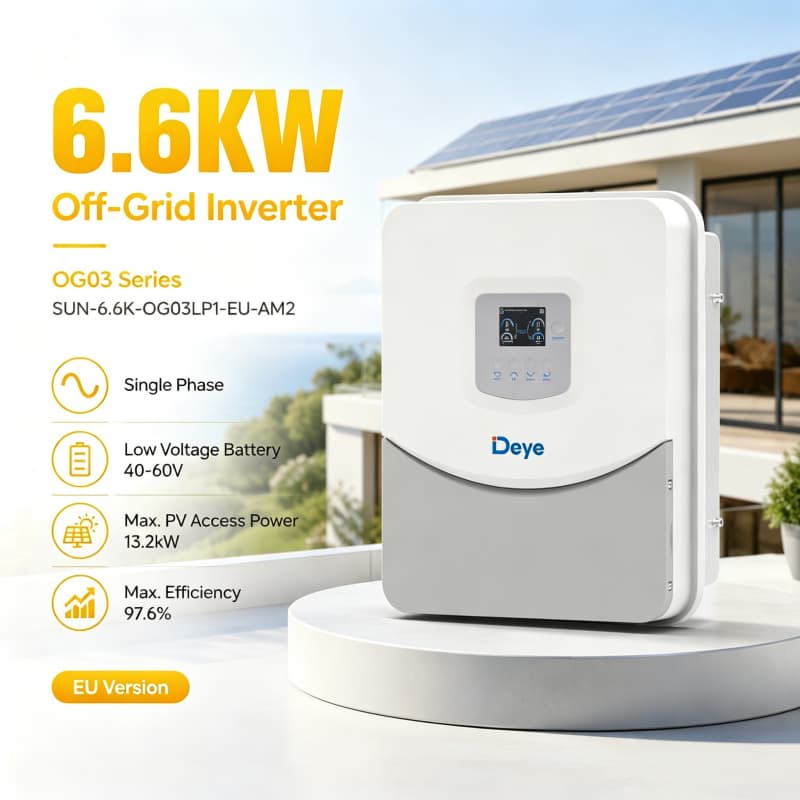

SUN-6.6K-OG03-LP1-EU-AM2
|
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
Number of Battery Input
|
1 |
|
Battery Voltage Range (V)
|
40-60
|
|
Max. Charging/Discharging Current (A)
|
140
|
|
Max. PV Input Power (W)
|
10560
|
|
MPPT Voltage Range (V)
|
150-425
|
|
Max. Input Short-Circuit Current (A)
|
27+27
|
|
No. of MPP Trackers/No. of Strings MPP Tracker
|
2/1+1
|
|
Rated output voltage
|
230 L+N+PE |
|
Ingress Protection(IP) Rating
|
IP 65
|
|
Weight (kg)
|
8.6
|
|
Type of Cooling
|
Intelligent Air Cooling
|
|
Warranty
|
Standard 5 years, extendable warranty
|
|
Safety / EMC Standard
|
IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4
|
Official authorized qualification

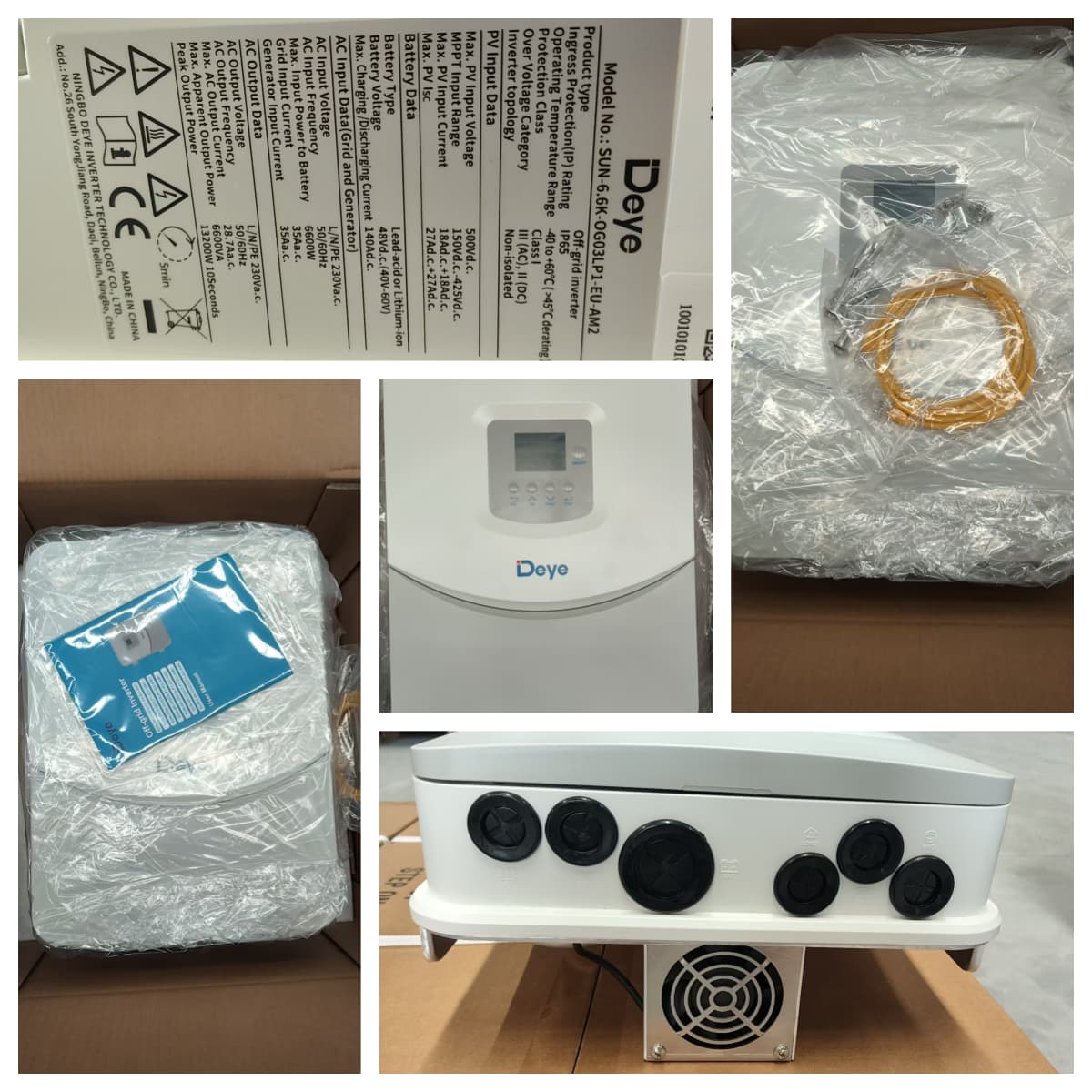

Products Display
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.

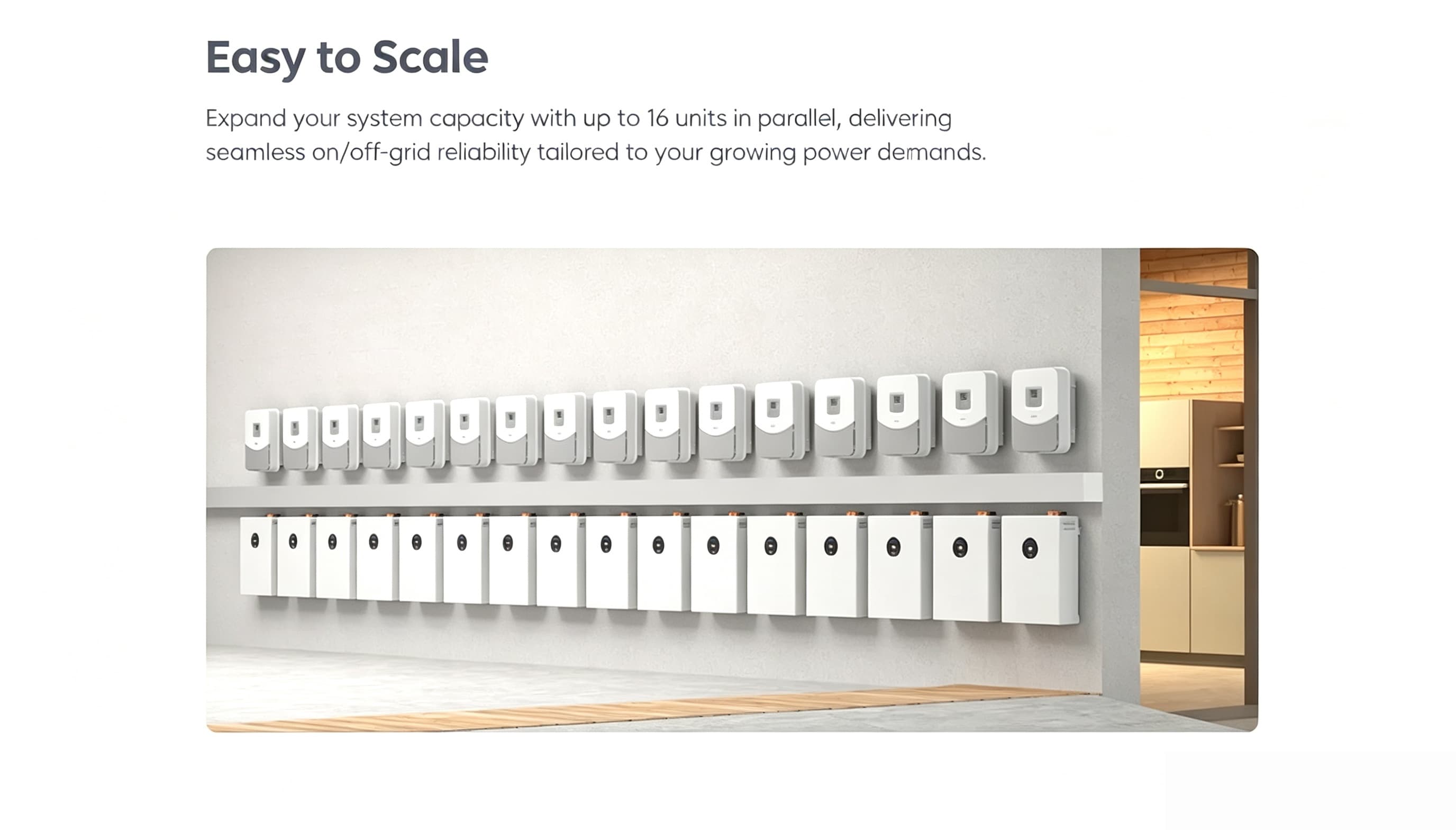

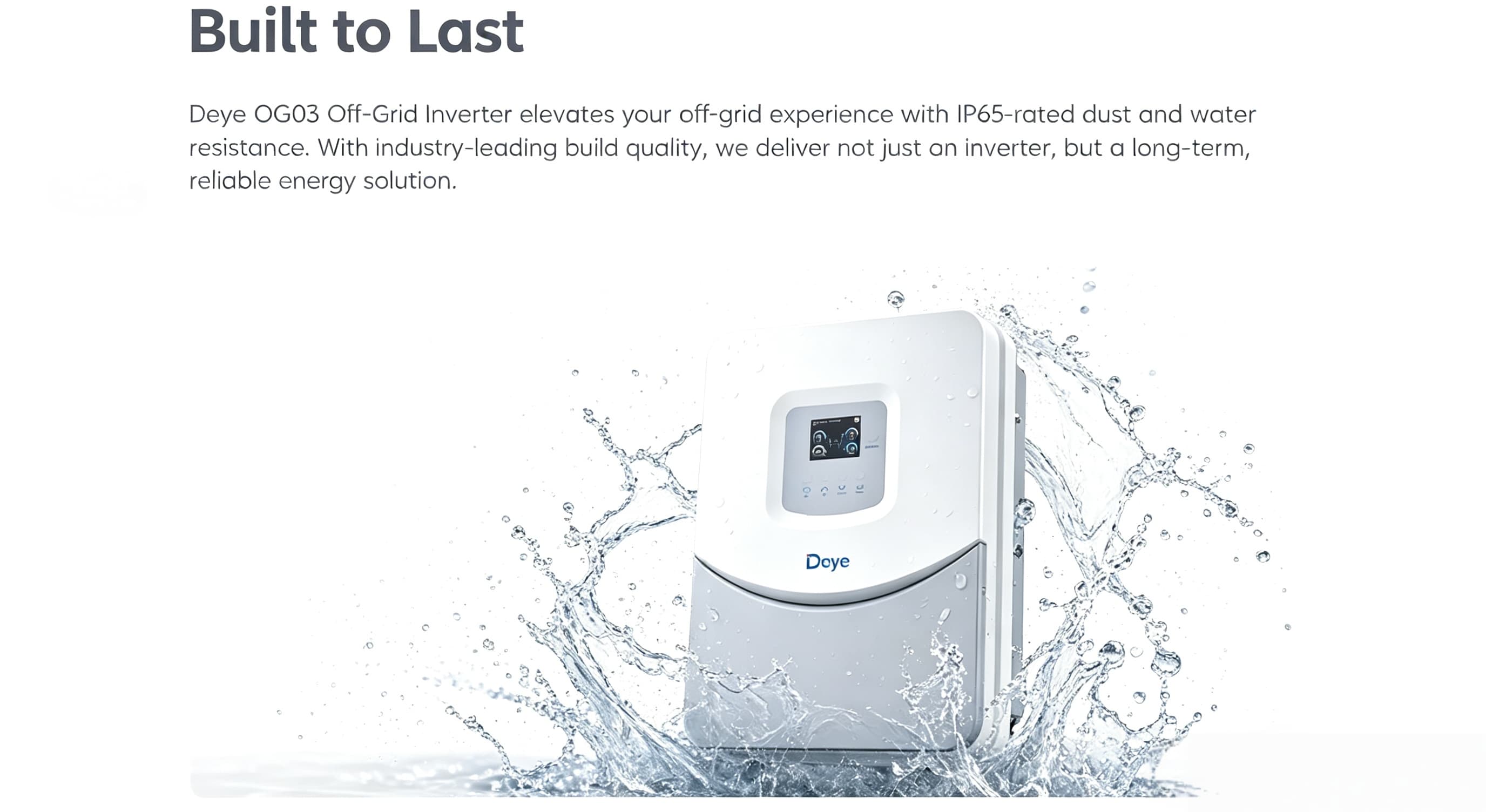

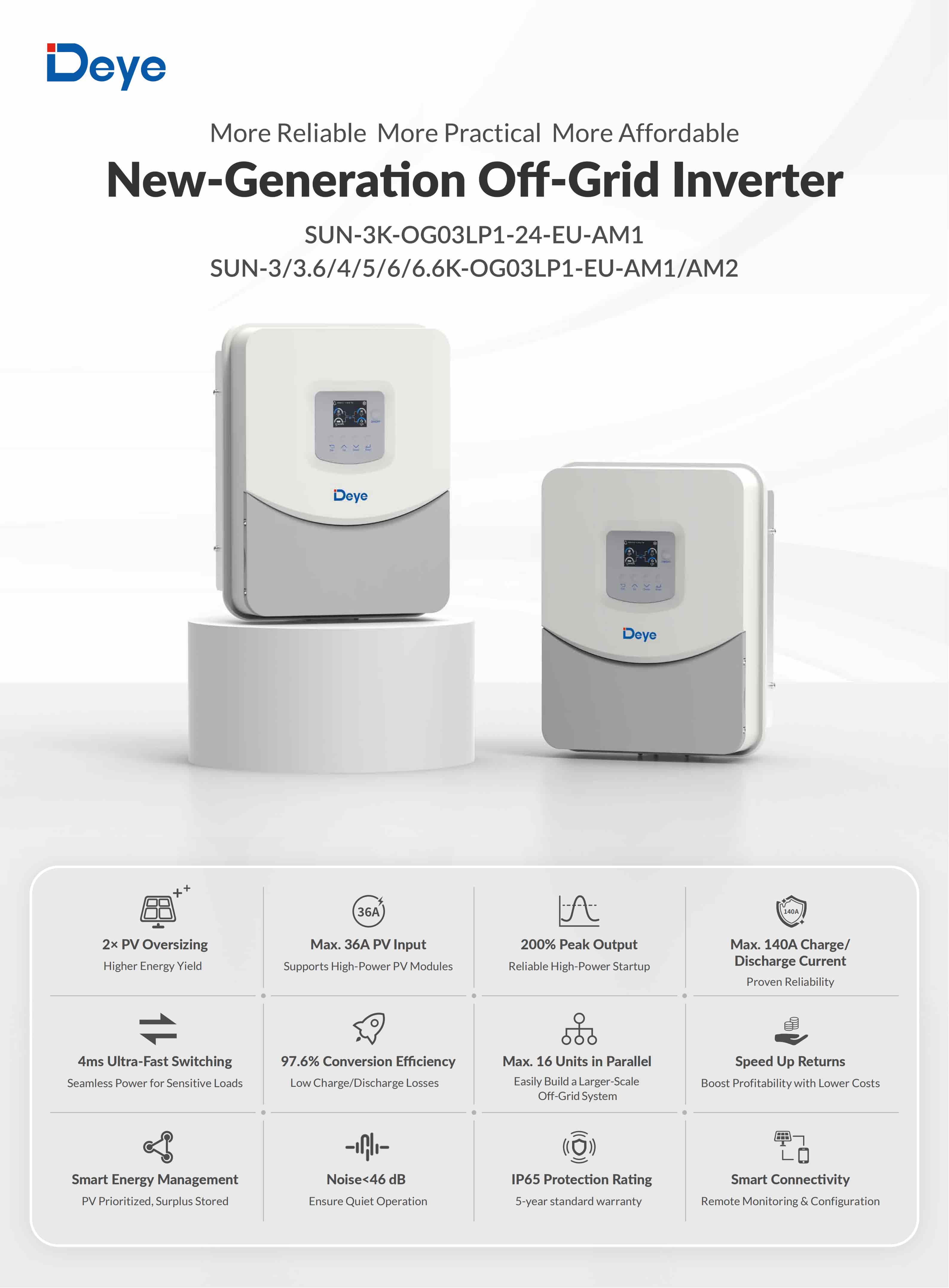

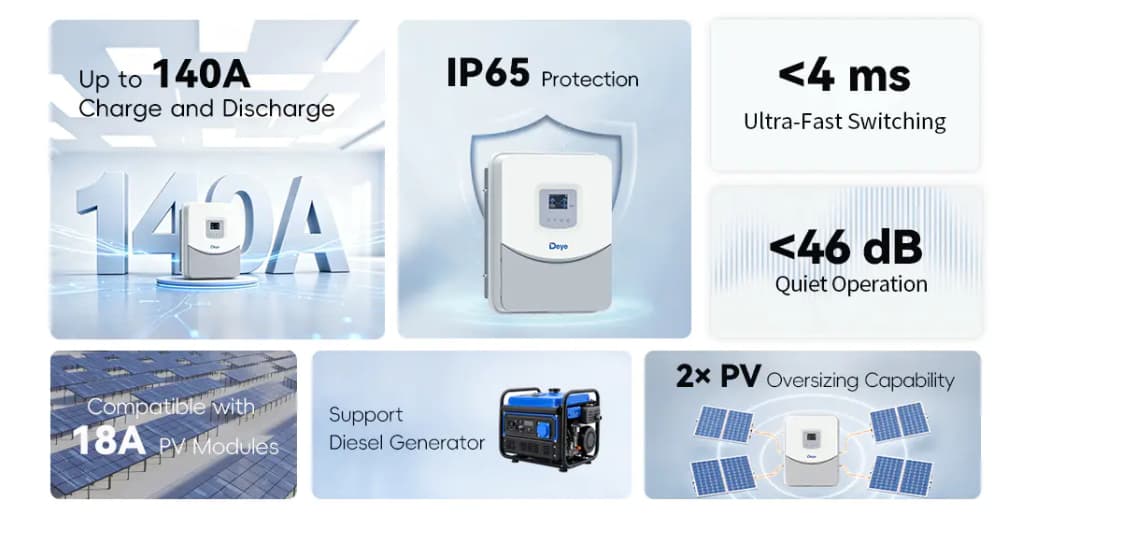

2× PV oversizing for higher energy yield Max. 36A PV input, supports high‑power PV modules 200% peak output, reliable high‑power startup Max. 140A charge/discharge current, proven reliability 4ms ultra‑fast switching, seamless power for sensitive loads 97.6% conversion efficiency, low charge‑discharge losses Max.16 units parallel, easy to build large‑scale off‑grid system Lower costs, faster return & improved profitability Smart energy management: PV prioritized, surplus energy stored Noise＜46dB, quiet operation IP65 protection rating 5‑year standard warranty Smart connectivity, remote monitoring & configuration
