Item No :
SUN-50K-SG02HP3 -EU-BM4Order(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
65KGProduct Introduction
Inverter Parameters
|
Model
|
SUN-50K-SG02HP3 -EU-BM4-P
|
|
Battery Type
|
Lithium-ion
|
|
Battery Voltage Range (V)
|
160-800
|
|
Max. Discharging Current (A)
|
100
|
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
Number of Battery Input
|
1
|
|
Max. PV Input Power (W)
|
80000
|
|
MPPT Voltage Range (V)
|
150-850
|
|
Max. Input Short-Circuit Current (A)
|
55+55+55+55
|
|
No. of MPP Trackers/
No. of Strings MPP Tracker
|
4/2+2+2+2
|
|
Rated Input/Output Voltage/Range (V)
|
220/380V, 230/400V 0.85Un-1.1Un
|
|
Grid Connection Form
|
3L+N+PE
|
|
MPPT Efficiency
|
>99%
|
|
Communication Interface
|
WIFI/RS485/CAN
|
|
Ingress Protection(IP) Rating
|
IP 65
|
|
Cabinet Size (WxHxD mm)
|
528×793×278 (Excluding Connectors and Brackets)
|
|
Weight (kg)
|
65
|
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
Official authorized qualification

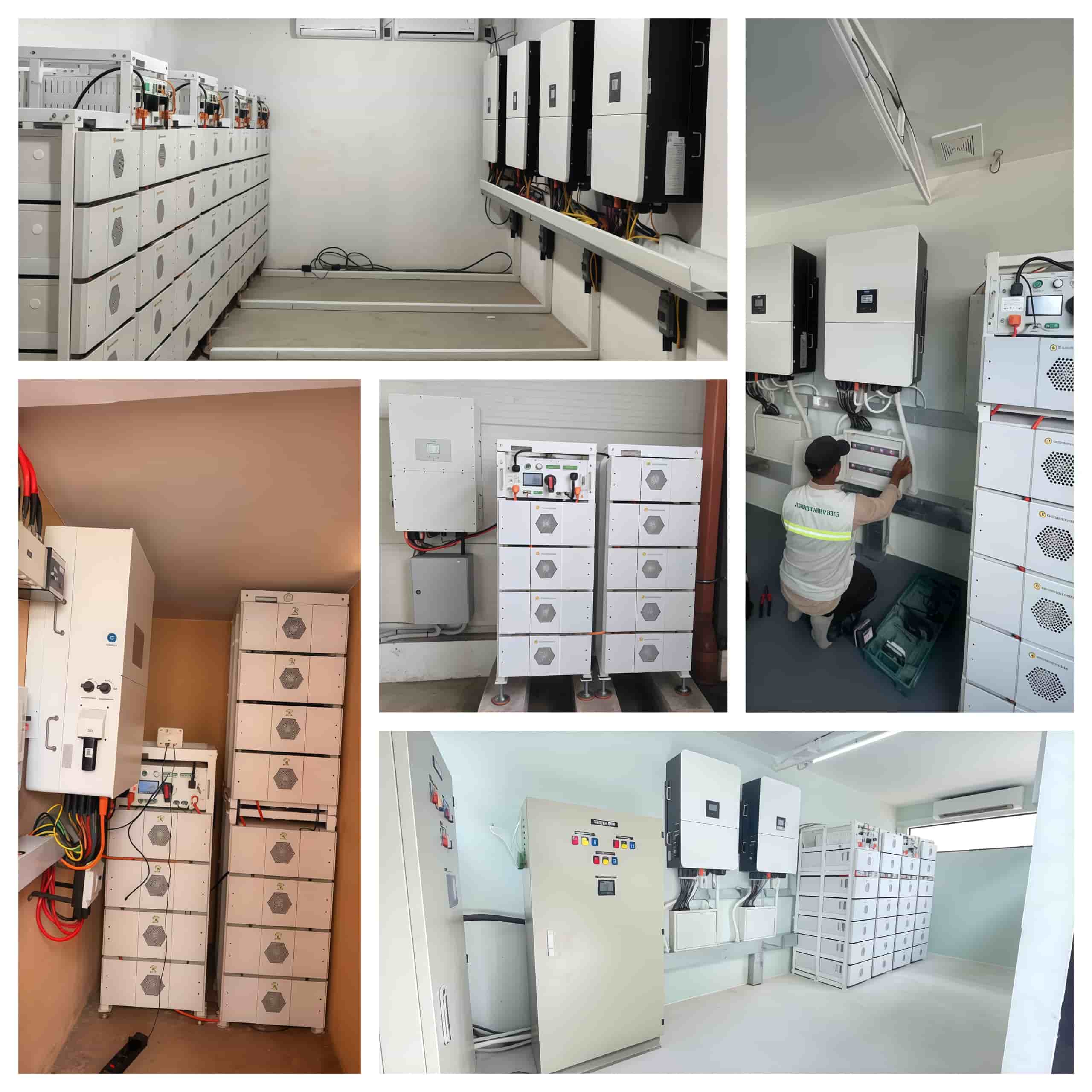

Products Display
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. charging/discharging current of350A 6 time periods for battery charging/discharging Support storing energy from diesel generator Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

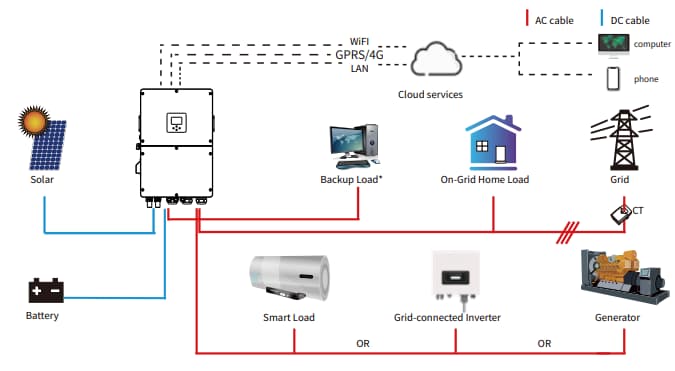

combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits

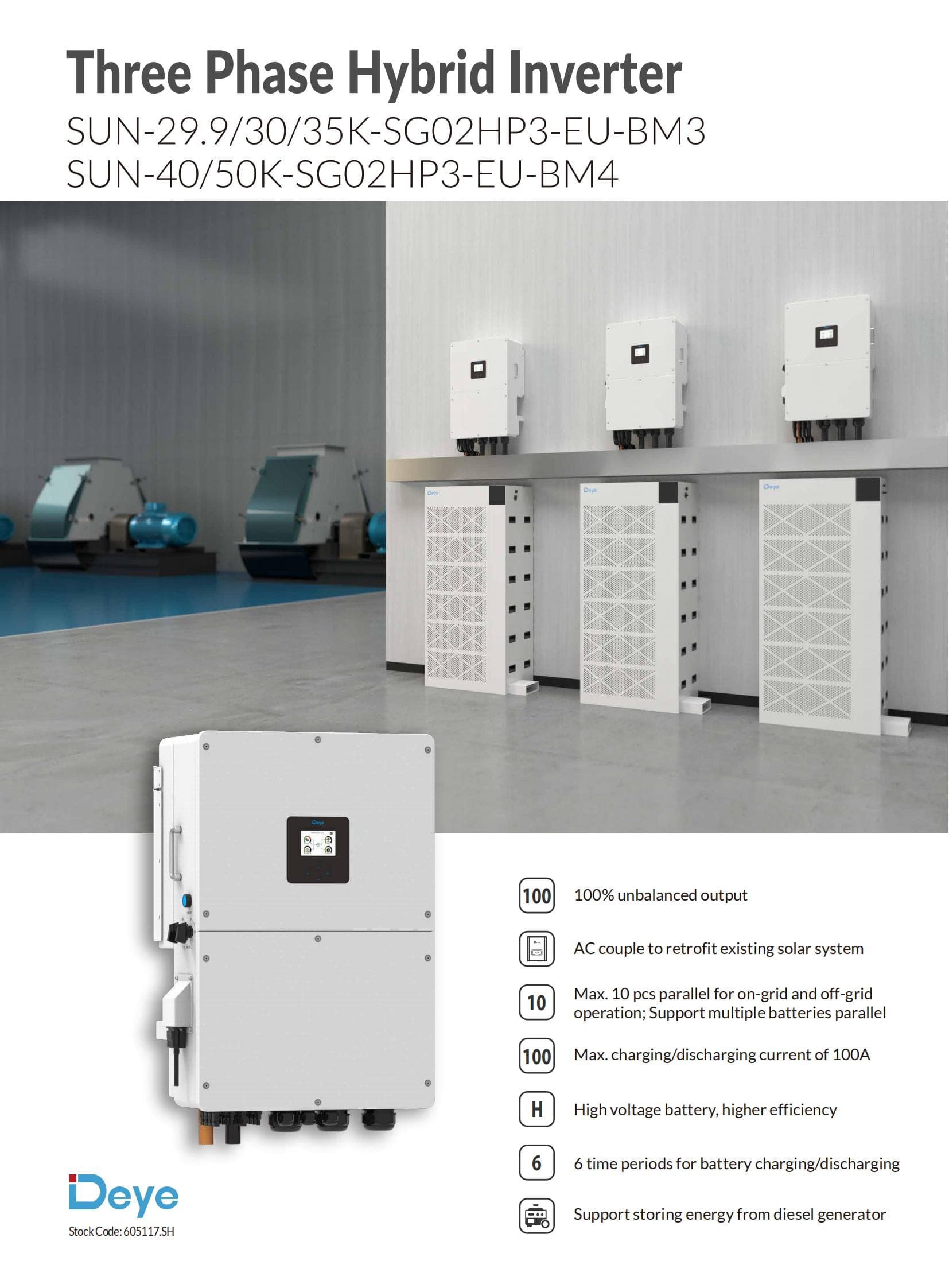

100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Advanced MPPT with up to 99.9% efficiency Up to 22A*2 PV input current With IP65 protection degree Up to 200A charging current Supports Li-ion battery BMS communication
Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging Intelligent Power supply Mode, Intelligent Distribution of Solal Panel/Mains/ Battery Power Shares Communication Option: External WIFI, Supervise at Any Time High Precision of output voltage,±5%, Take Care of Your Appliances
Colorful touch LCD, IP65 protection degree AC couple to retrofifit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Supports 100% three-phase unbalanced output • 200% PV input capacity to maximize solar energy utilization • Max. 200% overload capability in off-grid mode • Charging and discharging currents of up to 200A • Switching time < 10ms
