Item No :

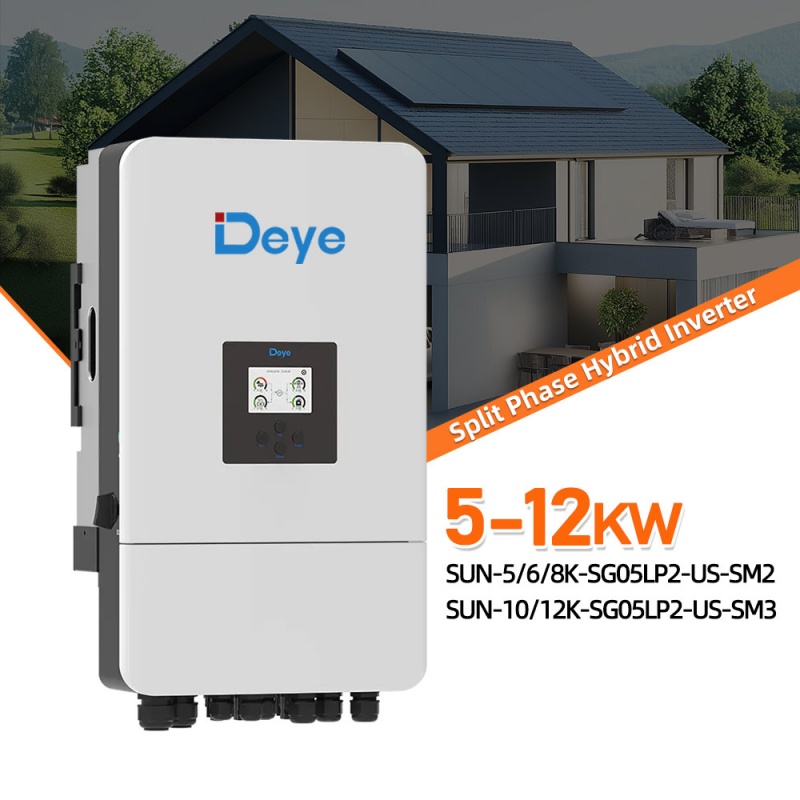

SUN-5-12K-SG05 LP2-US-SM3Order(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
29.2KGProduct Introduction
Inverter Parameters
|
Model
|
SUN-5K-SG05
LP2-US-SM2
|
SUN-6K-SG05
LP2-US-SM2
|
SUN-8K-SG05
LP2-US-SM2
|
SUN-10K-SG05
LP2-US-SM3
|
SUN-12K-SG05
LP2-US-SM3
|
|
BatteryType
|
Lead-acid or Lithium-ion
|
||||
|
BatteryVoltage Range (V)
|
40-60
|
||||
|
Max. ChargingCurrent (A)
|
120
|
135
|
190
|
220 | 220 |
|
Max. DischargingCurrent(A)
|
120 | 135 | 190 | 220 | 220 |
|
Number of Battery Input
|
2 | ||||
|
Max. PV Input Power (W)
|
8000
|
9600
|
12800
|
16000
|
19200
|
|
Max. PV Input Voltage (V)
|
500
|
||||
|
Start-up Voltage (V)
|
125
|
||||
|
MPPT VoltageRange (V)
|
150-425
|
||||
|
Rated PV Input Voltage (V)
|
370
|
||||
|
Max. OperatingPV Input Current(A)
|
18+18
|
32+32
|
32+32+32
|
||
|
Max. Input Short-Circuit Current (A)
|
27+27
|
60+60
|
60+60+60
|
||
|
No. of MPPTrackers/
No. of Strings MPP Tracker
|
2/1+1
|
2/2+2
|
3/2+2+2
|
||
|
Max.Continuous ACPassthrough (grid to load)(A)
|
100
|
||||
|
Peak Power (off-grid) (W)
|
2 times of rated power, 10s
|
||||
|
Power Factor AdjustmentRange
|
0.8 leading to 0.8lagging
|
||||
|
Rated Input/OutputVoltage/Range (V)
|
120/240; 208 0.88Un＜U＜1.1Un
|
||||
|
Grid Connection Form
|
2L+N+PE
|
||||
|
TotalCurrentHarmonic Distortion THDi
|
<3% (of nominal power)
|
||||
|
Max. Efficiency
|
97.6%
|
||||
|
Euro Efficiency
|
96.5%
|
||||
|
MPPT Efficiency
|
>99%
|
||||
|
Rated ACInput/OutputActive Power (W)
|
5000
|
6000
|
8000
|
10000
|
12000
|
|
Max.AC Input/Output Apparent Power (VA)
|
5000
|
6000 | 8000 | 10000 | 12000 |
|
OperatingTemperatureRange (℃)
|
-40 to +60℃, >45℃ Derating
|
||||
|
Ingress Protection(IP) Rating
|
TYPE 3R
|
||||
|
Type Of Cooling
|
Intelligent air cooling
|
||||
|
Cabinet Size (WxHxD mm)
|
386×606.5×240（Excluding connectors and brackets）
|
||||
|
Weight (kg)
|
29.2
|
||||
|
Safety /EMC Standard
|
FCC, UL 1741
|
||||
Official authorized qualification

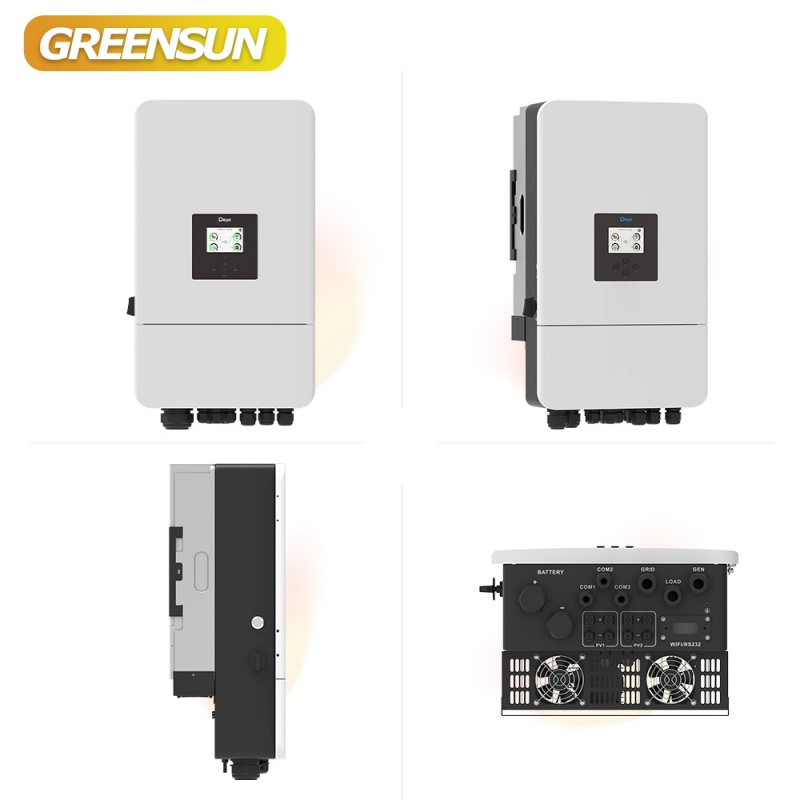

Products Display
