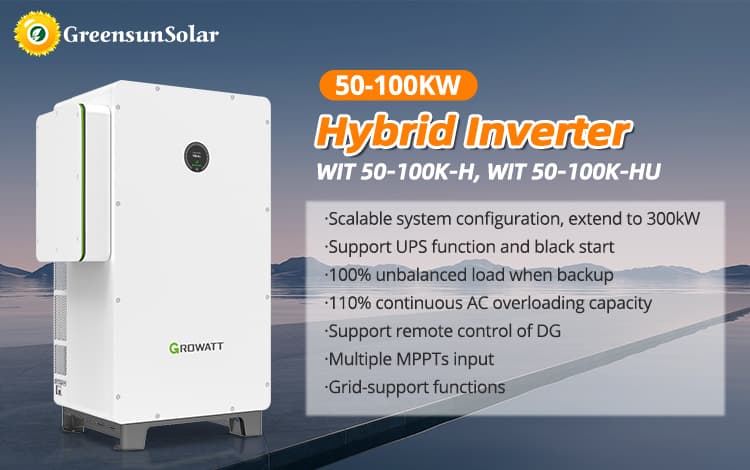

Item No :

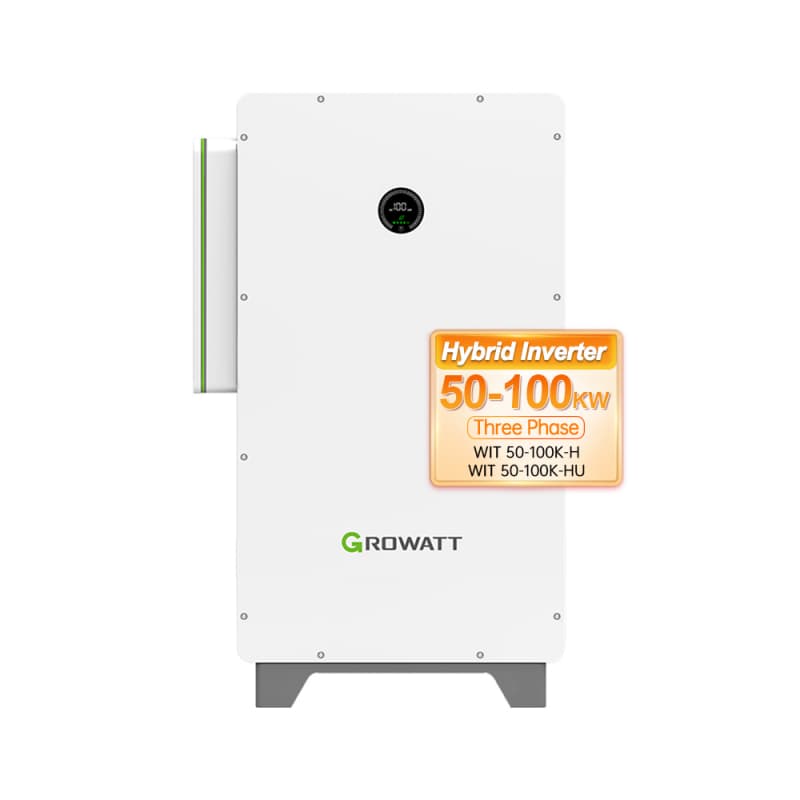

WIT 50-100K-H, WIT 50-100K-HUOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
according to inverter powerProduct Introduction
Inverter Parameters
|
Datasheet
|
WIT 50K-H
WIT 50K-HU
|
WIT 63K-H
WIT 63K-HU
|
WIT 75K-H
WIT 75K-HU
|
WIT 100K-H
WIT 100K-HU
|
|
Max. recommended PV power(for module STC)
|
109.2kW
|
124.8kW
|
156kW
|
156kW |
|
Start voltage
|
195V
|
|||
|
Max. input voltage
|
1100V
|
|||
|
Max. open circuit voltage of PV* 1
|
1000V
|
|||
|
MPPT nominal voltage/range
|
550V,180V~800V
|
|||
|
Max. input current per MPP tracker
|
32A
|
|||
|
Max. short-circuit current per MPP tracker
|
40A
|
|||
|
No. of PV strings per MPP tracker
|
2
|
|||
|
No. of MPP trackers
|
7 | 8 | 10 | 10 |
|
Nominal AC voltage/range
|
380/400/415V,-15%~+10%
|
|||
|
Nominal AC grid frequency/range
|
50/60Hz,45-55Hz/55-65Hz
|
|||
|
Max. output current
|
83.3A
|
105A
|
125A
|
166.7A
|
|
Adjustable power factor
|
-1…+1
|
|||
|
AC grid connection type
|
3P3W+PE/3P4W+PE
|
|||
|
Battery voltage range
|
600-1000V (for 3P3W) / 680-1000V (for 3P4W) (>850V derating)
|
|||
|
Recommended battery voltage
|
768V
|
|||
|
Dimensions (W/H/D)
|
820/1350/510mm
|
|||
|
Weight
|
153kg
|
153kg
|
160kg
|
160kg
|
|
Operating temperature range
|
–30 °C~60 °C (> 50°C, derating）
|
|||
|
IP degree
|
IP66
|
|||

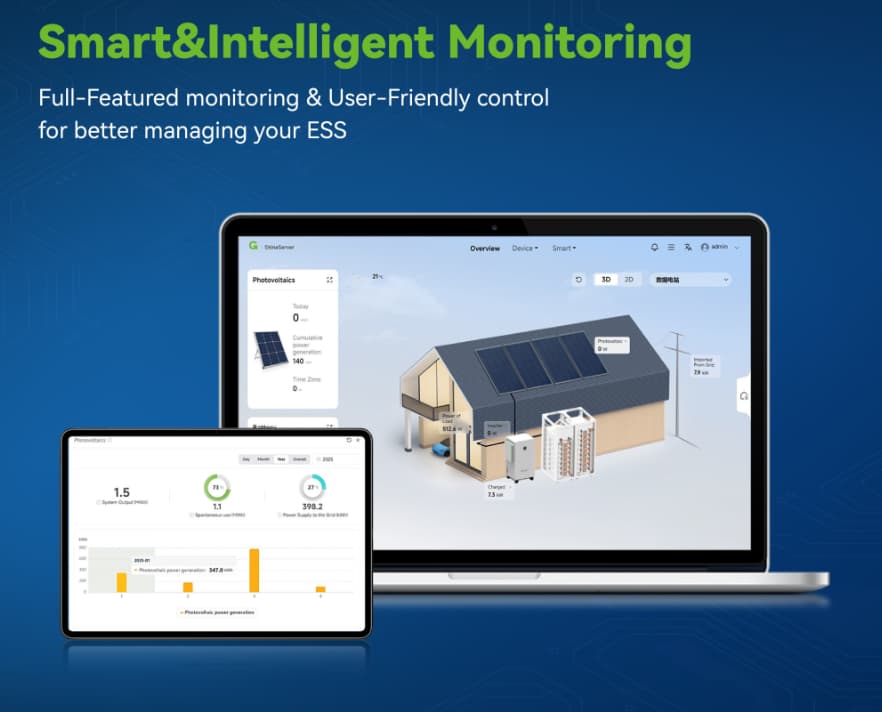

Monitoring

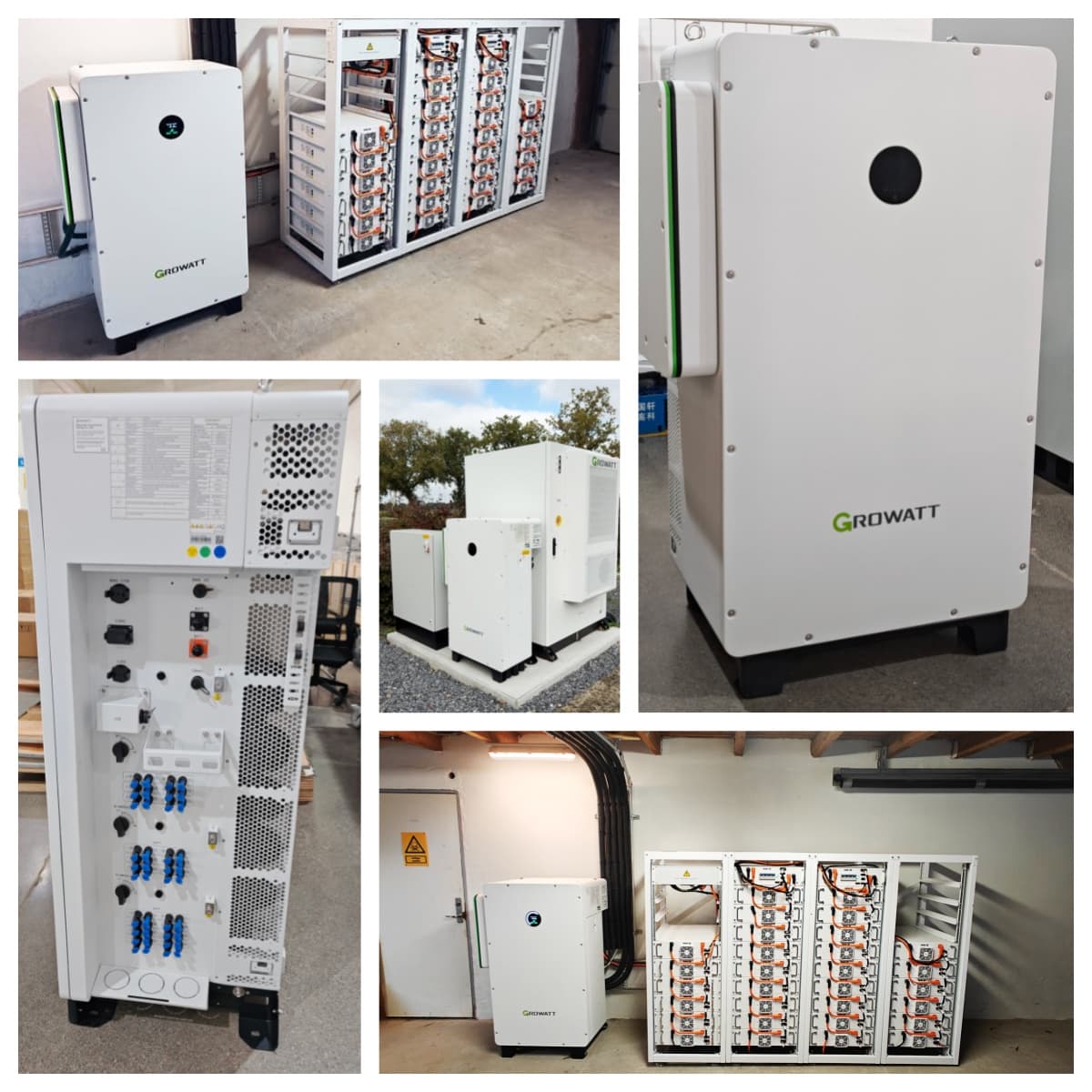

Products Display
