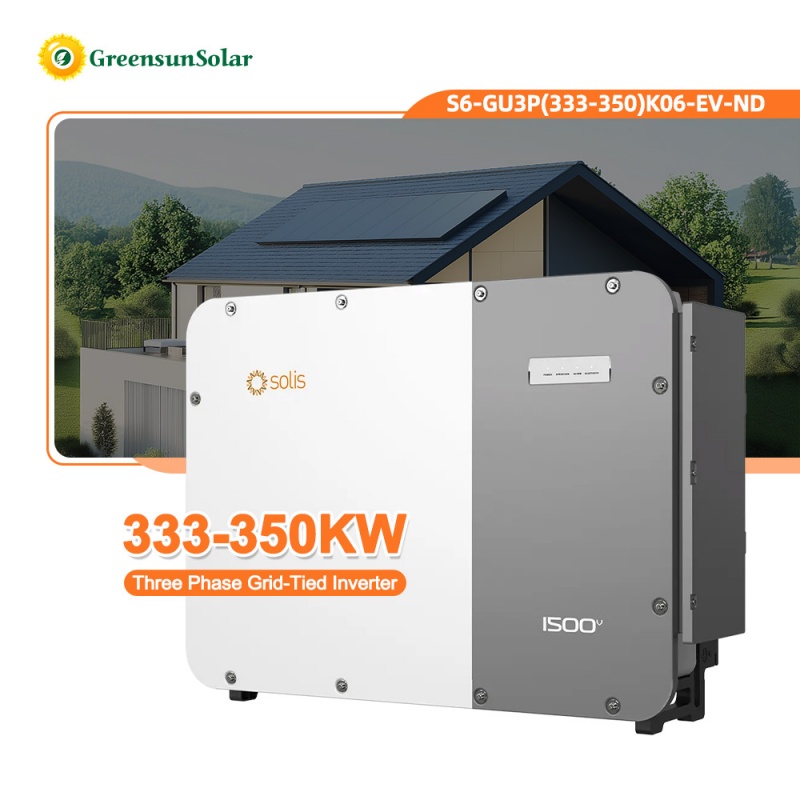

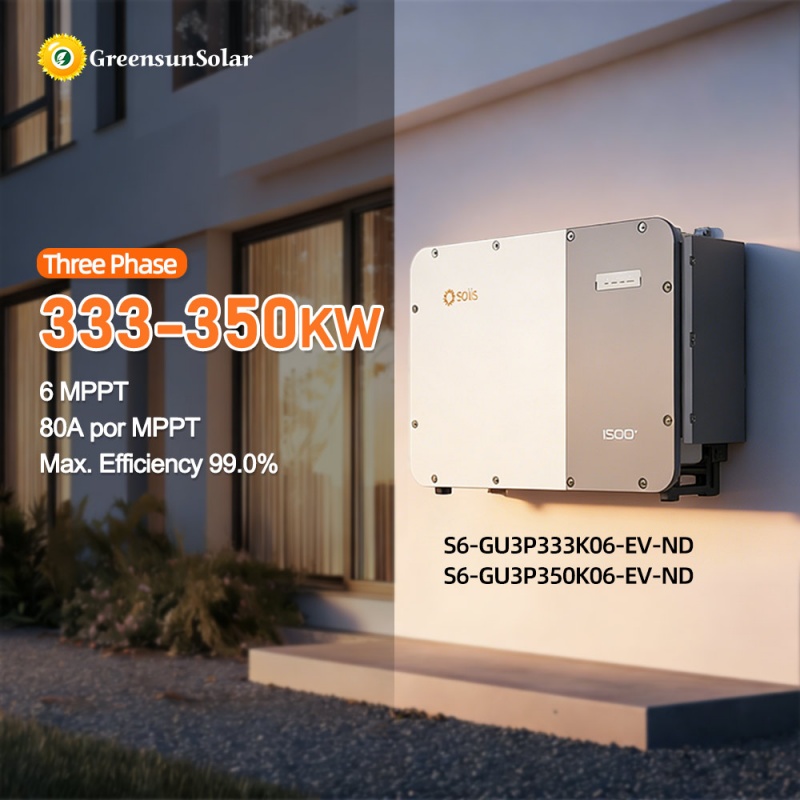

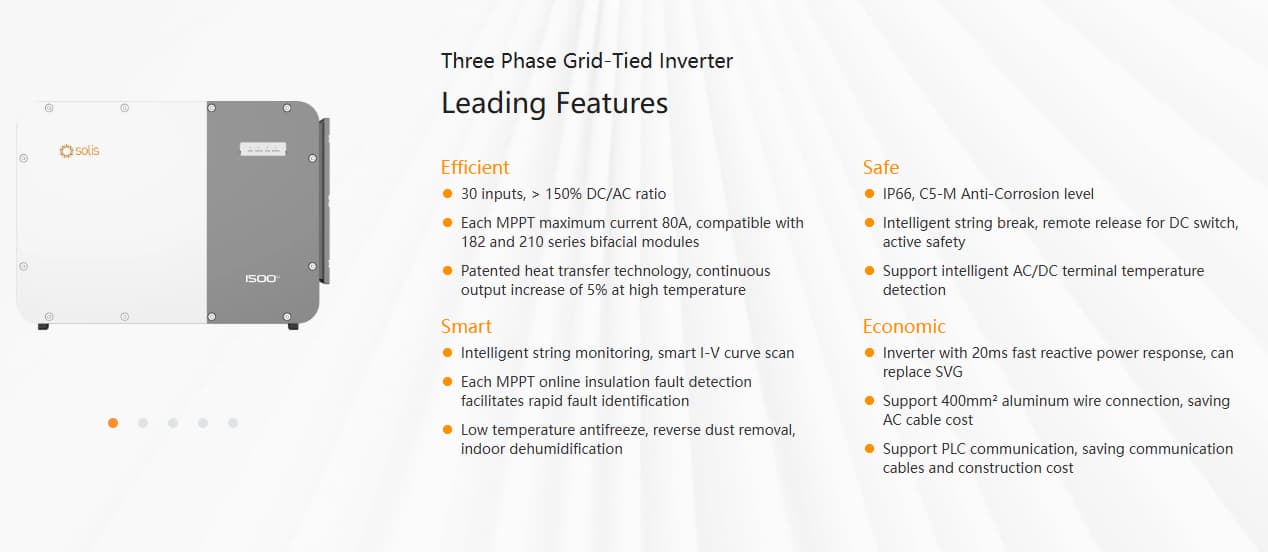

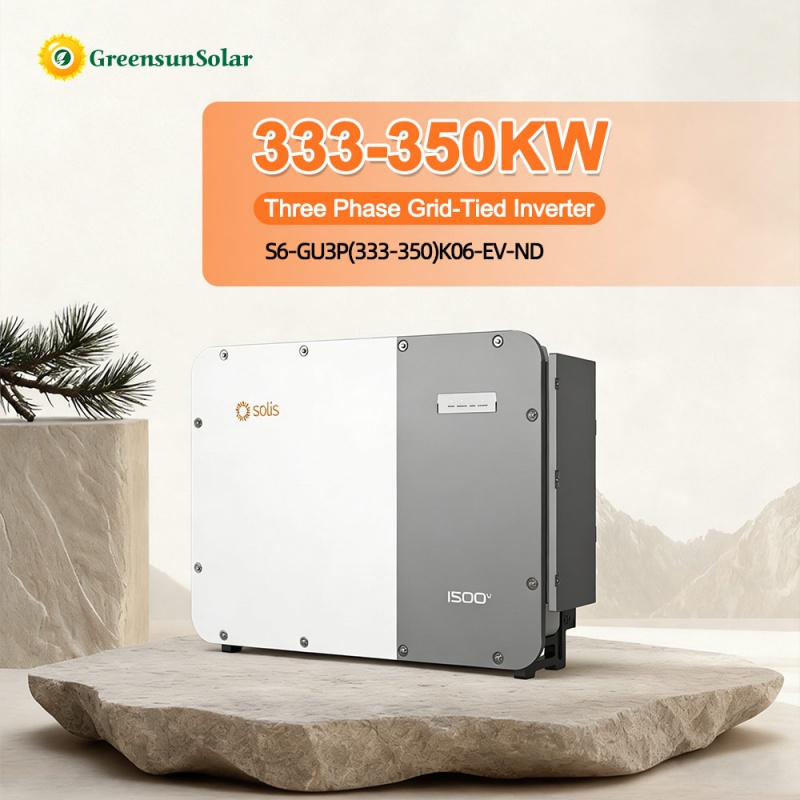

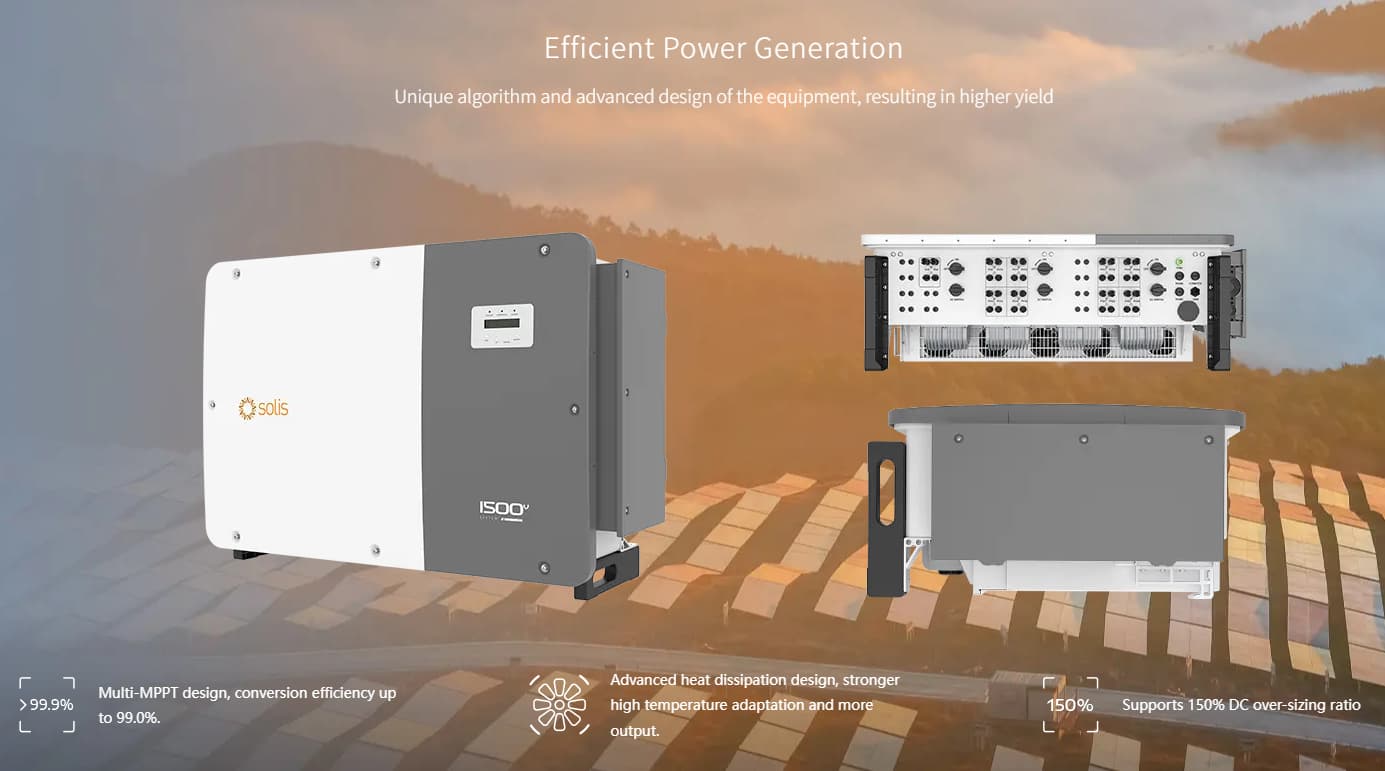

Solis S6-GU3P(333-350)K06-EV-ND three-phase PV inverters with a power of 333KW,350kW, 1500V DC input and 800 VAC output are designed to provide a more cost-effective adaptive solution for utility PV projects. It has maximum efficiency of up to 99%, with 6 MPPTs and 30 inputs, It also with additional safety technologies, including intelligent remote release functionality for DC switches, AC/DC terminal temperature detection,etc.. The system provides protection up to IP66 protection rating and C5-M corrosion resistance rating, making PV plant safer and more stable. Even at an ambient temperature of 51°C, it can maintain 86%Pn output power, thereby achieving higher power generation.
Item No :
S6-GU3P(333-350)K06-EV-NDOrder(MOQ) :
NegotiablePayment :
T/T, etcProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, ShenzhenLead Time :
5-15 DaysWeight :
117KGProduct Introduction
Inverter Parameters
| Models |
333K
|
350K
|
| Maximum input voltage |
1500 V
|
|
| Nominal voltage |
1080 V
|
|
| Starting voltage |
500 V
|
|
| MPPT voltage range |
480 - 1500 V
|
|
| Maximum input current |
6 × 80 A
|
|
| Maximum short-circuit current |
6 × 125 A
|
|
| Number of MPPTs / Maximum number of input strings |
6 / 30
|
|
| Nominal output power |
333 kW
|
350 kW
|
| Maximum apparent output power |
333 kVA
|
350 kVA
|
| Nominal grid voltage |
3/PE, 800 V
|
|
| Grid voltage range |
640 - 920 V
|
|
| Nominal grid frequency |
50 Hz / 60 Hz
|
|
| Maximum output current |
240.3 A
|
252.6 A
|
| Power factor |
> 0.99 (0.8 en adelante a 0.8 en atraso)
|
|
| Maximum efficiency |
99.0%
|
|
| EU Efficiency |
98.7%
|
|
| DC reverse polarity protection | Yes | |
| Short circuit protection | Yes | |
| Output overcurrent protection | Yes | |
| Surge protection | Yes | |
| Network monitoring | Yes | |
| Anti-island detection | Yes | |
| Temperature protection | Yes | |
| Chain monitoring | Yes | |
| I/V curve scanning | Yes | |
| SVG Night Function | Yes | |
| Integrated PID recovery | Yes | |
| Integrated DC switch | Yes | |
| Dimensions (length × height × width) |
1098 × 813 × 378.5 mm
|
|
| Weight |
117 kg
|
|
| Level of protection |
IP66
|
|
| Grid connection standard |
EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019
|
|
| Safety Standard / EMC |
IEC62109-1/-2, EN61000-6-2/-4
|
|

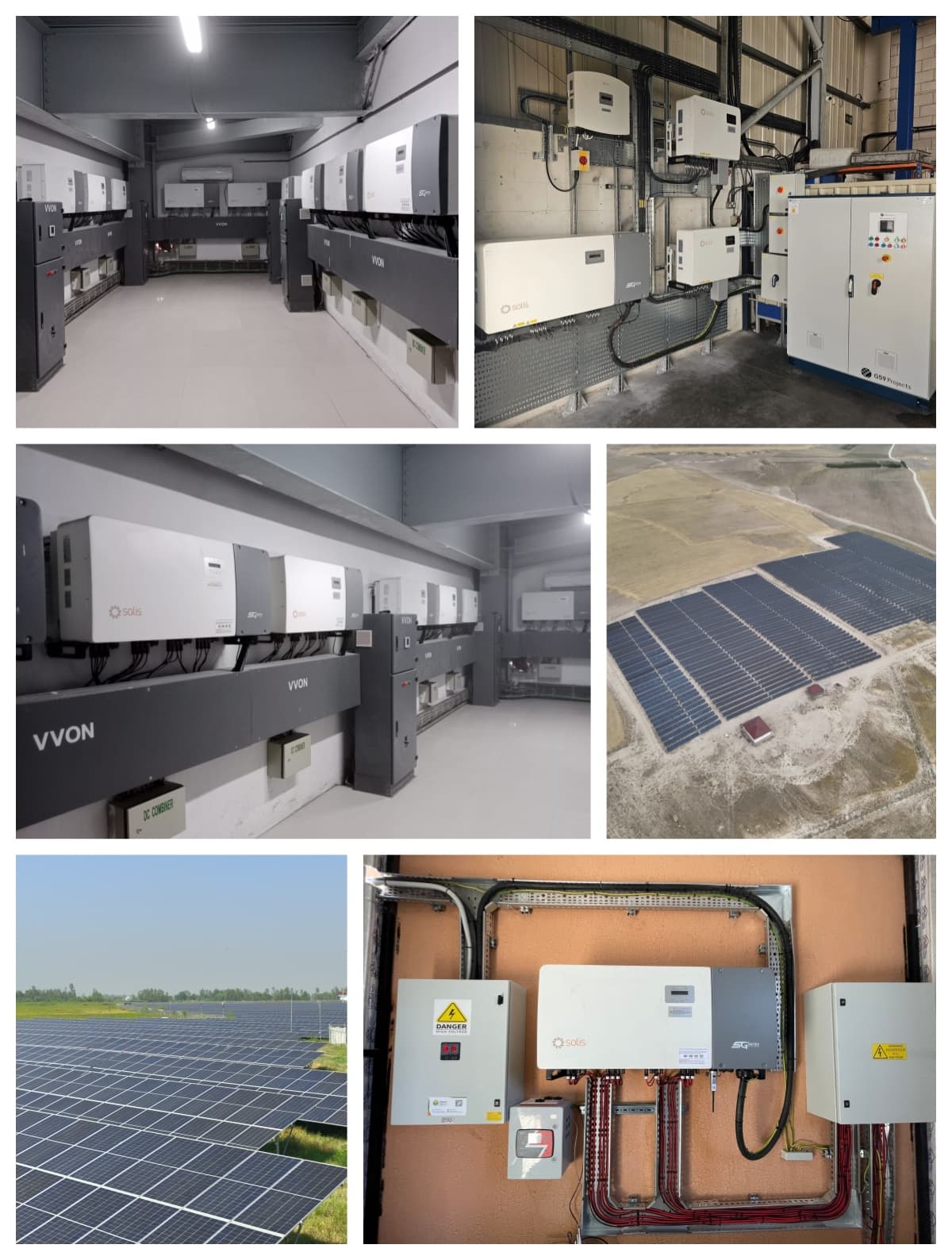

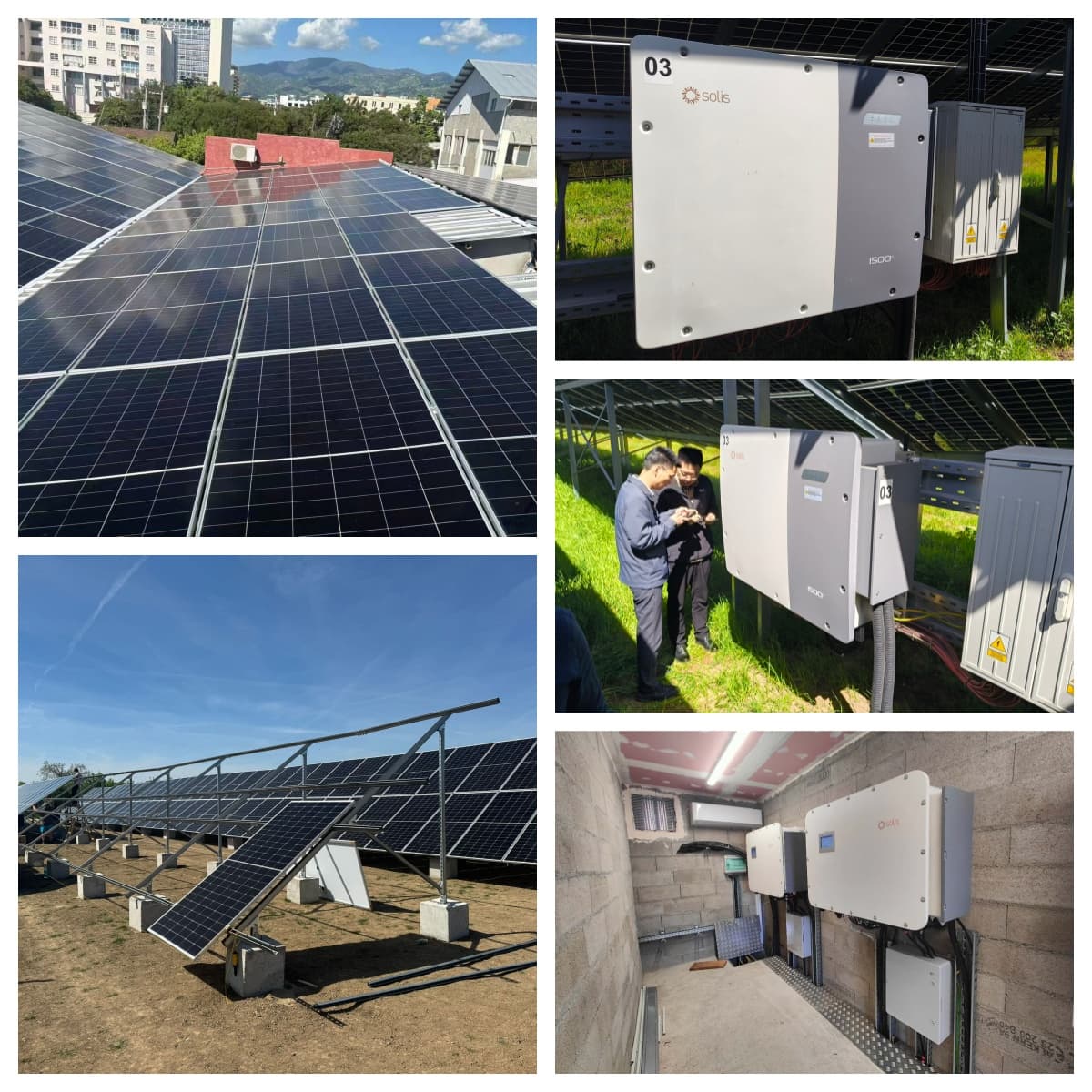

Products&Case
